Team Associated RC10TC6.1 Factory Team Kit

The RC10TC6.1 Factory Team kit is the next evolutionary step in touring car design from Team Associated. Building on the successfully proven TC6, the designers behind the doors of Area 51 added even more features, making the TC6.1 easier to tune and drive.

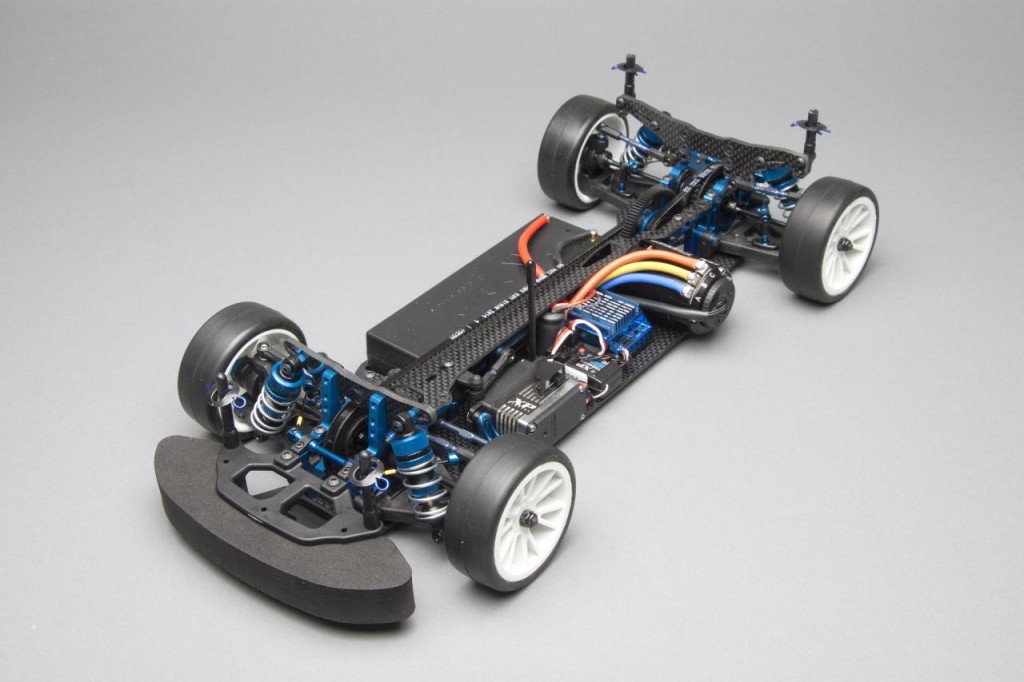

The TC6.1 narrow chassis has been designed around current brushless motor systems and LiPo batteries, optimizing weight distribution for superior handling. To further enhance handling performance, the TC6.1 has received updated suspension arms for increased stiffness and strength. These new suspension arms feature finer shock adjustments to help get the TC6.1 totally dialed in.

New caster blocks and rear hubs found in the TC6.1 feature integrated inserts for caster and rear-toe angle adjustments. Now you can change these angles by merely changing the inserts and not the whole assemblies, making the TC6.1 even quicker and easier to tune to the track conditions.

The TC6.1 features the new H.D.R.C. (High Definition Roll Control) system, taking anti-roll bar technology to the next level. The H.D.R.C. is built on a solid aluminum center member that rolls on a bearing surface. Roll stiffness is controlled and adjusted by the two wires that mount into the sides of the aluminum center member and link to the suspension arms. By removing the torsional flex with the aluminum center member, a higher definition of roll control is achieved with the different wire options.

New for the TC6.1 is the lightweight rear gear differential that provides maximum performance and low maintenance. The front spool now features replaceable composite outdrives that still retain the low friction, free movement performance of the CVA blades, while being much more economical to replace after a hard impact. Symmetrical blue aluminum bulkheads and cross-compatibility with TC6 chassis components also help make the TC6.1 more economical to run.

The TC6.1 comes equipped with the Factory Team VCS3 shock package that features hard-anodized threaded shock bodies with bottom-loaded seals. The VCS3 shocks are super smooth and have an increased stroke for more up-travel at the wheels, all adding up to more consistent overall traction.

Multi-position steering system with additional Ackermann options and an improved steering input rate gives the TC6.1 more consistent handling. Blue titanium turnbuckles come with new ballcup eyelets for easier access to the ball studs.

Check out Team Associated for more details on this exciting new kit.
