Team Novak Oval Spec 1S ESC

Team Novak Oval Spec 1S ESC

January 11th, 2012

Matt

Here’s a new one for you oval boys out there.

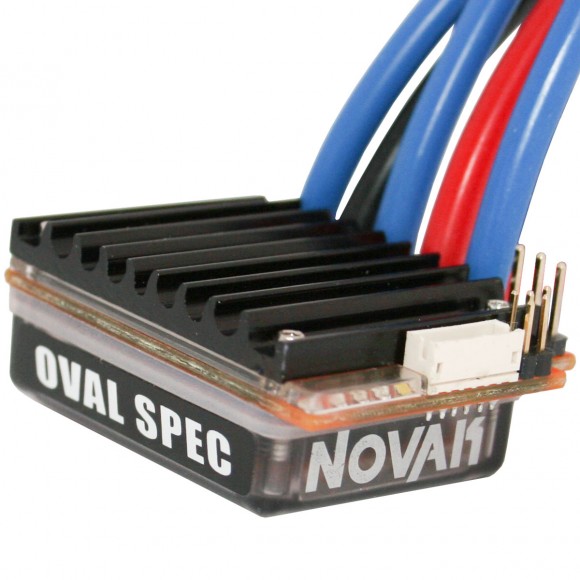

Team Novak has announced the Oval Spec 1S ESC. Like it’s name suggests, this ESC is designed for 1S Oval racing. Novak has incorporated their new X-Drive technology into this ESC. X-Drive is designed to improve throttle response and feel, as well as operational efficiency. In typical Novak fashion, you use the LEDs on the speed control to adjust the various settings.

The Oval Spec 1S ESC also features new firmware from Team Novak. It has settings specifically geared towards “open” esc oval racing.

Timing Amount	15 settings	This setting allows control over how much Dynamic Timing Advance the ESC applies to the motor. There are 15 factory settings (in precise 1-degree increments) including an OFF setting position for no-timing spec racing (“blinky” mode).
Start RPM	10 settings	This feature allows control over the RPM the motor must reach before the Dynamic Timing Advance “kicks in”.
Final/End RPM	10 settings	Allows selection of the top RPM at which the Dynamic Timing will be applied.
Drive Frequency	10 settings	Ten settings to adjust the drive frequency for the perfect throttle response and feel. Adjustable from ultra smooth to aggressive.
Minimum Drive	10 setting	Provides fine-tuning of minimum motor RPM which is generally needed on high-traction applications where hard-starts are needed.
Dead Band	5 settings	Adjusts the neutral point sensitivity; allows for fine-tuning throttle input sensitivity.

Here are the Oval Spec 1S ESC’s features and specs from the Novak website

OVAL SPEC 1S ESC FEATURES
	Designed specifically for the extremely high demands of Oval 1S racing
	Sensor-based ESC for excellent torque and low-speed driveability
	Six adjustable parameters to maximize performance on oval tracks: Timing Amount (15 settings), Start RPM (10 settings), Final/End RPM (10 settings), Drive Frequency (10 settings), Minimum Drive (10 settings), and Dead Band (5 settings)
	Enhanced timing algorithm that significantly reduces the motor’s magnetic fade over the duration of the run
	Novak X-Drive™ provides enhanced throttle response, ultra smooth power delivery, higher top speeds, and cooler operating temperatures
	Novak’s One-Touch Set-Up™ for quick and easy transmitter set-up
	Water-resistant case with protective silicone gasket seal to help keep out the elements
	Designed to meet ROAR Sportsman Class Racing specifications; includes blinking white LED for non-timing racing events
	On-board diagnostic temperature monitoring that lets you quickly check the ESC’s temperature at any time
	Thermal overload protection circuitry to protect from overheating
	On-board Hall Sensor Test to easily and quickly verify that the motor’s sensors are working properly
	Gold-plated direct-solder wiring tabs for flexible soldering options
	User-replaceable input and switch harnesses
	Carries Team Novak’s commitment to excellent quality, support and warranty (120 days)
	Designed and manufactured by Team Novak in Irvine, California using the best components from around the globe. All ESCs are 100% tested to ensure your product works right out of the box and on the track!

OVAL SPEC 1S ESC SPECIFICATIONS
	Motor Type: Sensored Brushless
	Fwd/Brk: F / B (no reverse)
	Input Cells: 1S LiPo
	Size 1.16” x 1.47” x 0.70” (29.5 x 37.3 x 17.8mm)
	Height #1748: 0.70” (17.8mm); #1749: 0.97” (24.6mm)
	Weight (w/o wires) 1.15 oz. (32.6 g)
	On-Resistance: 0.00040 ohms @ 25°C trans. temp.
	Motor Compatibility: 4.5 -turn or higher 540-size sensored brushless motor
	Wire Size: 12G Super-Flex Copper-Strand Silicone Wire
