Team Losi Racing announces the 22SCT Kit!!!

Team Losi Racing has been teasing an announcement for a few weeks now, and I’m happy to report we now know what they’ve been working on. This is the TLR 22SCT!



Key Features

  • All metric hardware
  • Extensive instruction manual and build guide
  • Full ball bearings including steering

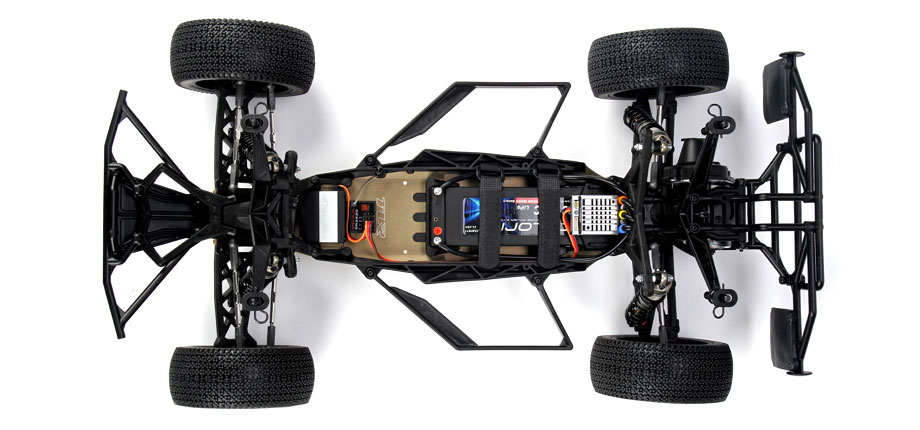

  • All the components included to complete the vehicle to either rear-motor or mid-motor
  • 7075-T6 Aluminum lightened hard anodized chassis

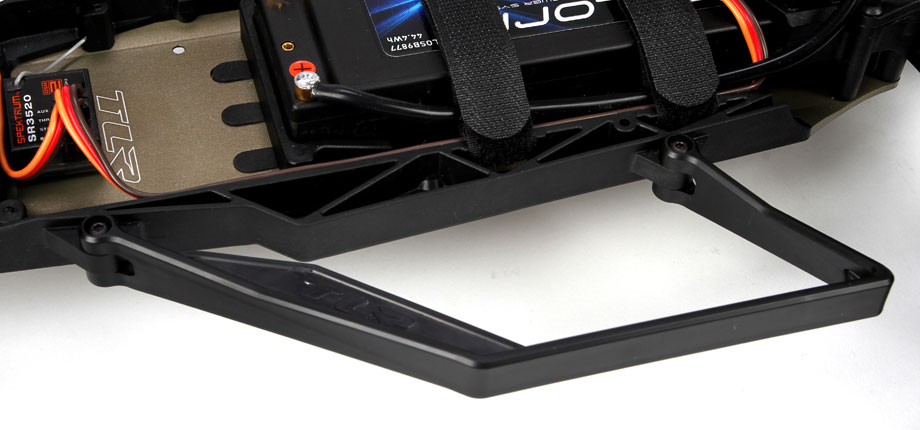

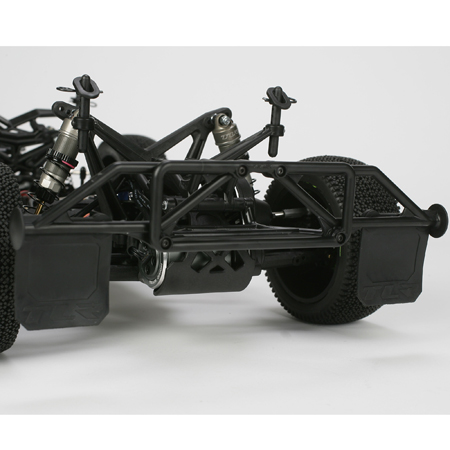

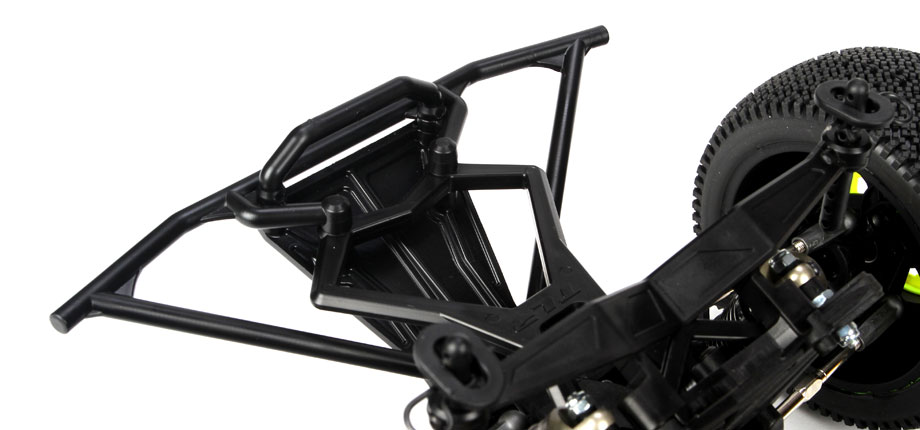

  • Changeable dirt guards with Short Course body bumpers
  • Slide rack steering system with optimized steering Ackerman
  • Two battery mounting configurations to accommodate both motor placements
  • Hook and loop straps to secure batteries in all configurations

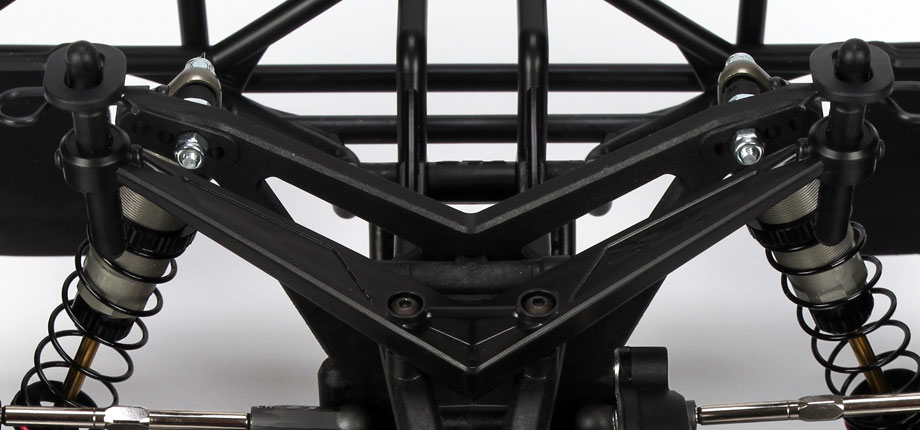

  • Optimized suspension package for superior handling
  • Gull wing designed front arms for lower front shock positioning to lower the center of gravity
  • Increased hinge pin offset from the rear arm to hub for increased rear traction
  • Front nose clearance has been maximized

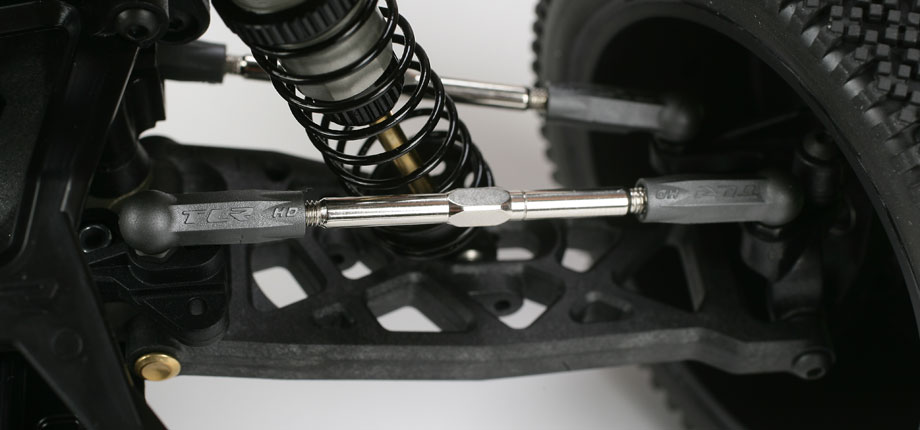

  • Heavy Duty 4.0mm Steel Turnbuckles with HD ball cups
  • Aluminum rear pivot that can be adjusted to support 1° of pro-squat to 3° of anti-squat. Rear pivot can accommodate 3°, 3.5°, 4°, 4.5°, and 5° of toe-in for various track conditions
  • Front plastic pivot with 30 degrees of front kick
  • Titanium Nitride coated hinge pins
  • 4mm trailing axle spindles
  • Dual Disk Slipper
  • Steel RCD drive shafts
  • Ball Differential with optimized ball pattern

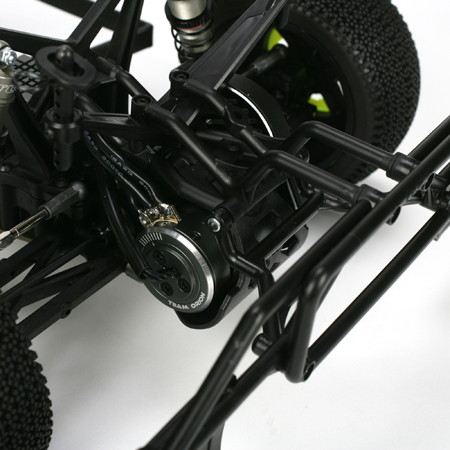

  • Motor centered in transmission for balanced handling
  • Molded Gear Cover with attached rubber plug
  • Improved hub and spindle bearings

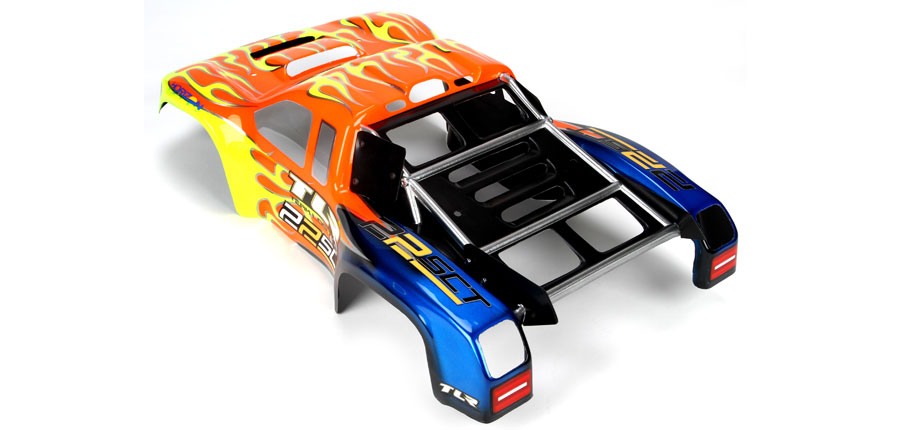

  • High Performance SCT body

The 1/10-scale 22SCT Short Course Truck Kit is the first short course offering from Team Losi Racing and is based on the ROAR National Champion 22 buggy. The 22SCT will be the most innovative, durable and competitive short course truck ever engineered since it is based on the 22 platform and designed from the ground up to be a dominating competitor.

Nothing beats experience. Especially when it comes to engineering a performance-driven race machine like the 22™ SCT. To create it, TLR engineers used all the knowledge and experience they gained from making the revolutionary 1/10-scale 22 buggy. They built on the championship-winning 22 platform and took it to the next level. And now the 22 SCT is the most innovative, durable and competitive short course truck ever designed.

Designed to be a champion, the 22SCT borrows the majority of the innovative features that make the 22 platform a contender. Right from the start the ability to choose either mid or rear motor completion is unlike any other SCT on the market. This will allow for SCT drivers to tune the ride they want depending on the track style and surface they are racing on. This will give the 22SCT a more global appeal for those individual currently running a mid-motor set-up as the driving characteristics are similar. Other key features include a 7075-T6 aluminum chassis, full ball bearing equipped, Heavy Duty 4mm turnbuckles, optimized motor and transmission placement, two full sets of tires (8 wheels total), dish inserts for the wheels and all metric hardware for ease of maintenance.

Product Specifications

Type: 2wd SCT Truck
Scale: 1/10
Length: 21.65 in. (500mm)
Width: 12.99 in. (330mm)
Height: 5.63 in. (143mm)
Wheelbase: 11.3-11.41 in. (286-290mm)
Weight: 66 oz. (1870g)
Chassis: Aluminum
Drivetrain: Rear Wheel Drive
Kit/RTR: Kit
Minimum Age Recommendation: 14 Years

Needed to Complete

– 2-Channel Radio and Receiver
– Electronic Speed Controller
– 540-Sized Motor
– Pinion Gear
– Steering Servo
– 1/10th 2WD SCT Tires and Inserts
– Battery Pack
– Charger
– Polycarbonate Paint

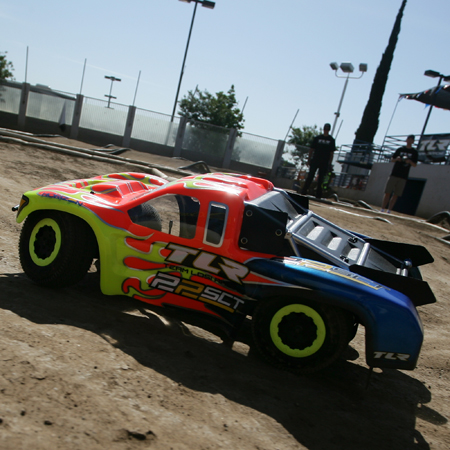

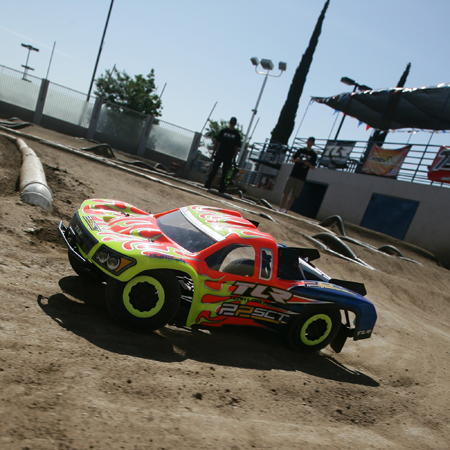

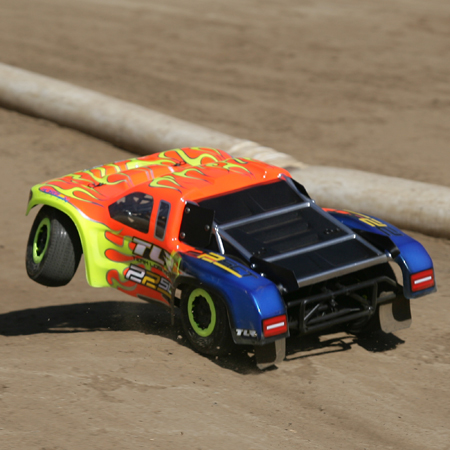

The truck is making it’s public debut this weekend at the Hotrod Hobbies Shootout, so I expect we’ll see a lot more about this truck this weekend. Stay tuned!

The UK arm of Horizon Hobbies put together this time lapse of them building the truck.
