Associated RC10 B5 Rear Motor Team Kit Build Up

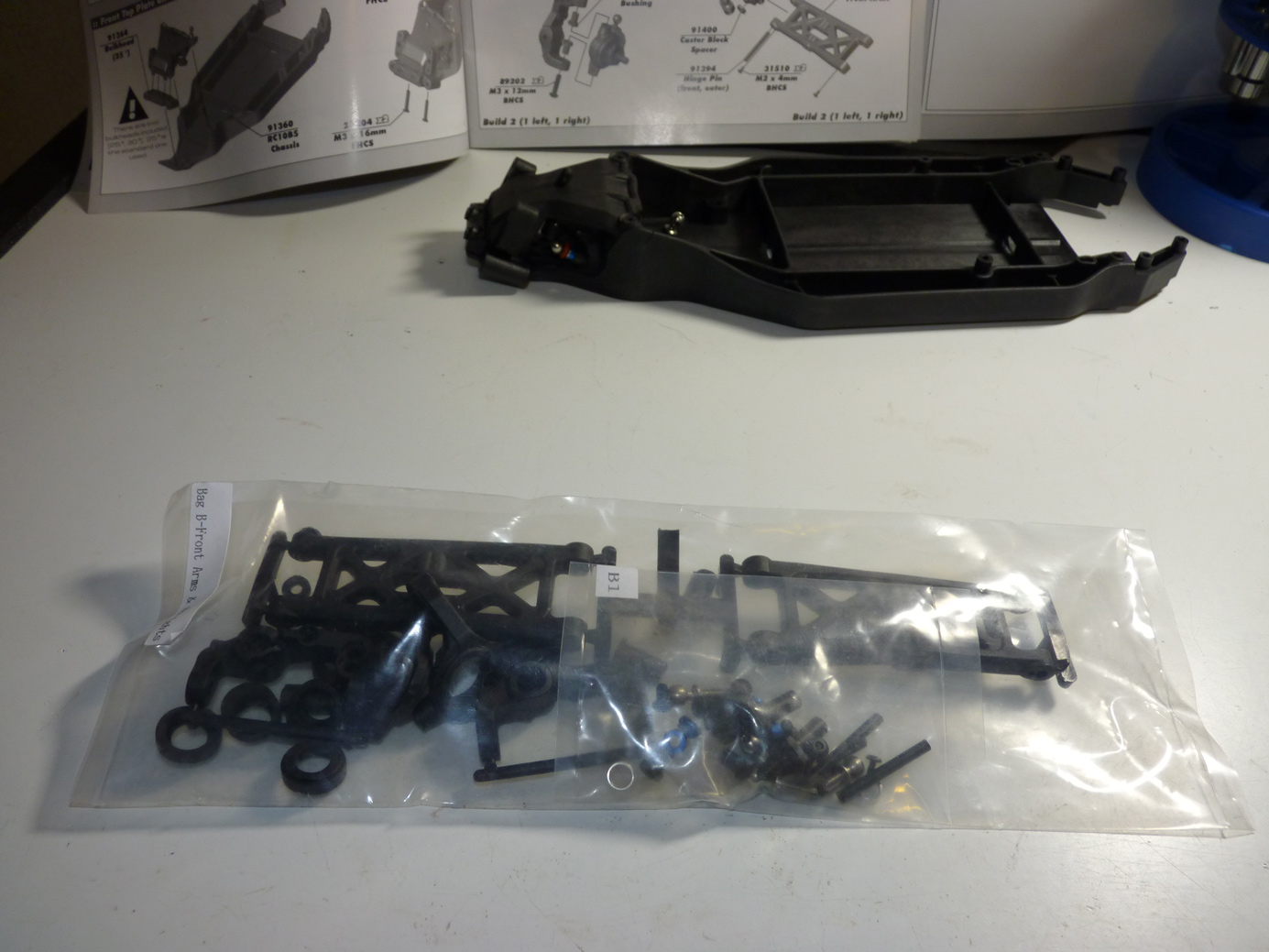

P1110331

Time for Bag B!

P1110332

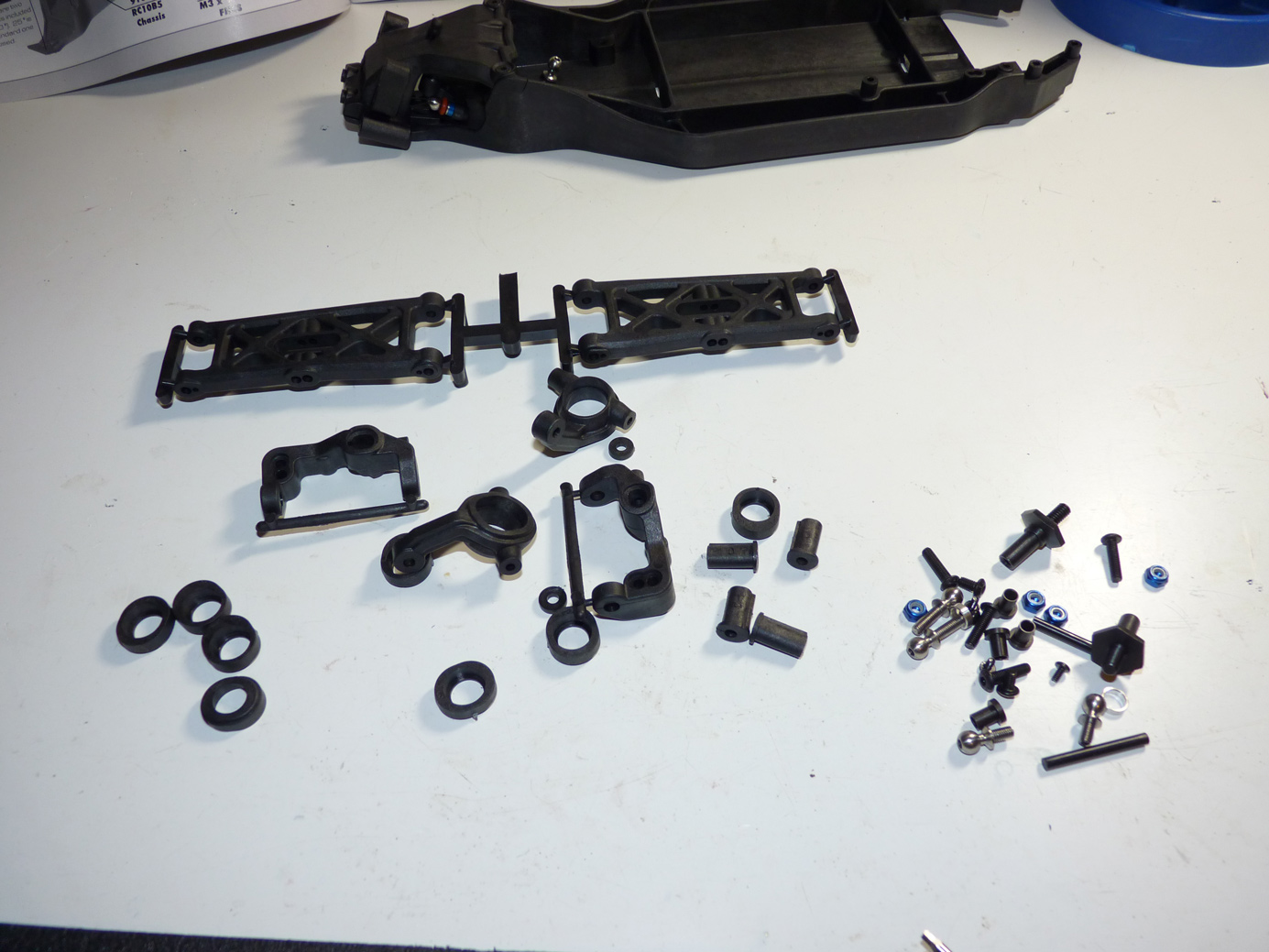

Front Arms and Uprights.

P1110333

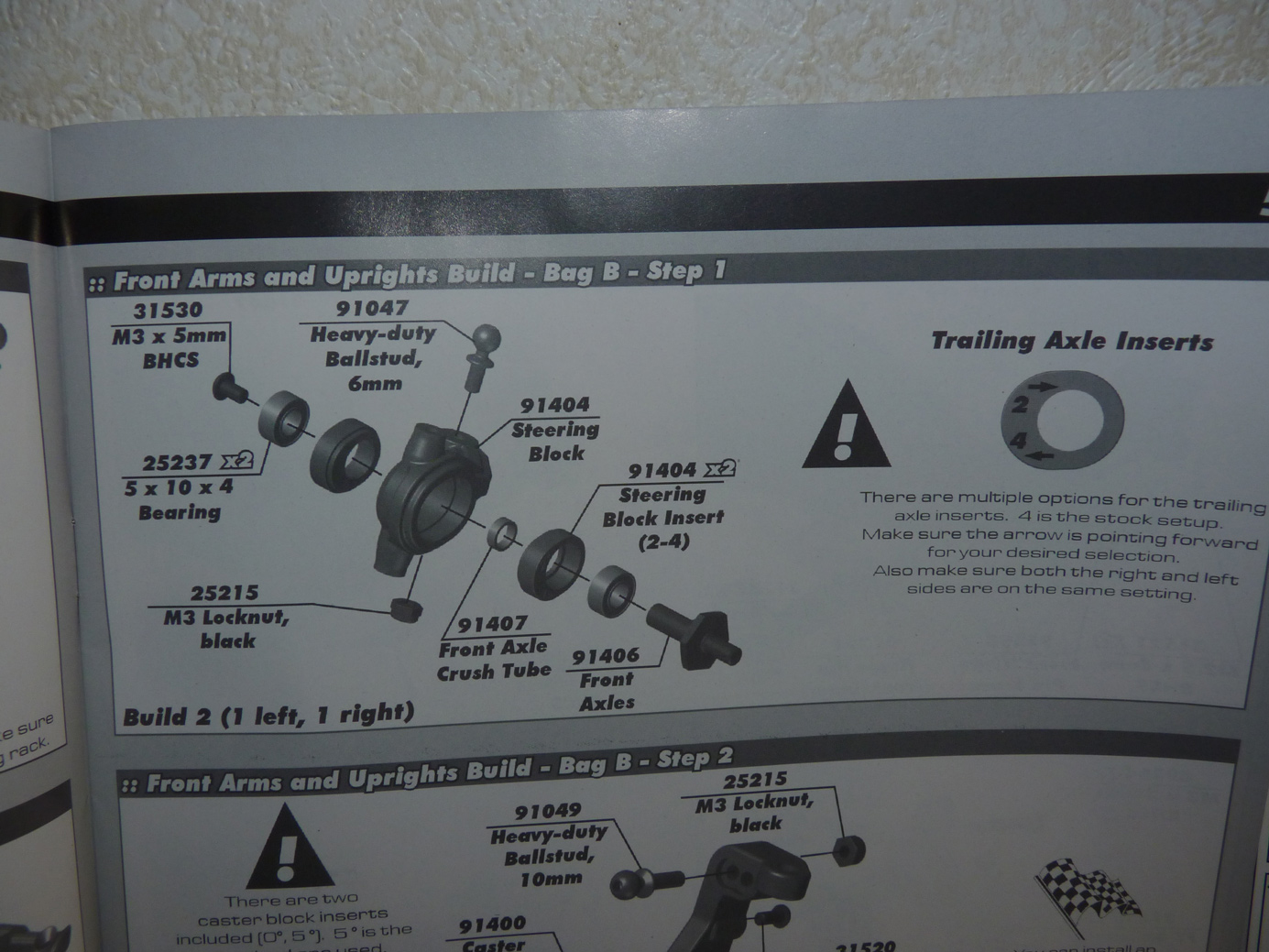

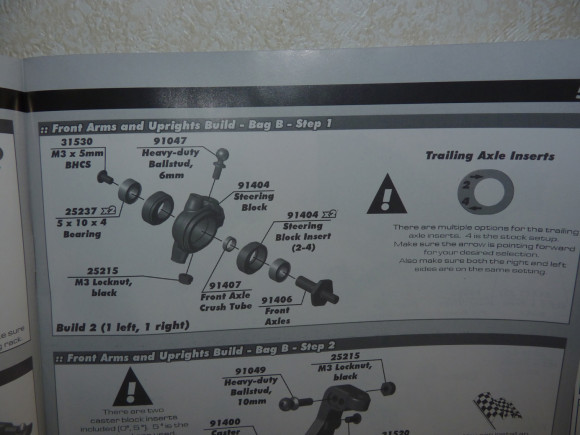

This is interesting.

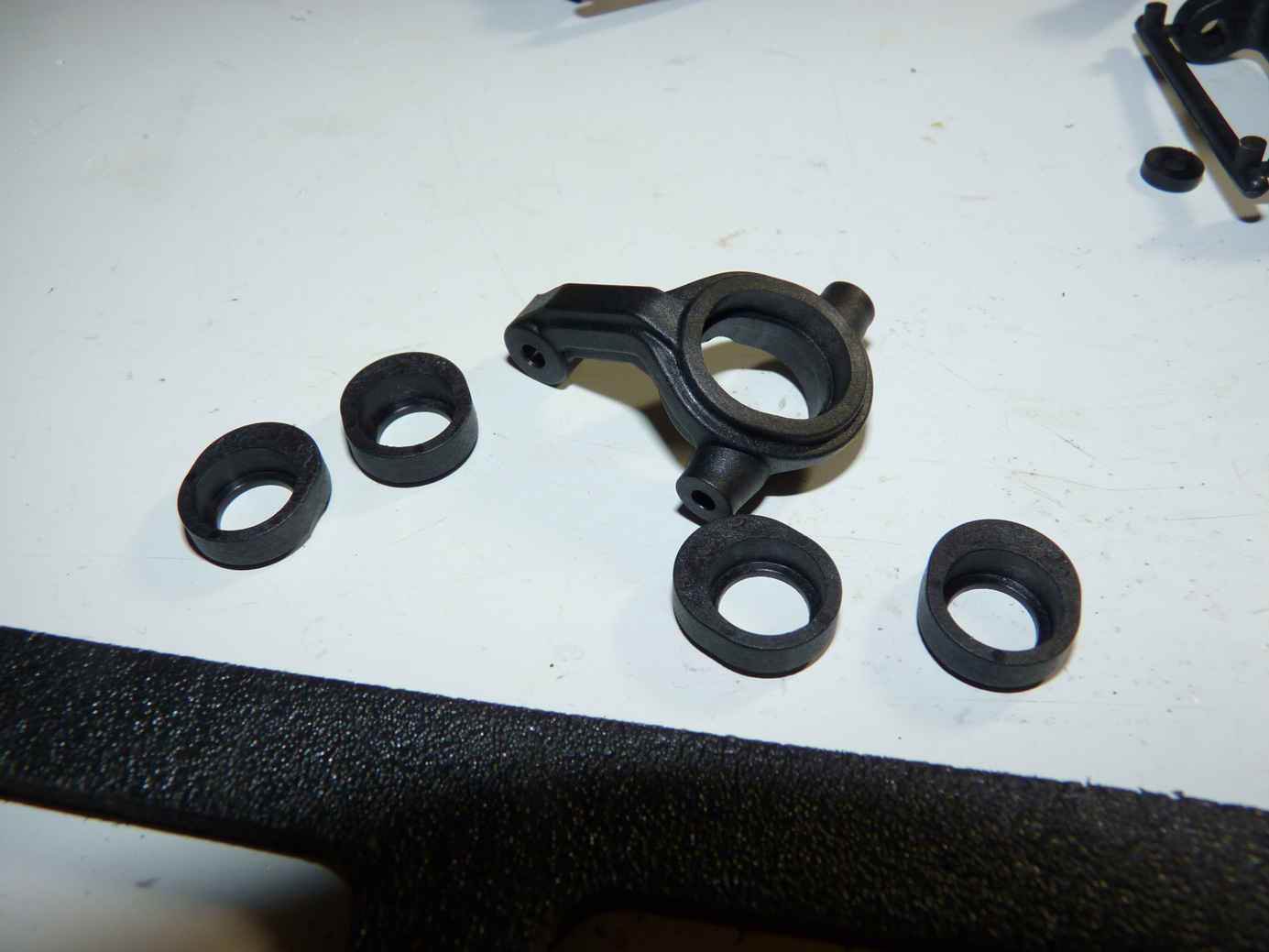

P1110334

There are multiple options for the trailing axle inserts. Option 4 is the stock setup. Make sure the arrow is pointing forward for your desired selection. Also make sure both the right and left sides are on the same setting.

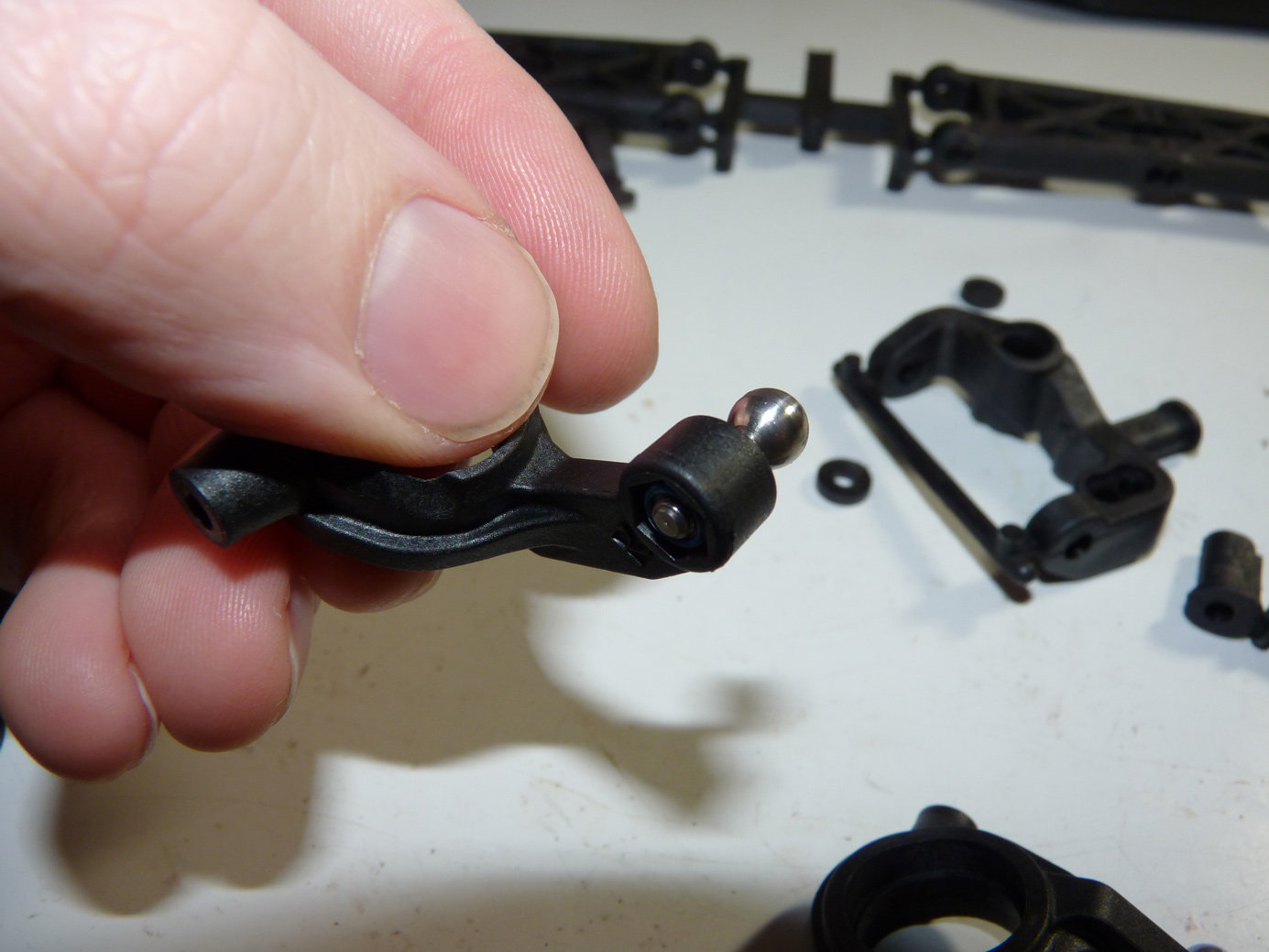

P1110335 P1110337

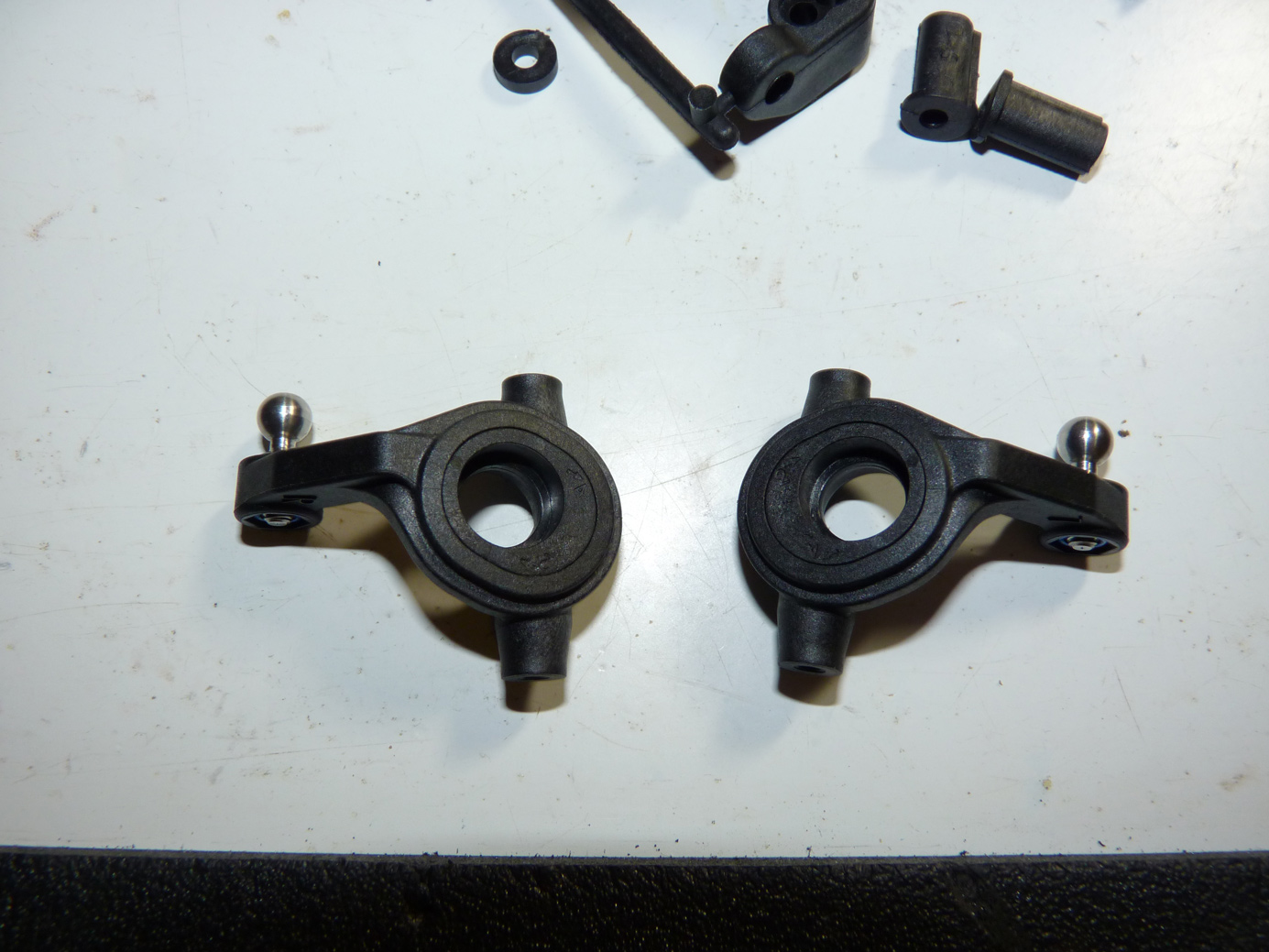

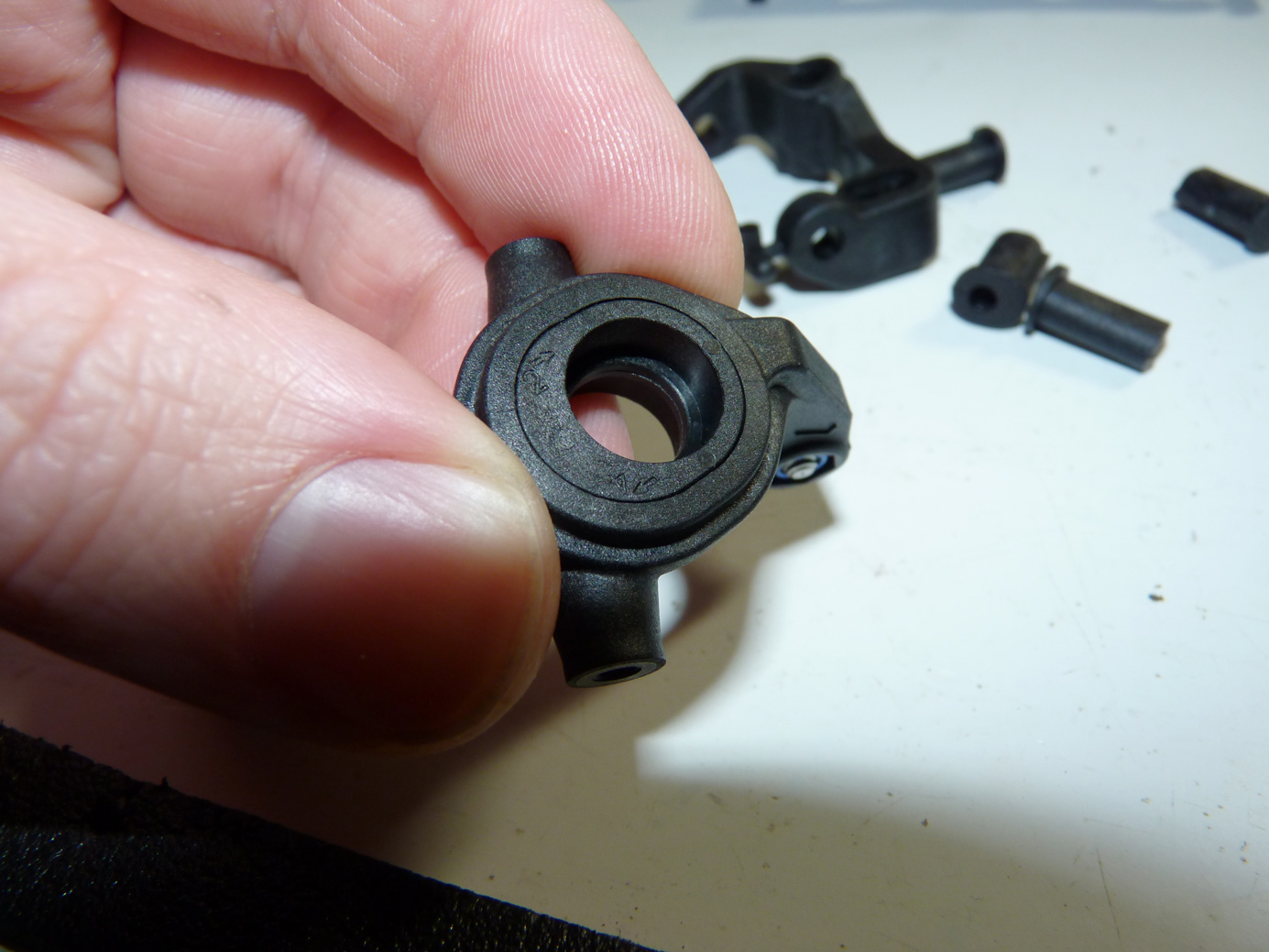

We insert the desired trailing axle inserts into the steering block.

P1110338

P1110339

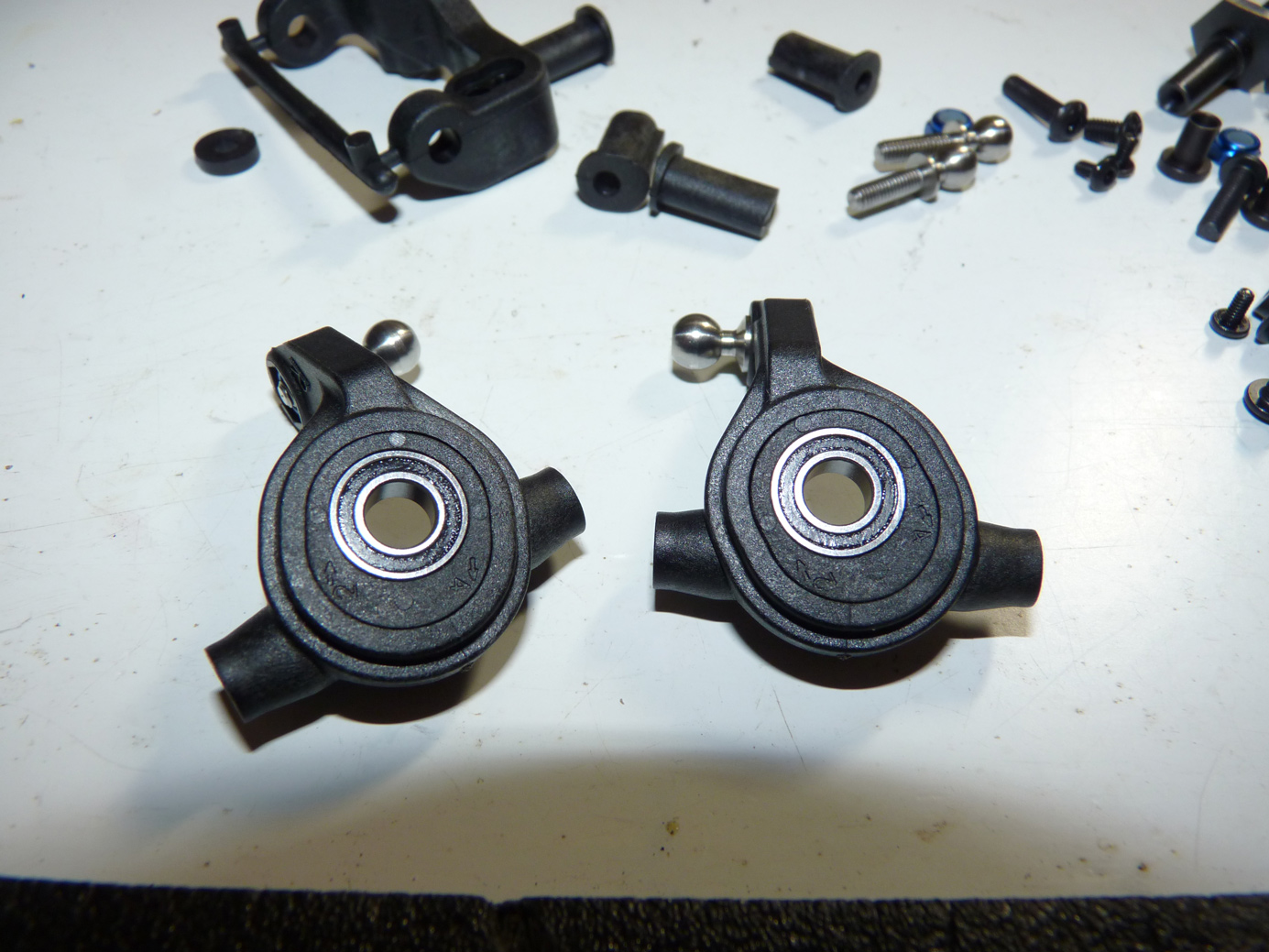

Then of course install those included bearings.

P1110342

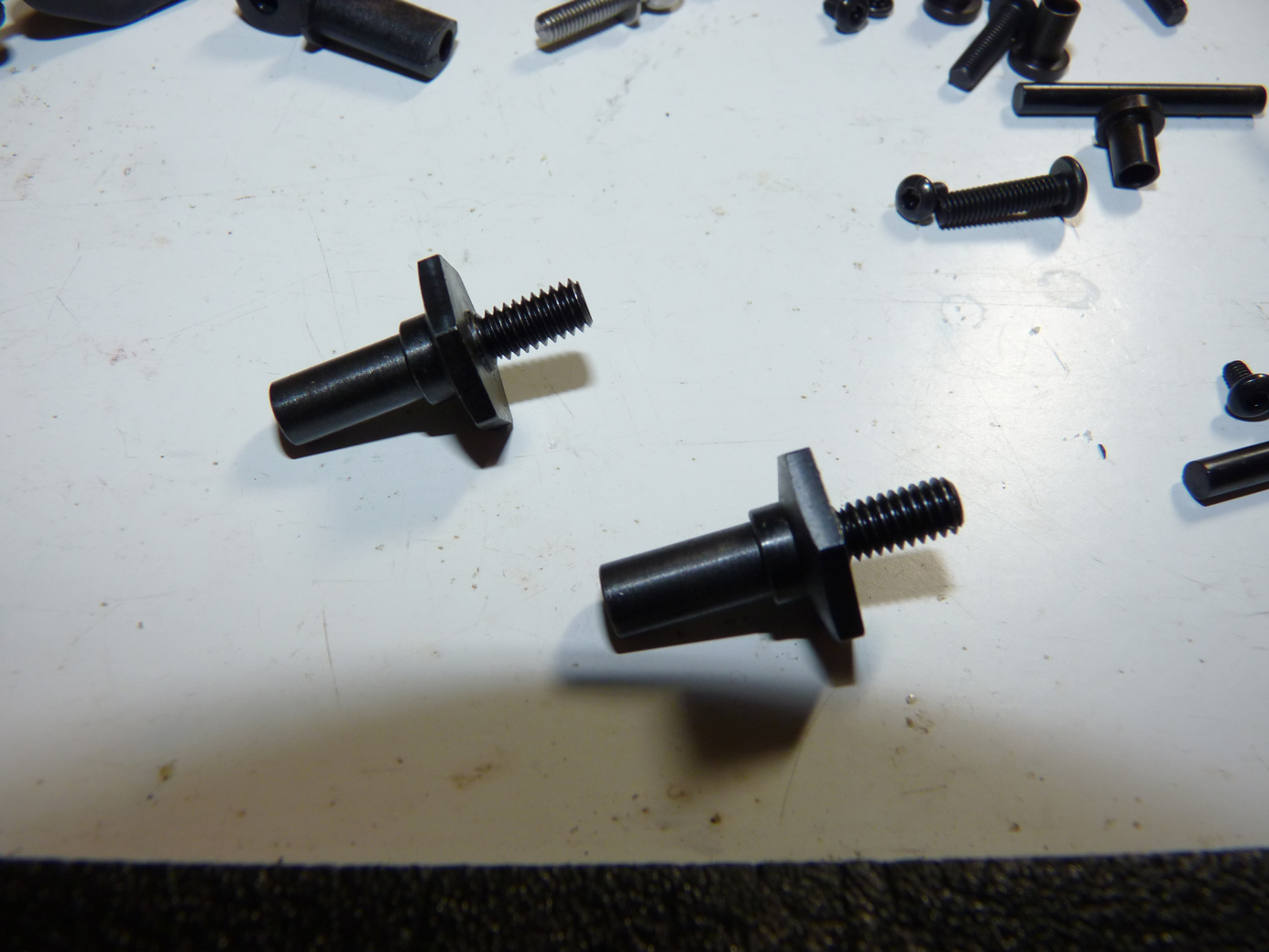

These are the front axles. It’s a pretty simple design. They slide through the steering block and are secured from the back with a button head screw.

P1110343

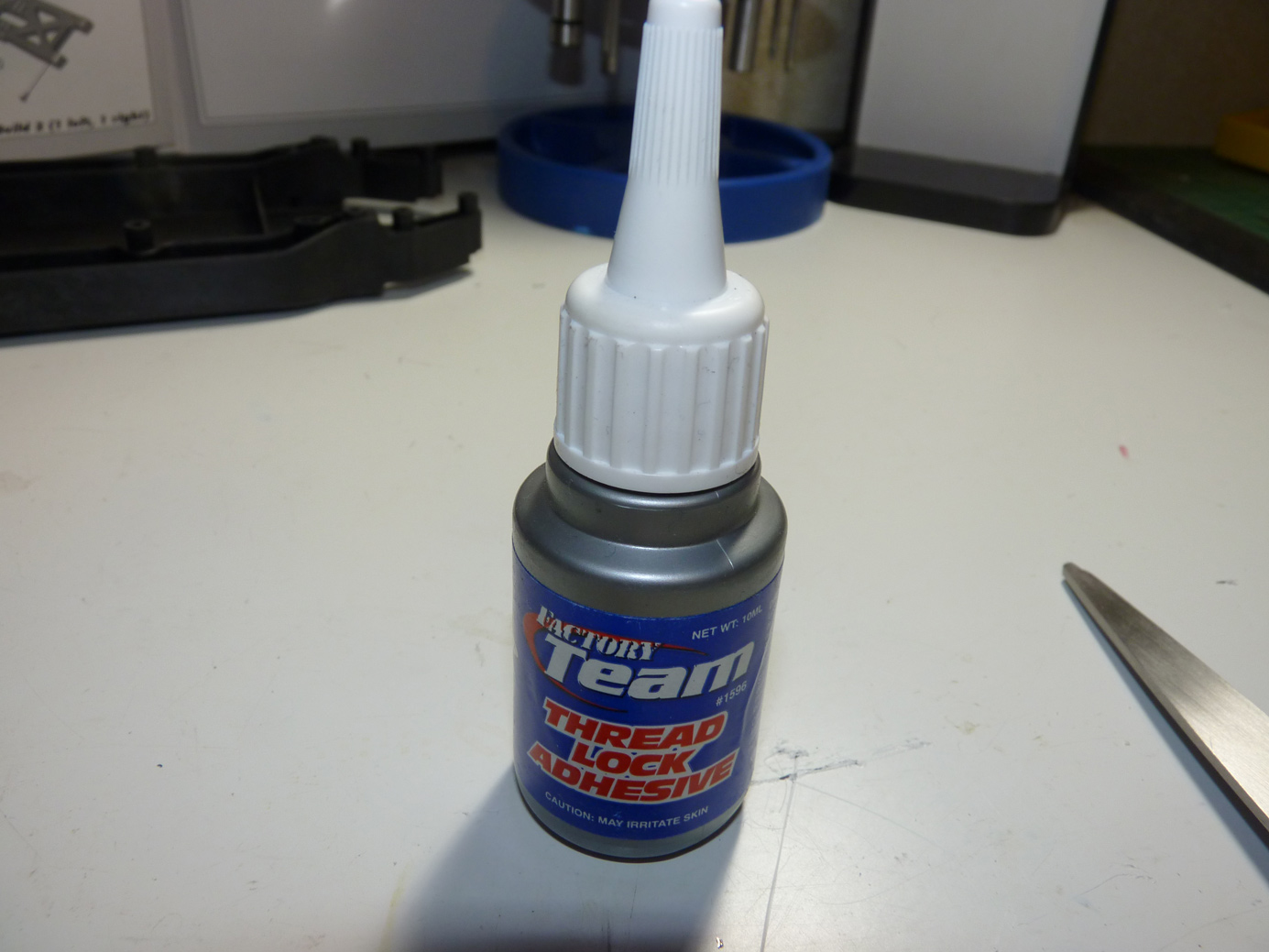

Use LOTS of this on the screw that holds that axle in unless you want to see your wheel and axle rolling down the straightaway at the track.

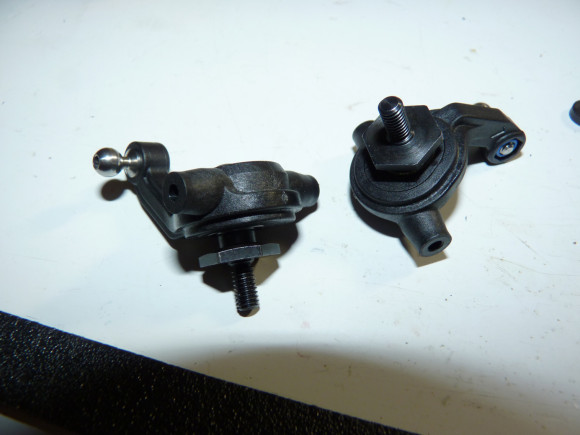

P1110344

Front axles done.

P1110346

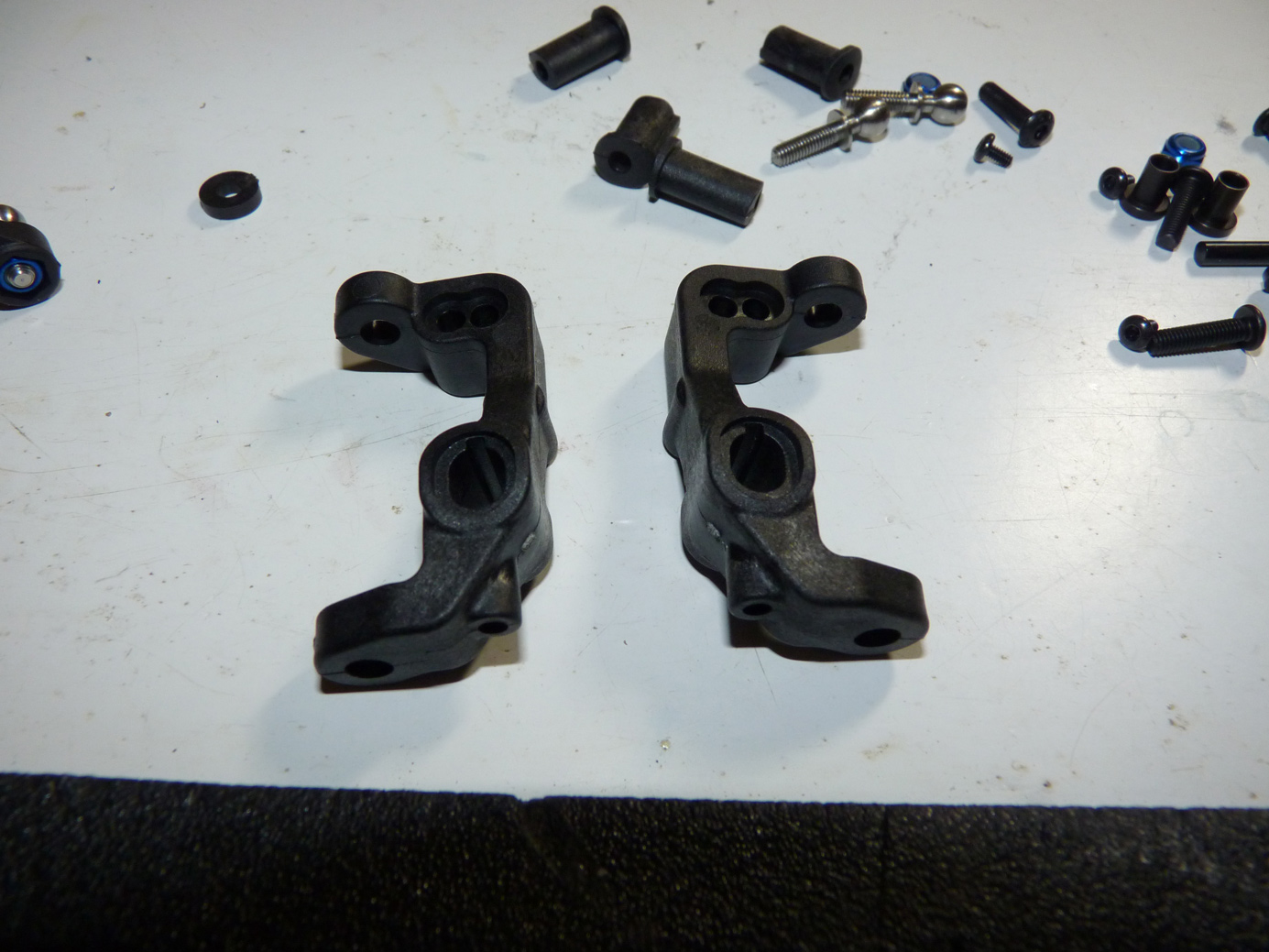

Now it’s time for the caster blocks.

P1110347

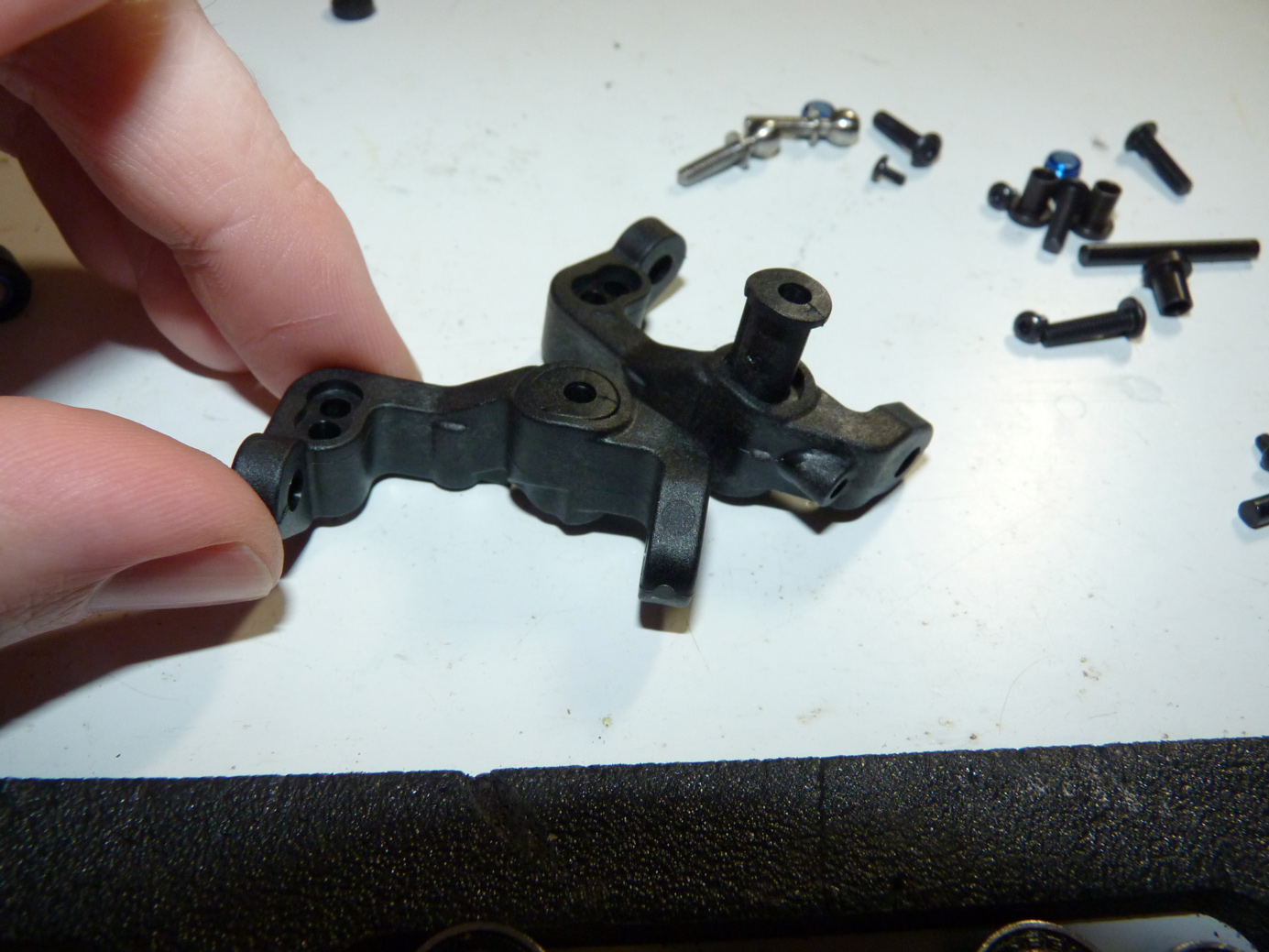

These have some built in as well. There are two caster block inserts included (0° , 5° ). The 5° is the standard ones used.

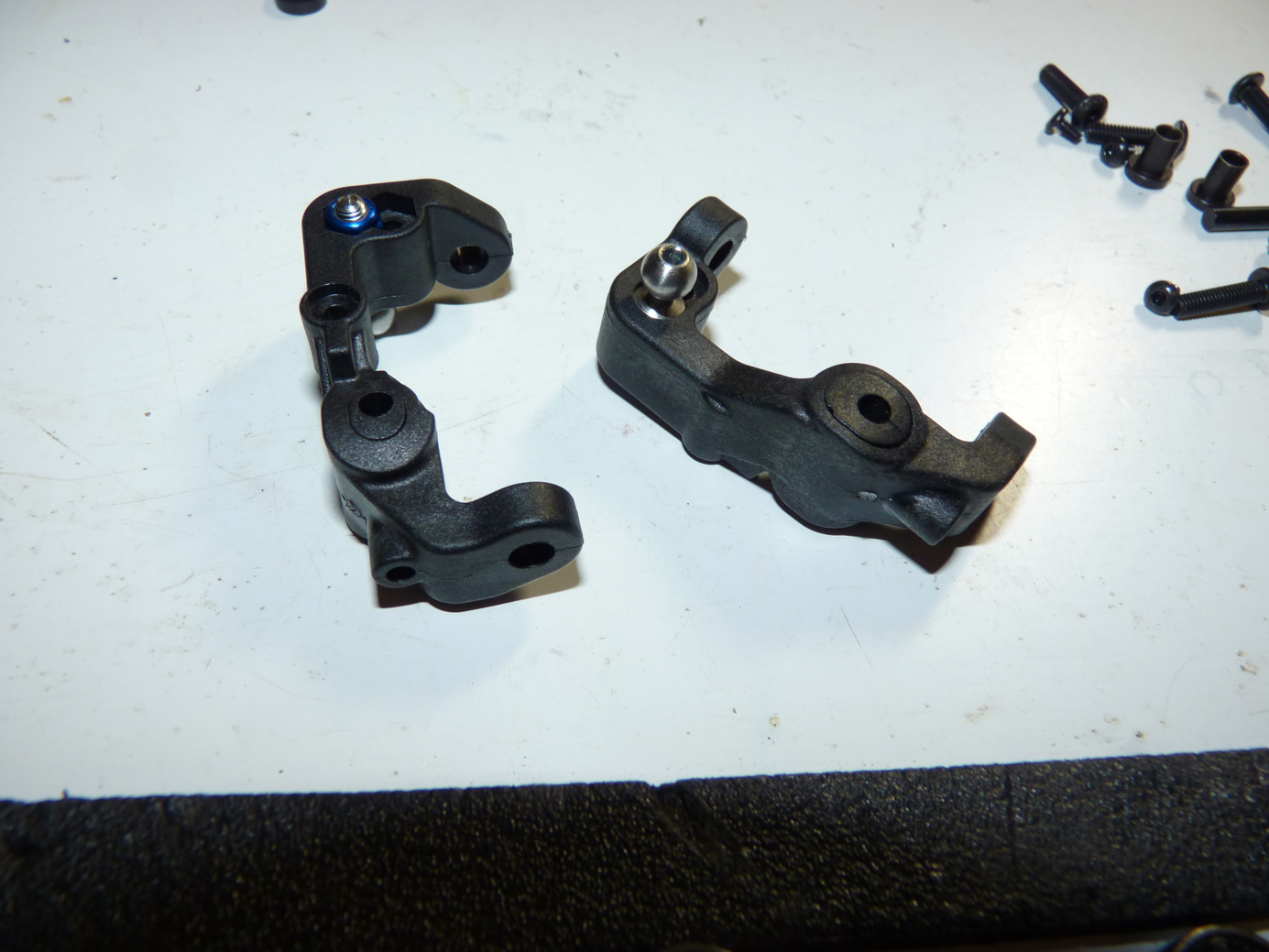

P1110348

They just slide into place. You can install an optional #4670 set screw to better hold the caster block inserts and hinge pin.

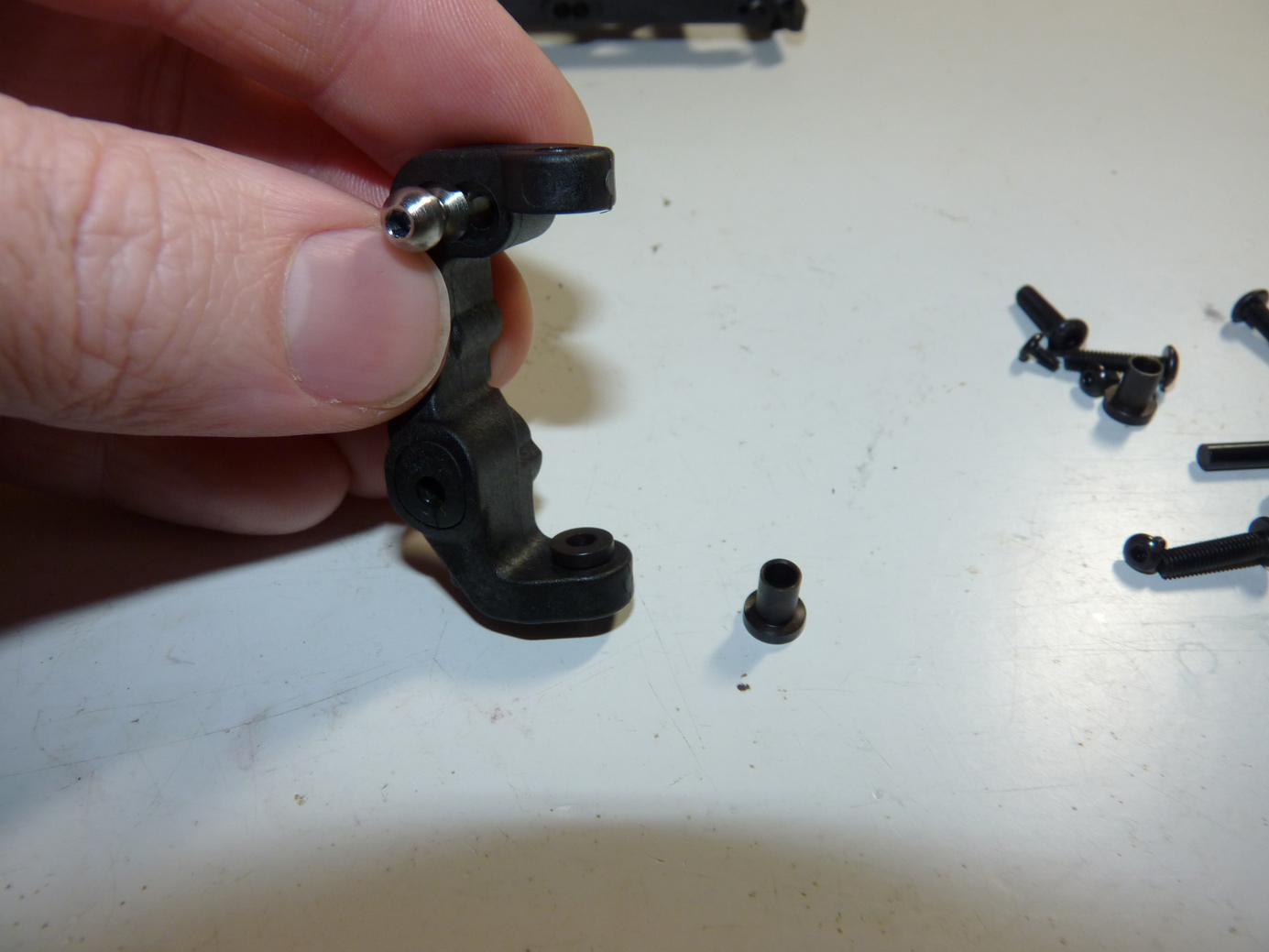

P1110349

Installing the caster block bushings.

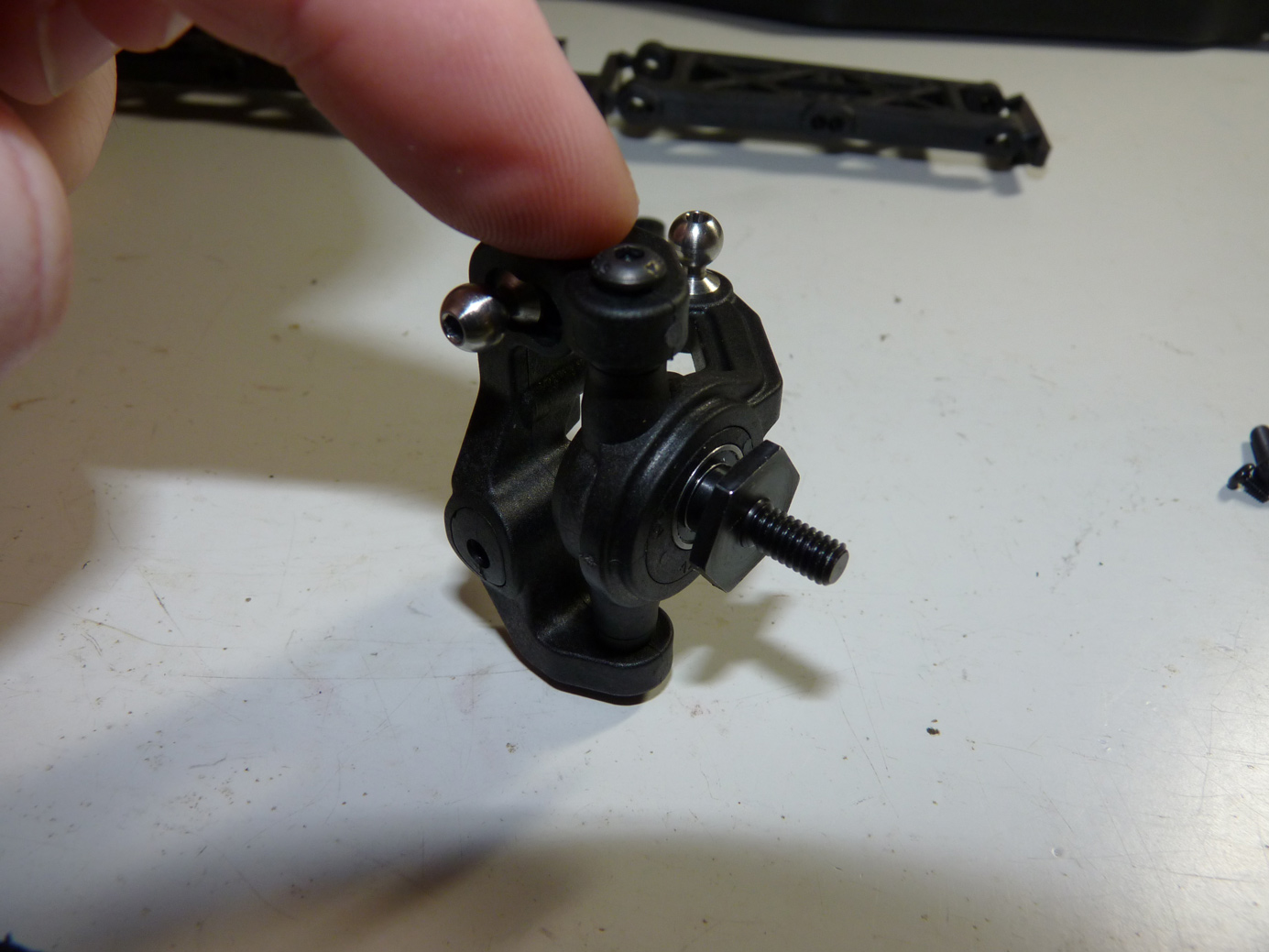

P1110350

Assembling the steering block to the caster block.

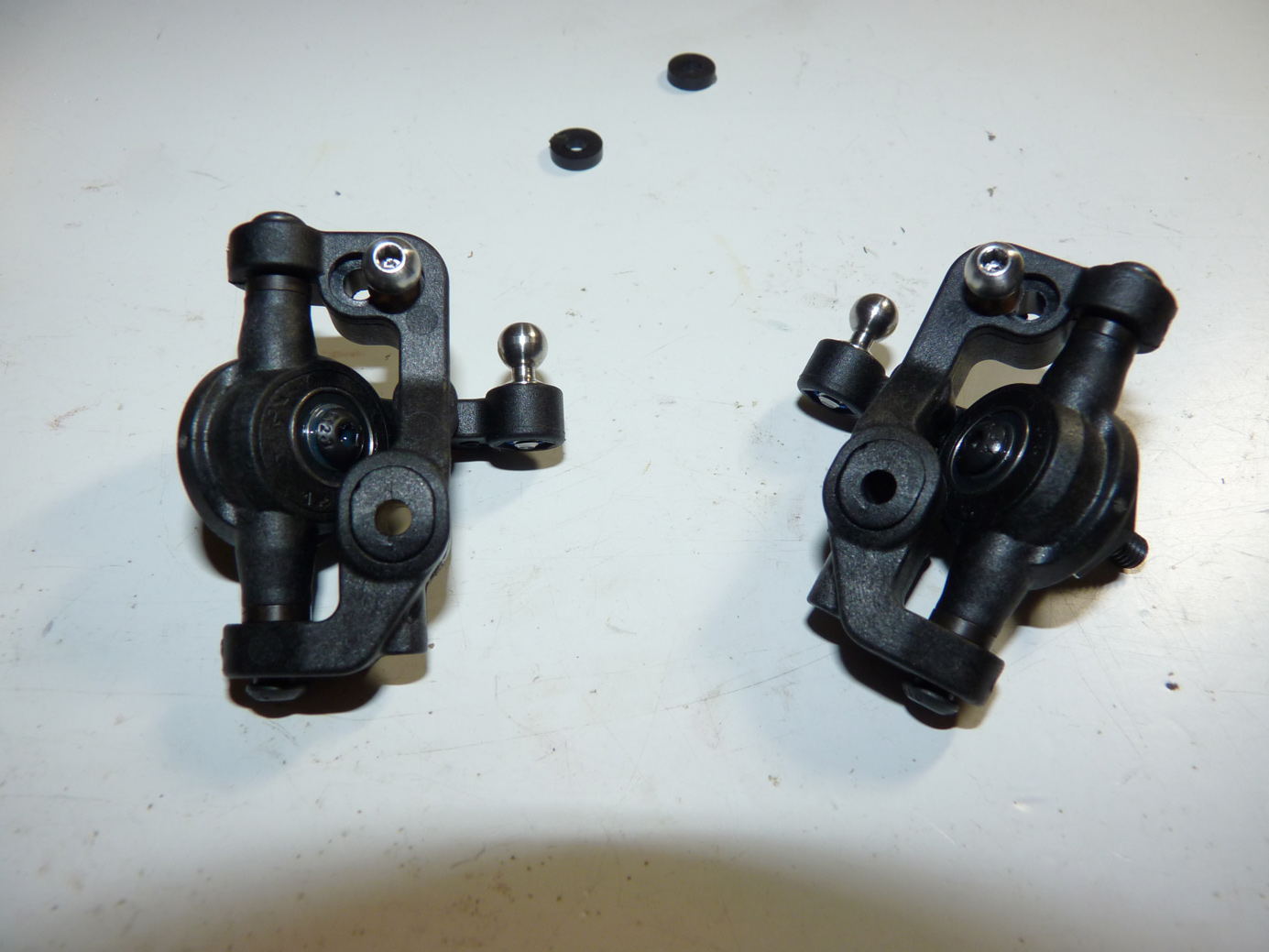

P1110351

Done and ready to be installed on the front arms.

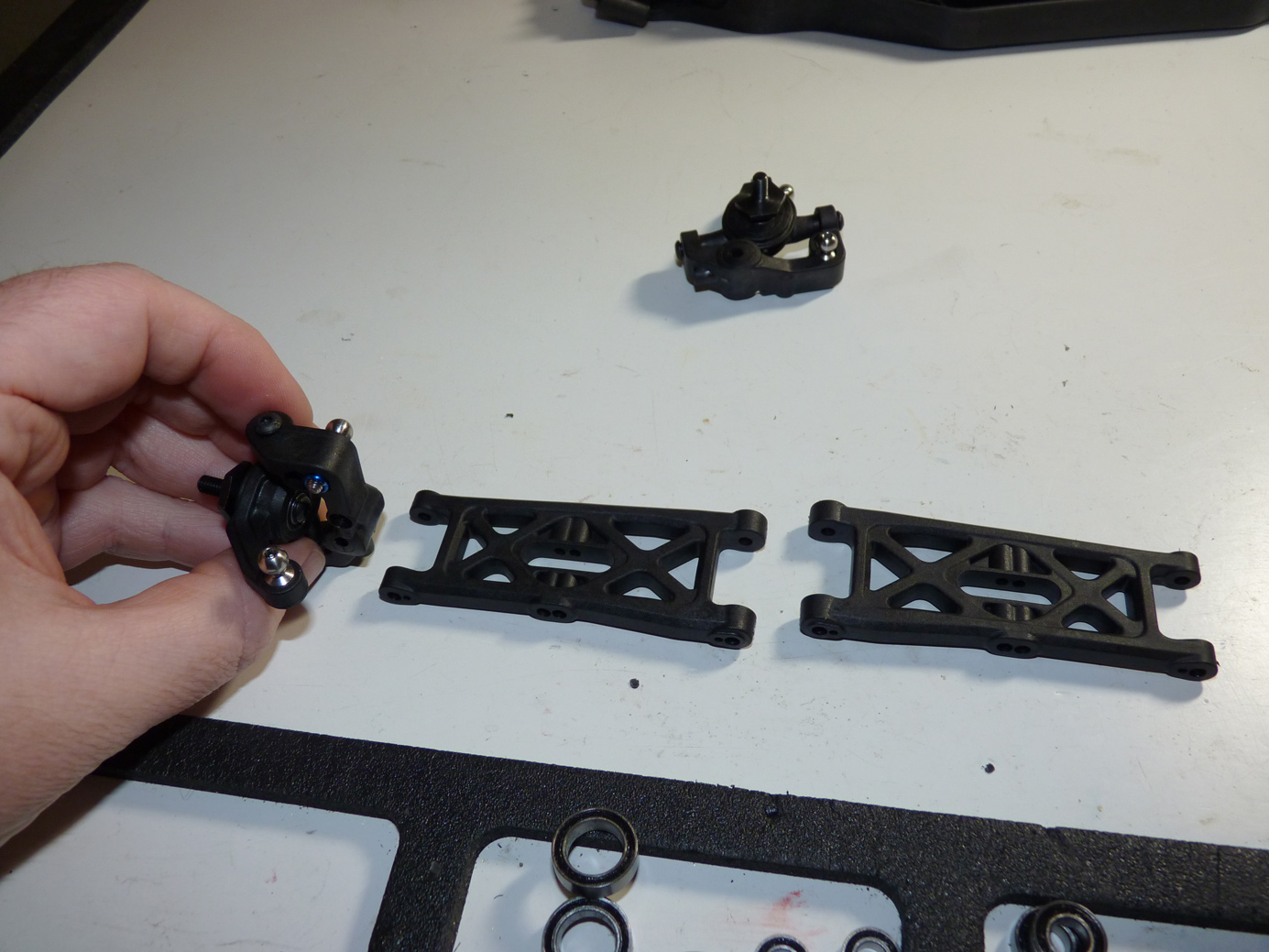

P1110353

This is as simple as inserting a hinge pin and securing with the capture screw.

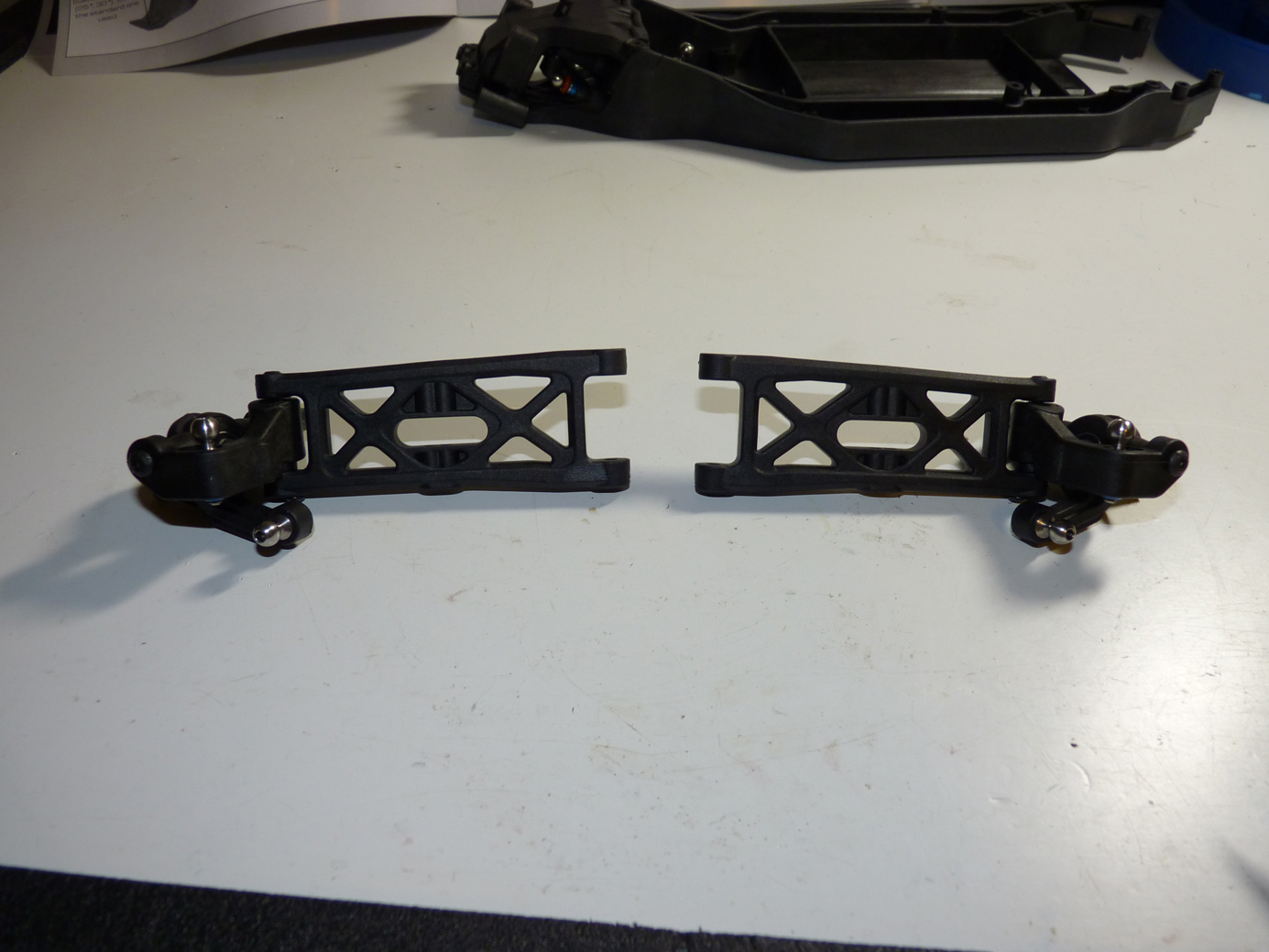

P1110354

Front arms and steering parts completed.
