May 27th, 2012

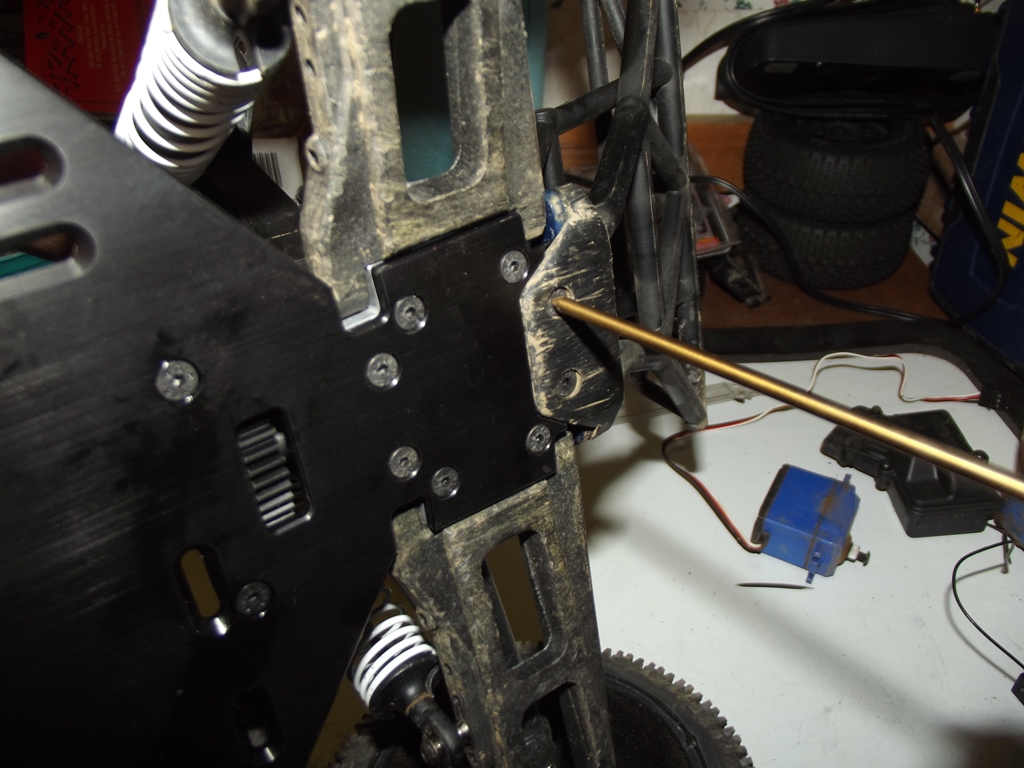

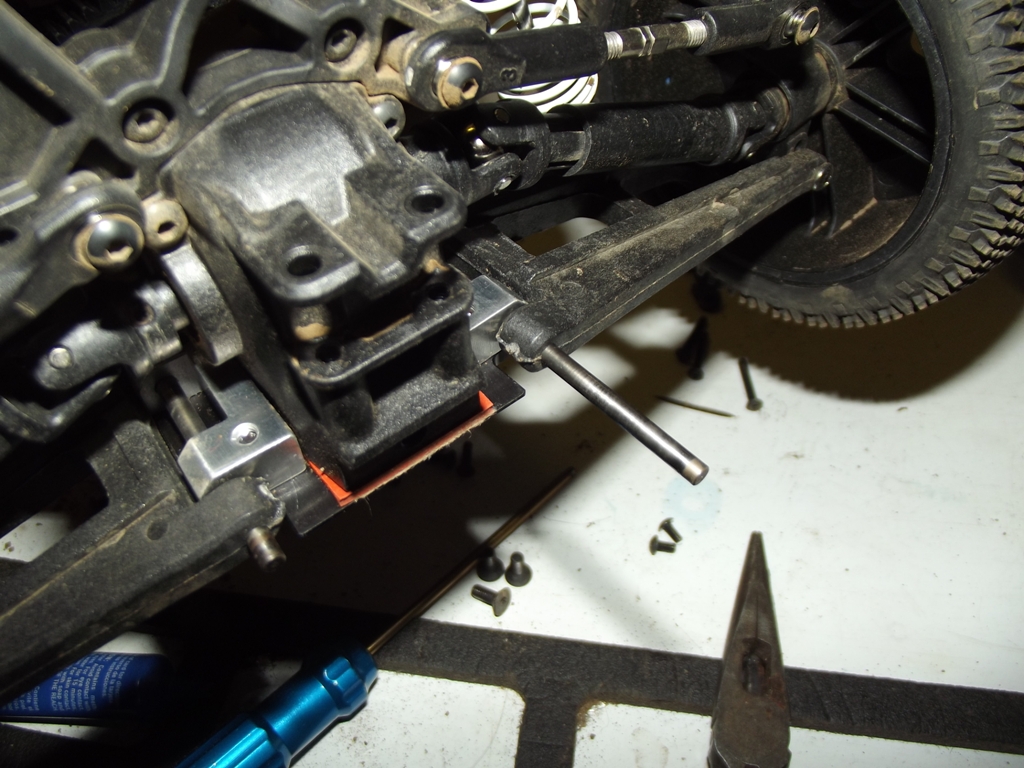

Matt Moving on to the rear arms, align the arms in the blocks, and slide in the hinge pins

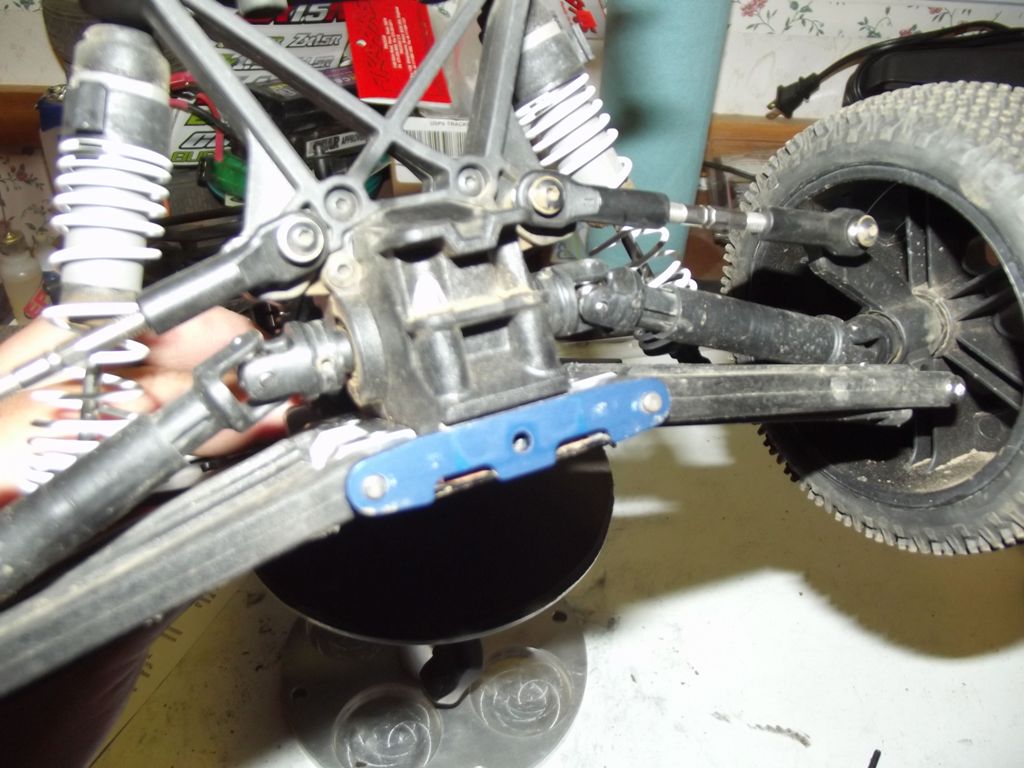

Followed by the blue hinge pin plate

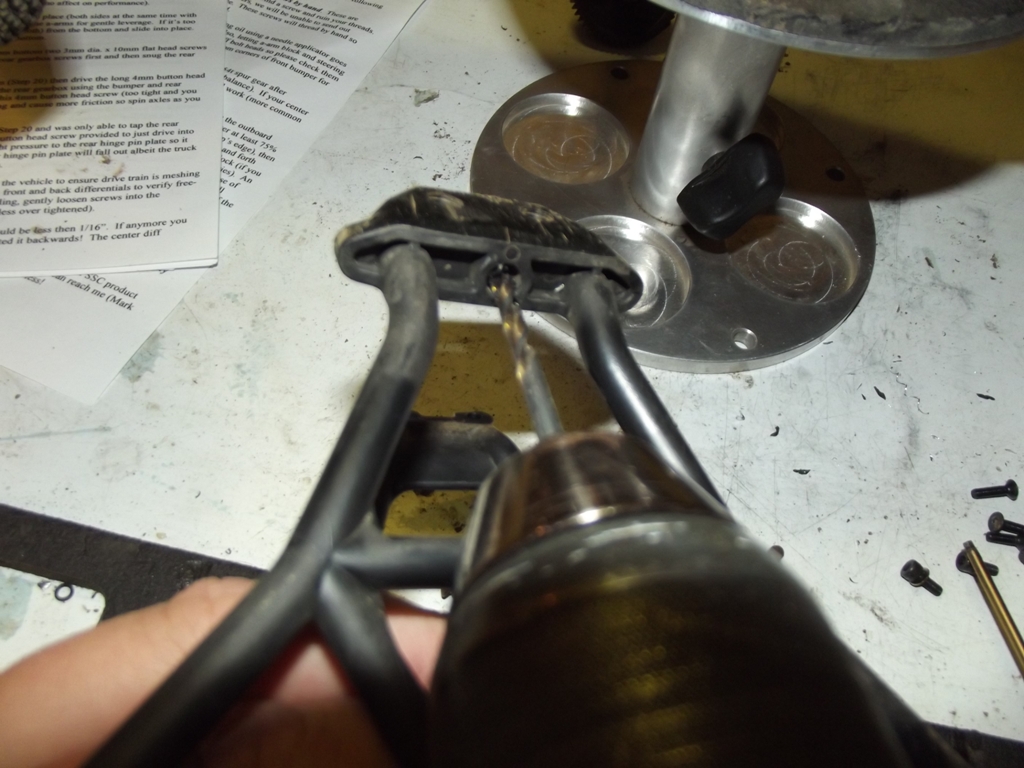

There is some modification required for the rear bumper. In order to hold that rear hinge pin plate on, we need to drill 4mm in the bumper and plate, and tap the rear hole on the gearbox.
This will allow us to put a 4mm screw through the bumper and plate and thread it into the gearcase.

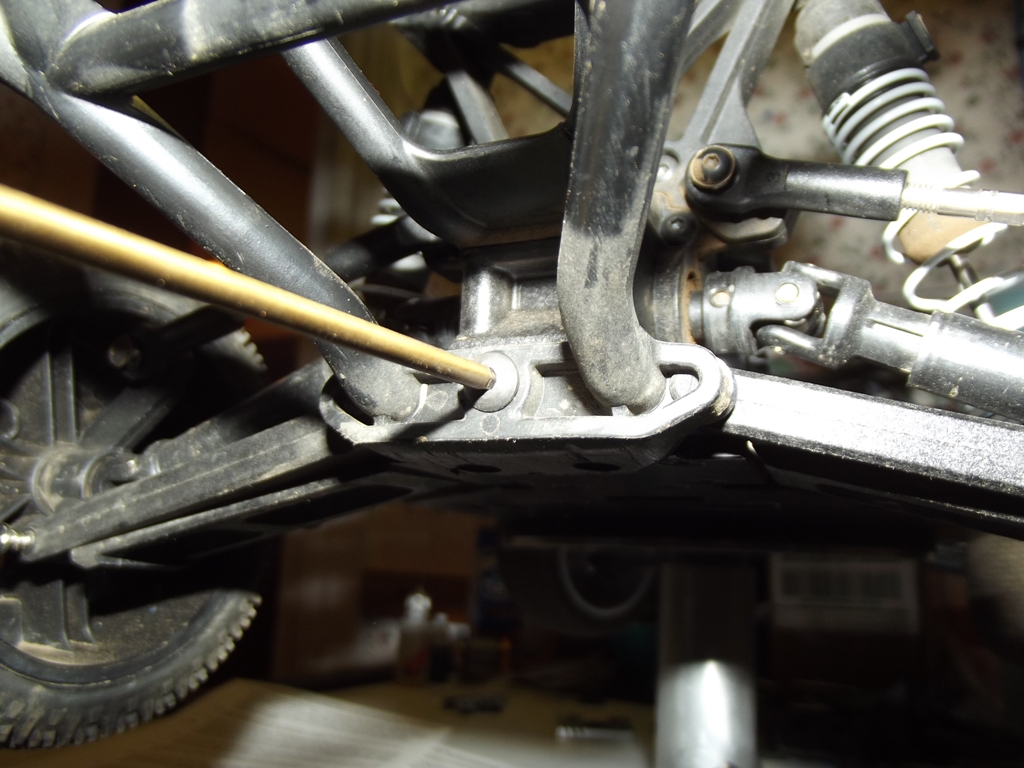

All that’s left to hold the rear bumper on is two screws through the bottom into the gearcase

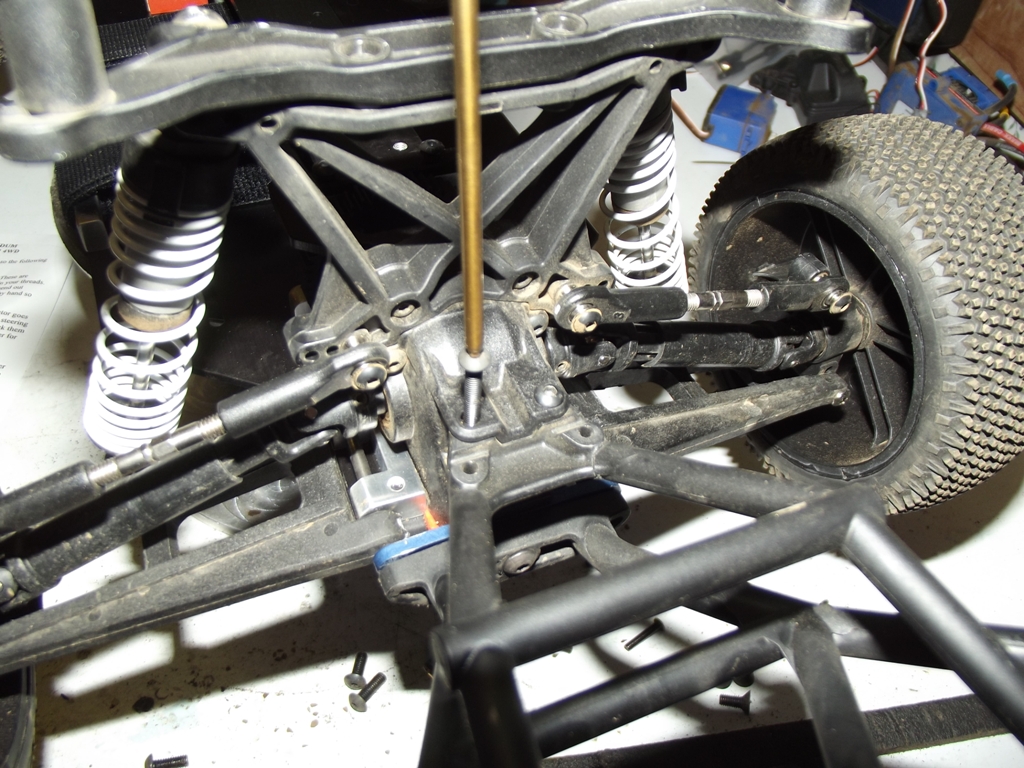

And two screws through the top
