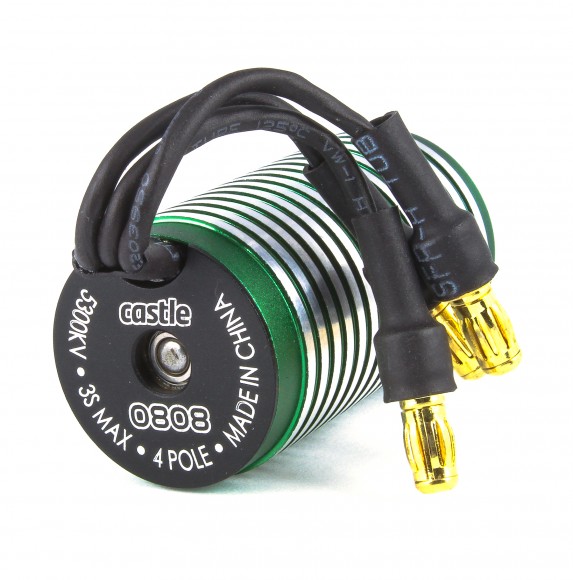

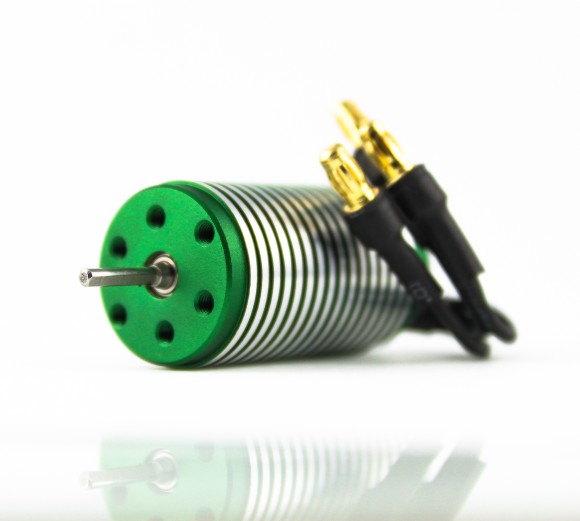

Mini Size, Massive Power.

Castle’s new 0808 series motors may resemble other motors on the market, but that’s where the similarities end. They utilize the same 4 pole technology we use to toss around 15 pound monster trucks like rag dolls and wheelie 30 pound Bajas on demand. With the increased efficiency and torque gained from a 4 pole design they will take just about anything the user can throw at them. Just imagine what this little 20mm powerhouse is capable of. They’re a mini’s worst nightmare…and the competition’s.

The 0808 series motors are intended for on-road and off-road applications running up to 3S LiPo and weighing in at up to 2.5lbs. Castle offers these new motors with both of our race proven Micro ESCs to suit all applications. For 2WD and lighter 4WD vehicles (<1.5lbs) we recommend the Sidewinder Micro ESC, and for those with a bit beefier 4WD vehicle (>1.5lbs) we suggest the Mamba Micro Pro ESC.

0808 Motor Specs

Maximum Input voltage:3s LiPo or 12 NiMH cells (2s max 8200kv)

Maximum Operating Temperature:180° (82° C)Connectors:3.5mm gold connectors (female connectors included)

Size:L: 1.5″ (38mm)

Diameter: 0.79″ (20mm)

Shaft: 0.08″ (2mm)

Weight:1.8 oz (50g)

Items needed for operation:ESC (Sidewinder Micro or Mamba Micro Pro), and battery connector
