December 6th, 2013

Matt

The Centro C4.2 conversion kit has been an instant hit with racers wanting to convert the race winning B4.2 into a mid-motor buggy. JConcepts has immediately jumped on-board with options and accessories for this highly competitive vehicle. The R&D team at JConcepts quickly identified 3 key areas where the C4.2 could be improved upon. In stock trim the C4.2 includes a molded rear bulkhead which is highly flexible and a target to damage in severe crashes. The JConcepts suspension kit includes an all CNC machined aluminum version which has been trimmed, narrowing the stance allowing more room for narrow rear pivot camber link adjustments. The bulkhead is available in blue or black color and has silver chamfered edges around the border and inner cut-outs. The tucked design, trimmed shape and pocketing give the racer an extremely durable yet light-weight piece.

The 4mm Carbon Fiber shock tower has all the necessary adjustments including the standard outer (C4.2) camber link positions and the newly added inboard camber link holes to accommodate a narrow pivot rear suspension. The shock tower has the JConcepts touch, including added rib positioning to strengthen the tower where appropriate and to allow big bore shock and transmission clearance where necessary. The upper shock mount positions have been relocated to allow for proper rear suspension droop while all holes are designed on an arc to minimize droop changes during setup changes.

The final touch to the assembly are the aluminum rear wing mounts. The stock wing mounts place the wing extremely high on the vehicle, raising the center of gravity and increasing the pendulum effect of the rear-end. The JConcepts wing mounts place the wing more than 7mm lower than stock and have been spaced closer to accommodate the more popular wings on the market, allowing a more interchangeable wing between the B4 and C4 vehicles. The aluminum wing mounts are light-weight, durable and set the wing at just the right height giving the vehicle a more natural rake in appearance. All additional 4-40 hardware is included to make the conversion a snap. Upgrading to the JConcepts rear suspension kit gives the racer more performance, durability, functionality and more wing choice flexibility.

All Suspension Kit items and #2328 C4.2 aluminum narrow pivot, rear suspension mounts are also available separately for easy rebuilds and upgrades.

Features:

Original JConcepts design
CNC machined aluminum and anodized rear bulkhead
4mm genuine Carbon Fiber material shock tower
Reinforcement ribs added for strength
CNC machined aluminum and anodized wing mounts
Included hardware for installation
Improves suspension responsiveness and rigidity
Aesthetic eye-candy

JConcepts – C4.2 rear suspension kit – tower, bulkhead, wing mounts, hardware – blue

Part # – 2323-1

UPC Code – 845937010728

Retail price – $92.00

(Fits –Centro C4.2)

JConcepts – C4.2 rear suspension kit – tower, bulkhead, wing mounts, hardware – black

Part # – 2323-2

UPC Code – 845937010735

Retail price – $92.00

(Fits –Centro C4.2)

The Centro C4.2 conversion kit has been an instant hit with racers wanting to convert the race winning B4.2 into a mid-motor buggy. JConcepts has immediately jumped on-board with options and accessories for this highly competitive vehicle. The R&D team at JConcepts quickly identified a key area where the C4.2 could be improved upon. In stock trim the C4.2 includes a molded rear bulkhead which is highly flexible and a target to damage in severe crashes. The JConcepts replacement bulkhead features an all CNC machined aluminum version which has been trimmed, narrowing the stance allowing more room for narrow rear pivot camber link adjustments. The bulkhead is available in blue or black color and has silver chamfered edges around the border and inner cut-outs. The tucked design, trimmed shape and pocketing give the racer an extremely durable yet light-weight piece.

*Rear bulkhead requires the use of JConcepts #2322 Carbon Fiber shock tower and #2321 aluminum wing mounts.

Features:

Original JConcepts design
CNC machined aluminum and anodized rear bulkhead
Tucked design, trimmed shape with deep pocketing
Improves suspension responsiveness and rigidity
Aesthetic eye-candy

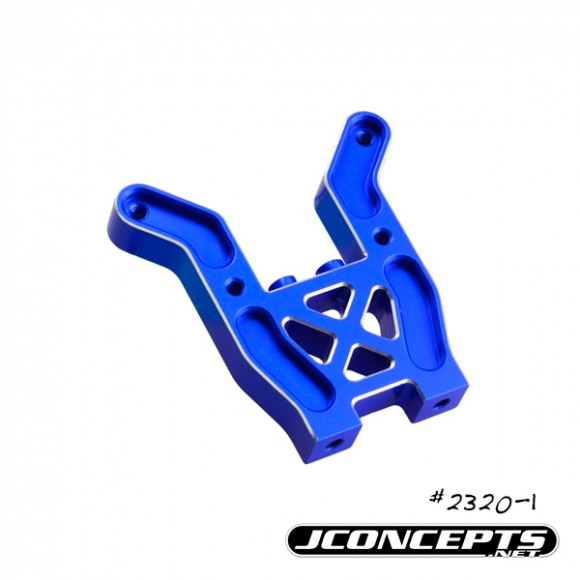

JConcepts – C4.2 aluminum rear bulkhead – blue

Part # – 2320-1

UPC Code – 845937010674

Retail price – $26.00

(Fits –Centro C4.2)

JConcepts – C4.2 aluminum rear bulkhead – black

Part # – 2320-2

UPC Code – 845937010681

Retail price – $26.00

(Fits –Centro C4.2)

Wing mounting position is very critical in 2wd buggy racing and JConcepts is quick to adapt the C4.2 buggy to a more traditional height and mount. The stock wing mounts place the wing extremely high on the vehicle, raising the center of gravity and increasing the pendulum effect of the rear-end. The JConcepts wing mounts place the wing more than 7mm lower than stock and have been spaced closer to accommodate the more popular wings on the market allowing a more interchangeable wing between the B4 and C4 vehicles. The aluminum wing mounts are light-weight, durable and set the wing at just the right height giving the vehicle a more natural rake in appearance. Available in blue or black color with silver chamfering on the perimeter allows a driver to match their favorite paint scheme.

Features:

Original JConcepts design
CNC machined aluminum
Silver chamfer highlighting
Available in blue and black color
Aesthetic eye-candy

JConcepts – C4.2 aluminum rear wing mounts – blue

Part # – 2321-1

UPC Code – 845937010698

Retail price – $40.00

(Fits –Centro C4.2)

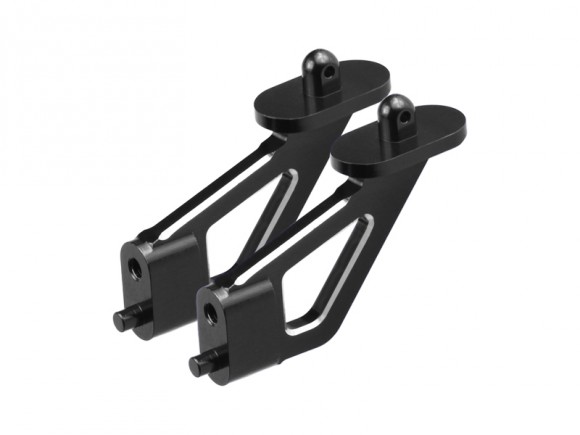

JConcepts – C4.2 aluminum rear wing mounts – black

Part # – 2321-2

UPC Code – 845937010704

Retail price – $40.00

(Fits –Centro C4.2)

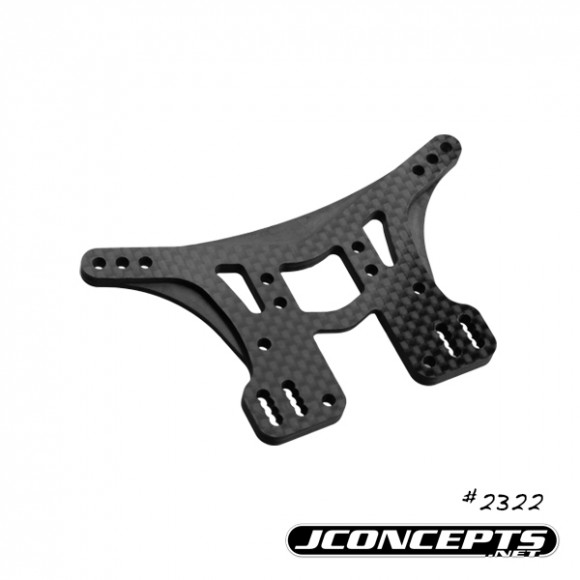

The Centro C4.2 conversion kit has been an instant hit with racers wanting to convert the race winning B4.2 into a mid-motor buggy. The 4mm Carbon Fiber shock tower has all the necessary adjustments including the standard outer (C4.2) camber link positions and the newly added inboard camber link holes to accommodate a narrow pivot rear suspension. The shock tower has the JConcepts touch, including added rib positioning to strengthen the tower where appropriate and to allow big bore shock and transmission clearance where necessary. The upper shock mount positions have been relocated to allow for proper rear suspension droop while all holes are designed on an arc to minimize droop changes during setup changes.

Features:
