Team Durango DEX408 – Build up

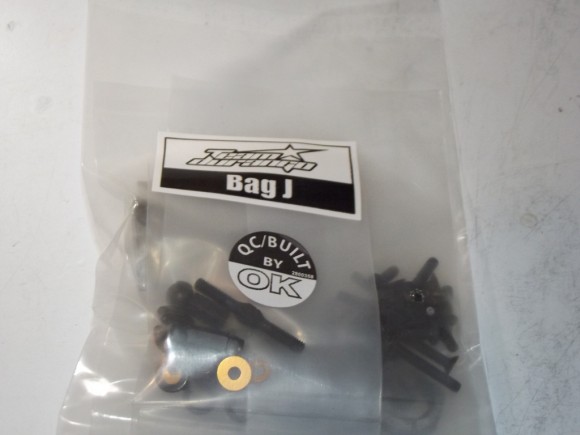

Bag J

DSCF5136

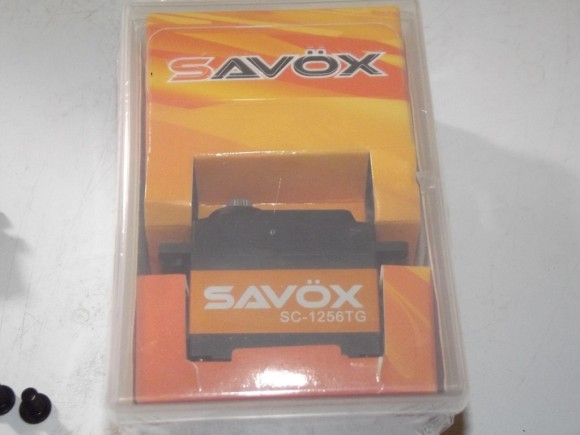

Time for the servo. This is a Savox 1256TG.

DSCF5137

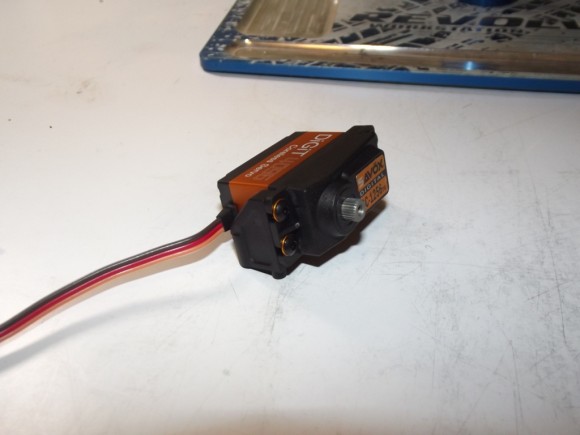

There are little plastic blocks to mount the servo to the chassis.

DSCF5139

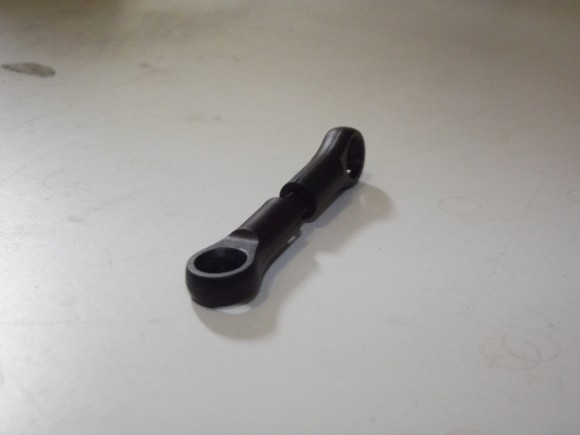

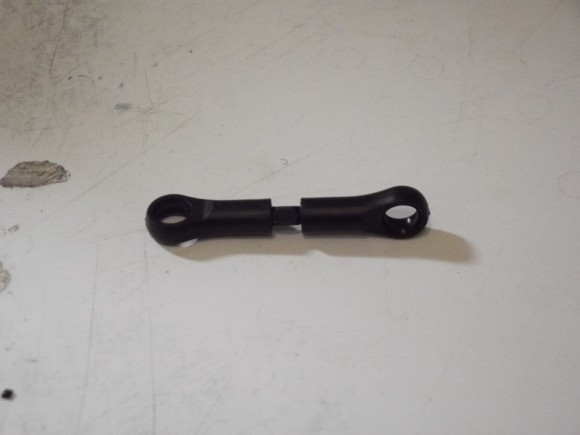

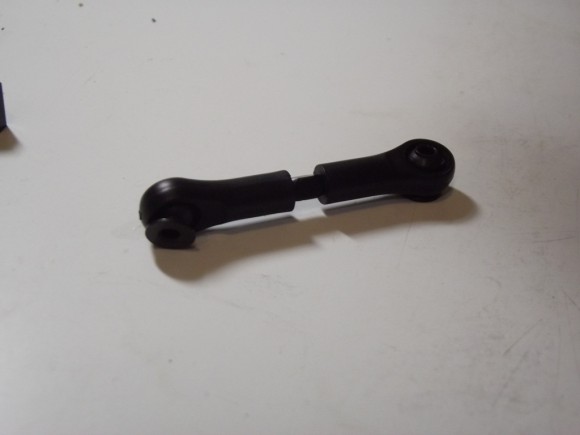

This steering linkage will be used to tie from the servo horn to the steering bellcrank

DSCF5141



DSCF5143



DSCF5144

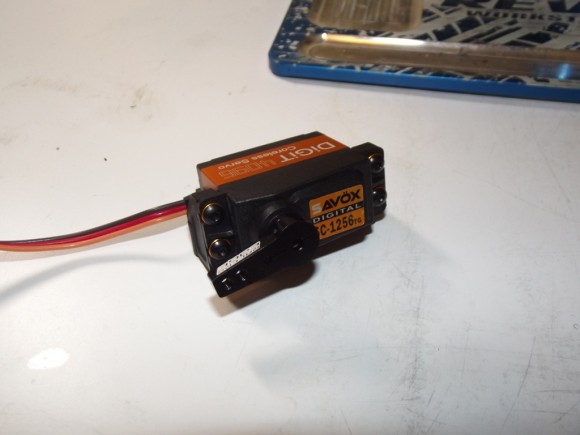

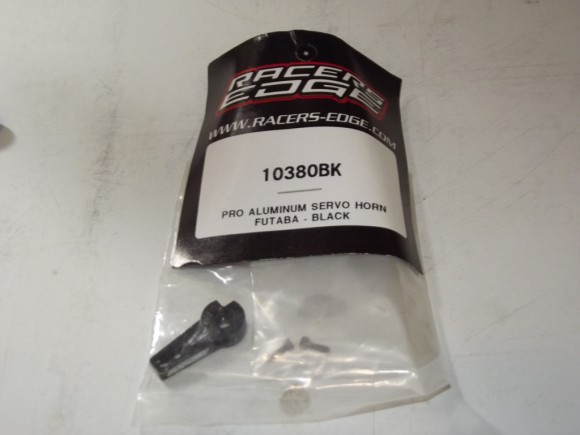

We’ll be using this Racer’s Edge aluminum servo horn

DSCF5145



DSCF5146



DSCF5148

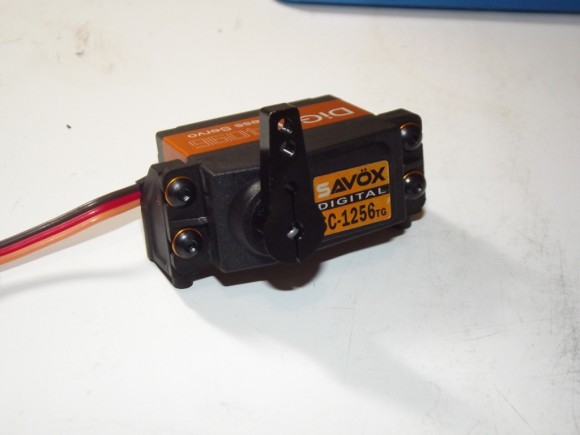

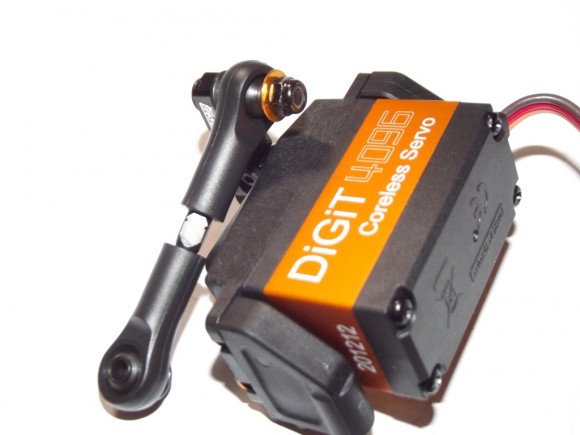

Now we can mount the steering linkage to the new horn

DSCF5150

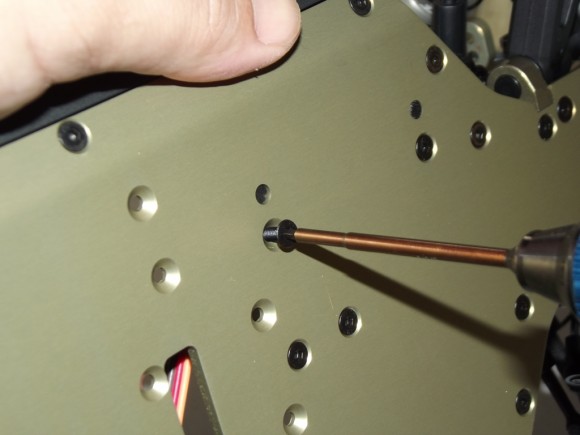

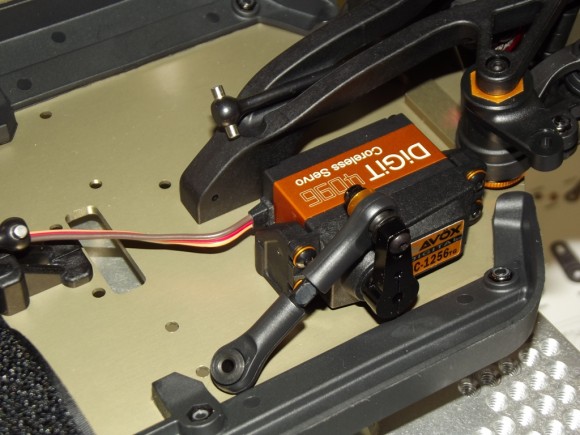

The servo is held to the chassis by a couple of screws.



DSCF5151



DSCF5152

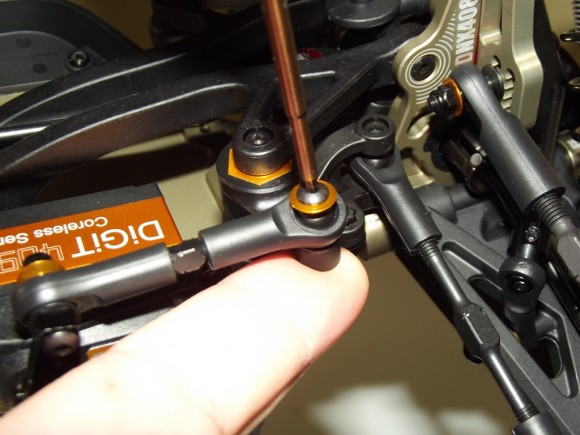

And we connect the linkage

DSCF5153

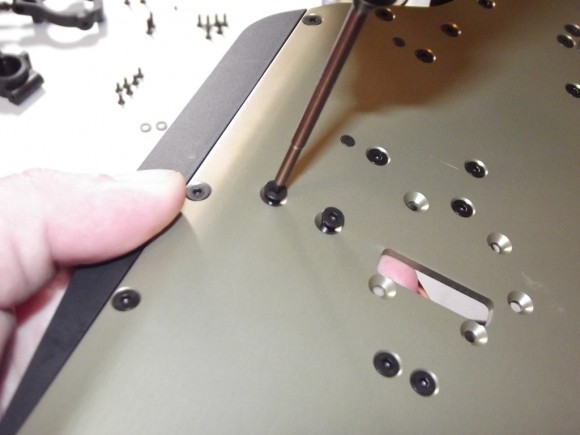

The kit calls for this small mount to be used for the receiver.

DSCF5154

You’ll notice the slot for the antenna tube.

DSCF5155

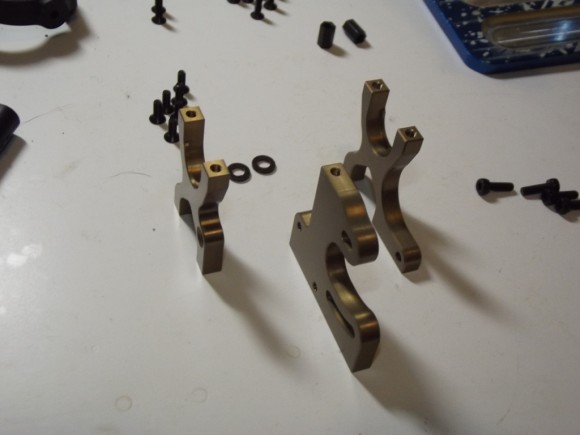

These are the standoffs for the center diff

DSCF5156



DSCF5158

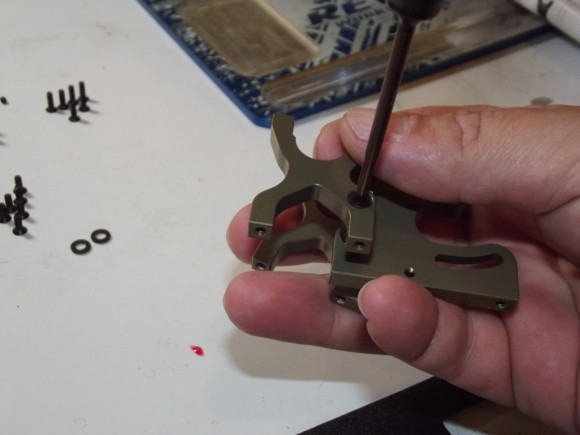

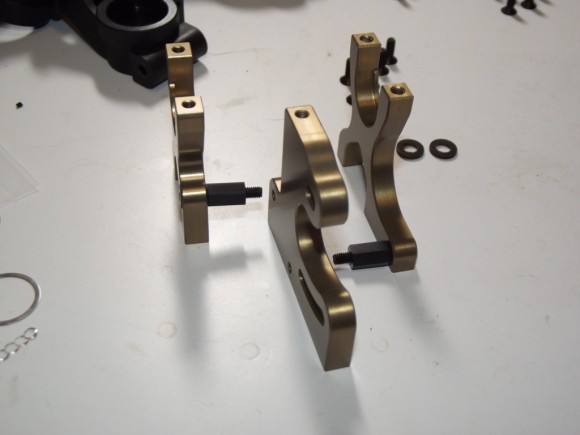

They get mounted to each other

DSCF5159

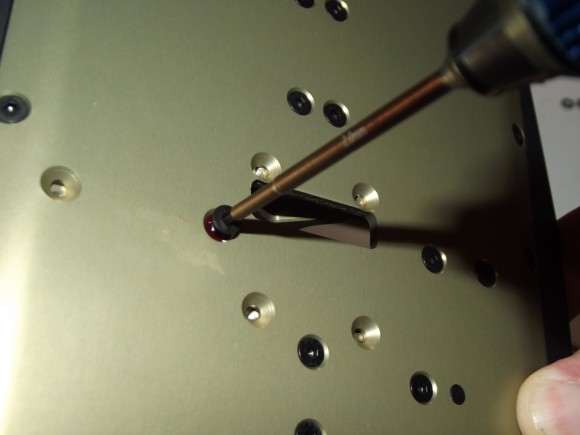

And the whole assembly gets mounted to the chassis

DSCF5160

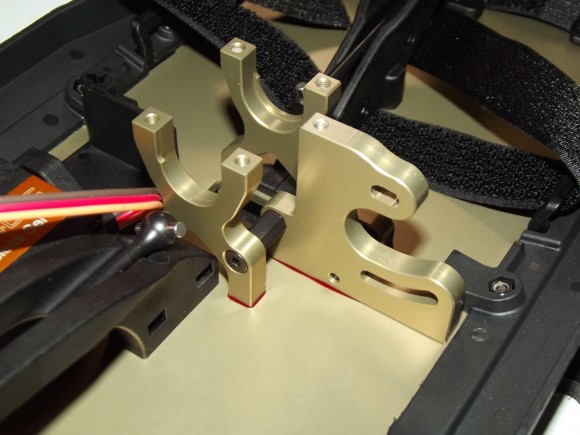

Here’s what it looks like from the top

DSCF5161

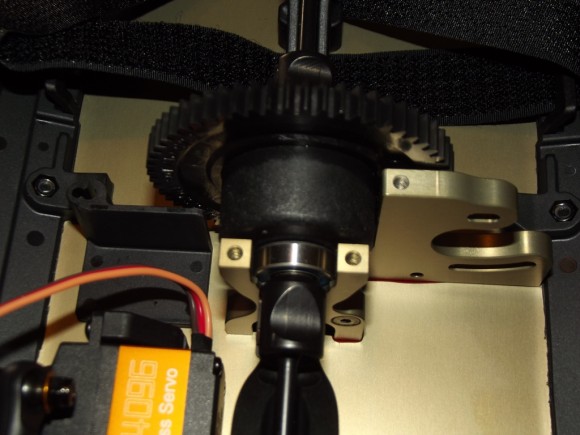

Now we can set the center diff in place, being sure to first slide the driveshafts into the outdrives.

DSCF5162

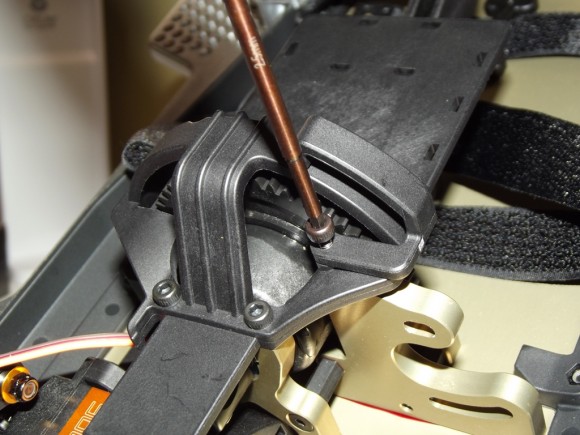

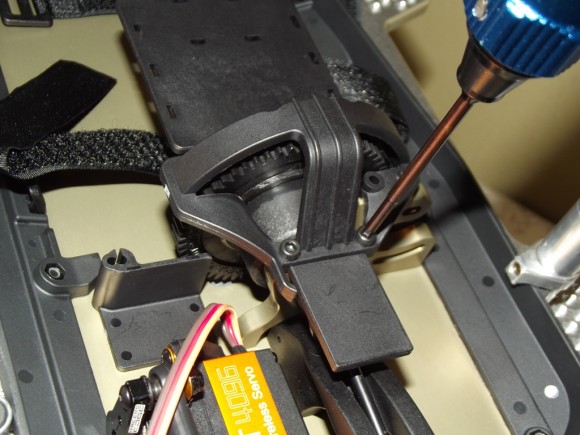

This is the top half of the center diff mount. It serves a few pruposes. It holds the center diff in place, guards the spur gear, has a larger plate for mounting the ESC on the rear side, and a shelf for a personal transponder in the front.

DSCF5163



DSCF5164
