Shocks!

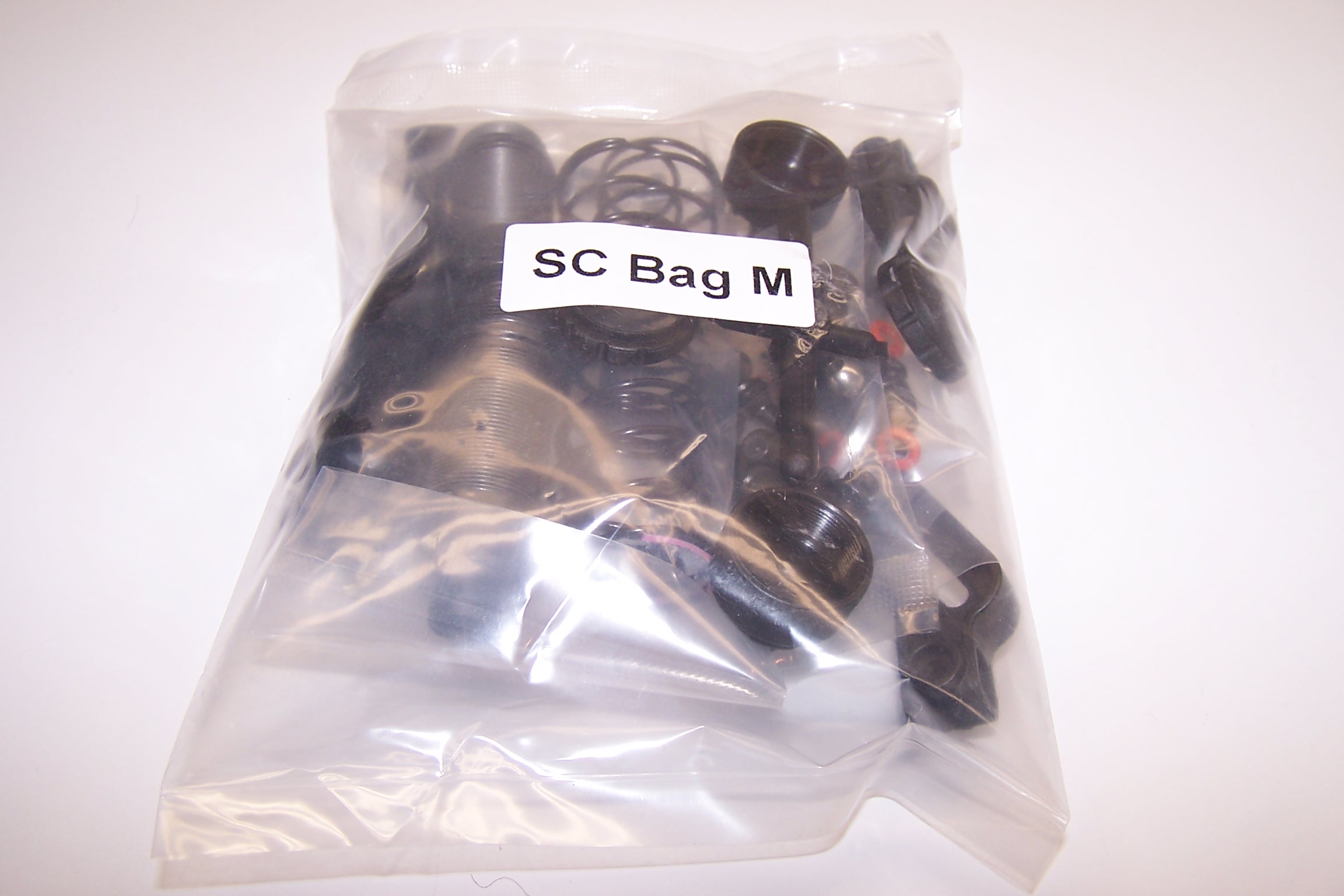

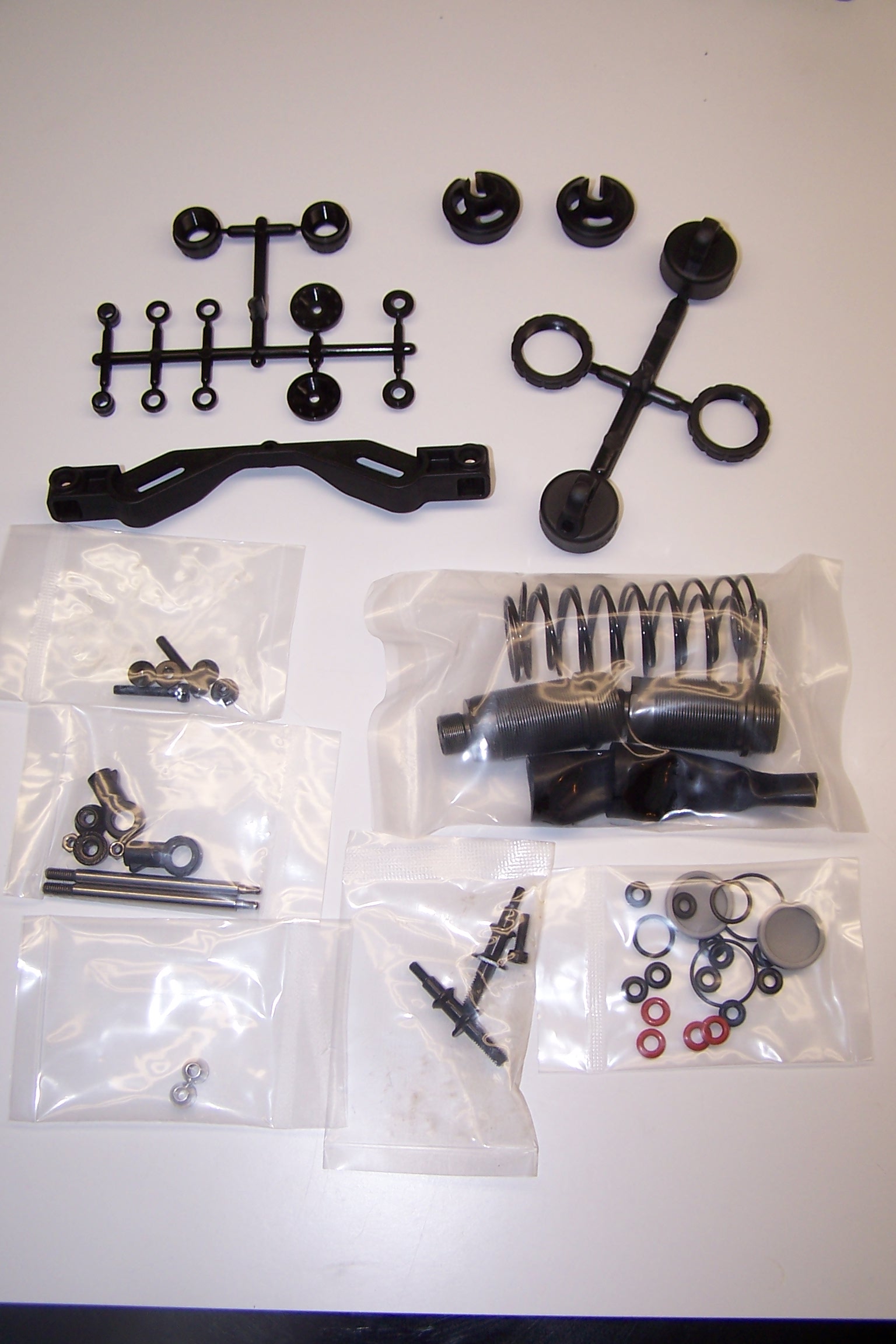

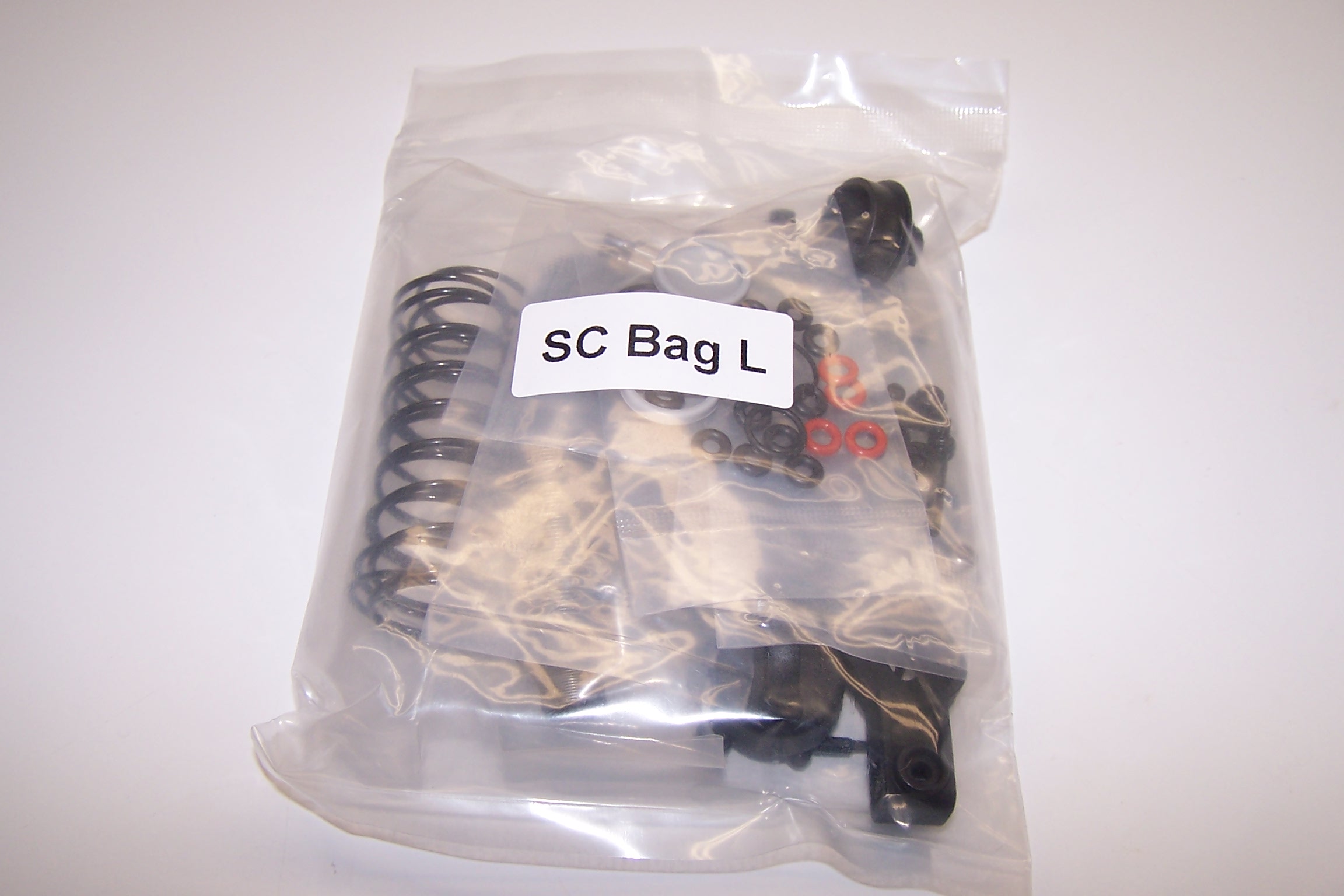

Everyone’s favorite build. Shocks. When you pull these out of the bag you will realize how huge these are. 16mm Diameter! Biggest in its class.

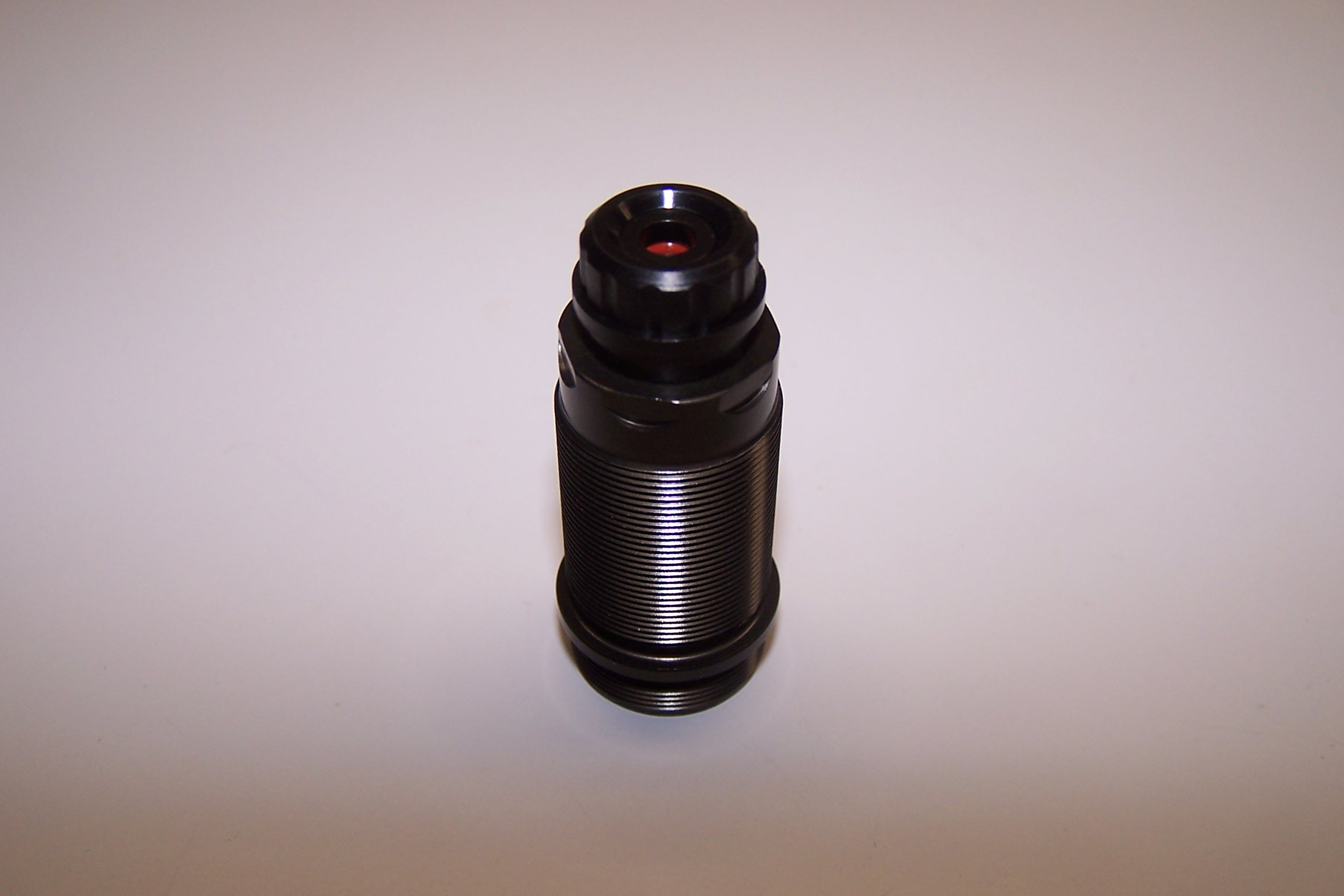

Add the o-rings & spacers per the manual. Make sure you add some silicone oil as you assemble them. This will prevent the o-rings being ripped as you slide the shaft assembly in.

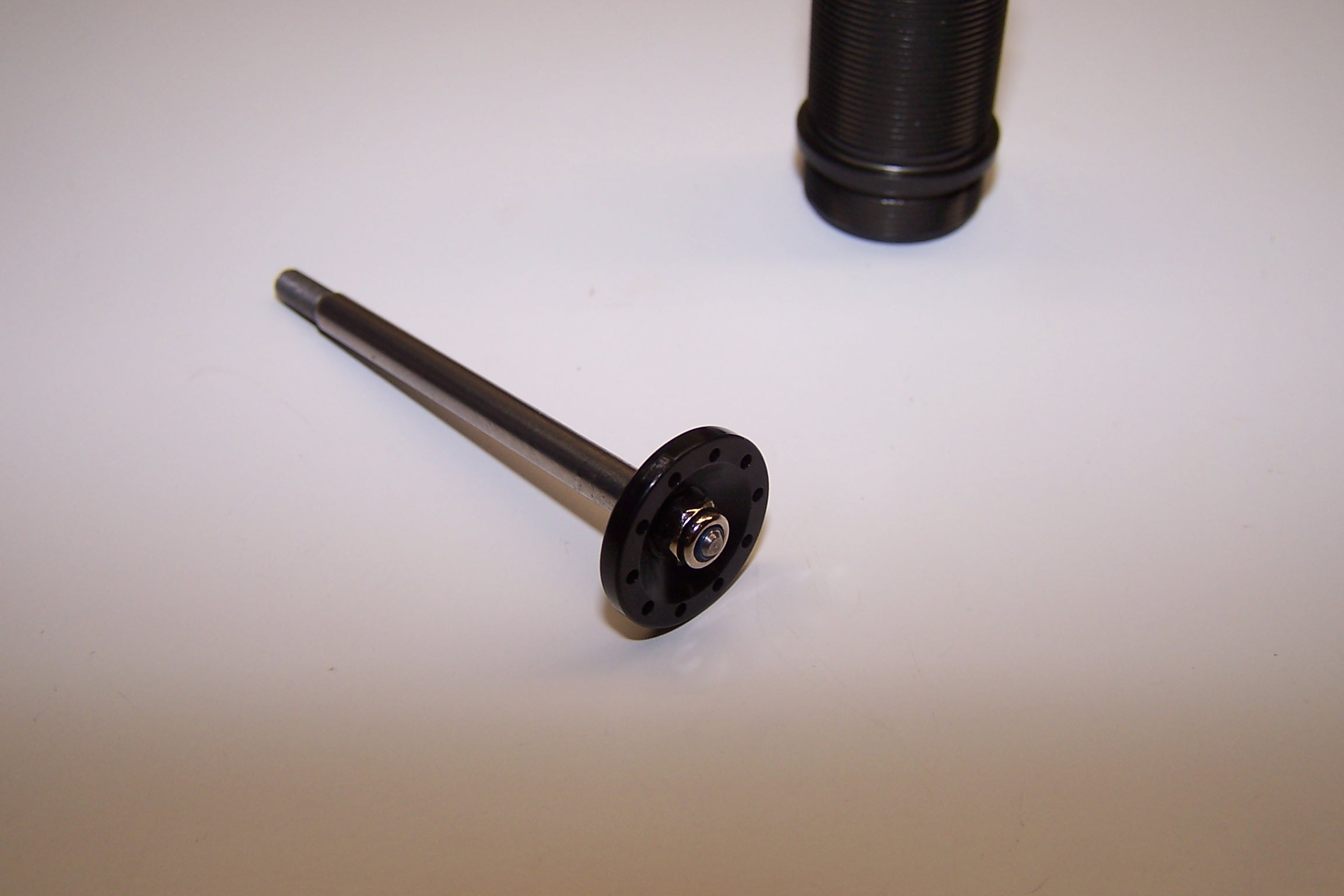

Stock pistons. Bevel is down. Use pliers to hold the shaft that will not damage the shaft.

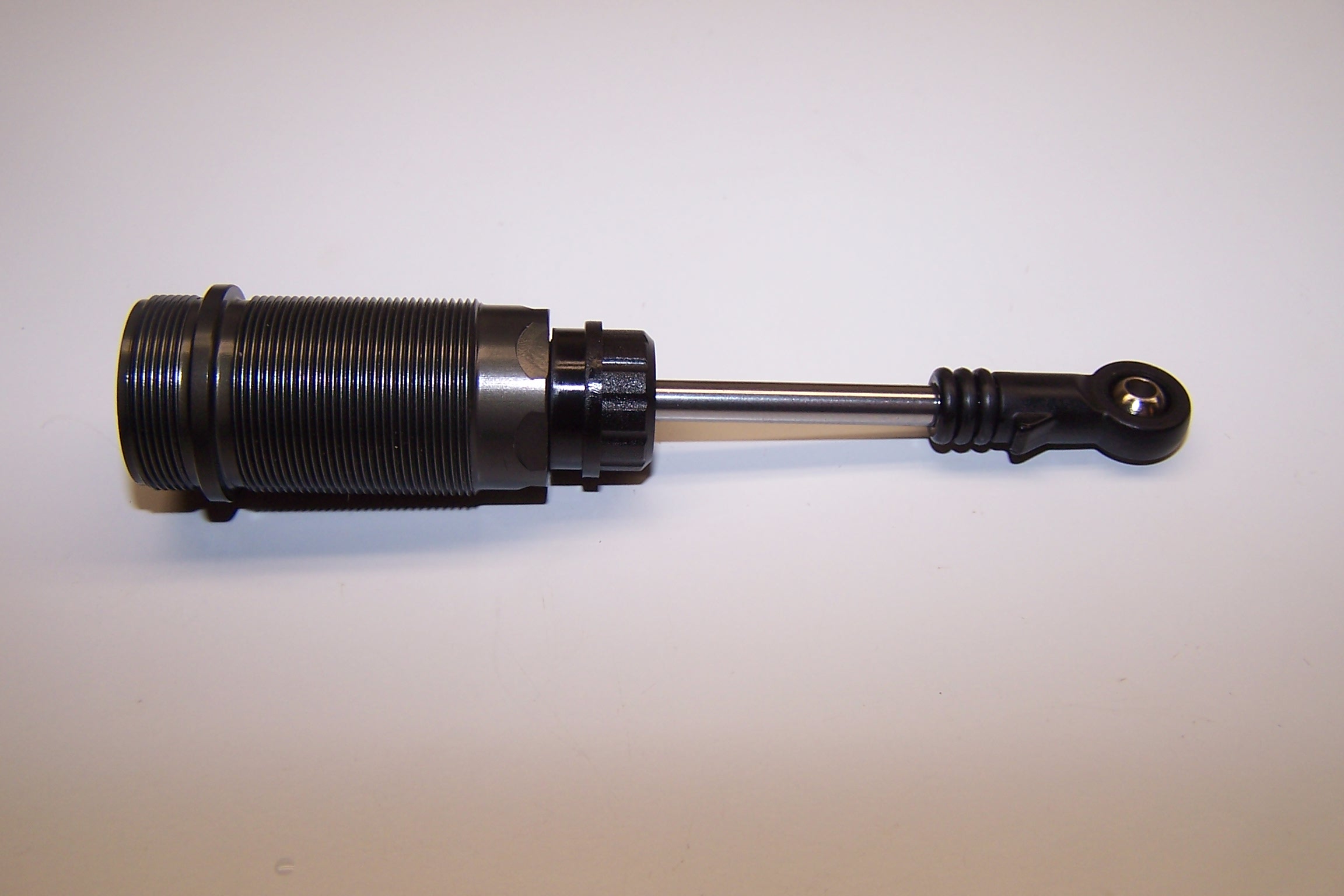

Slide the shaft through, add the 3 o-rings, and screw on the shock end.

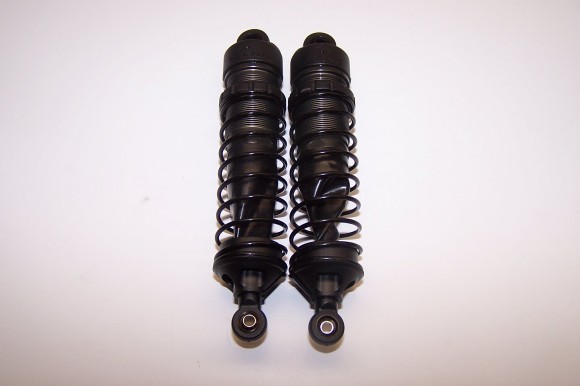

Slide the dust boot over the shock end. Be careful not the rip it. Add the springs and then the spring retainer.

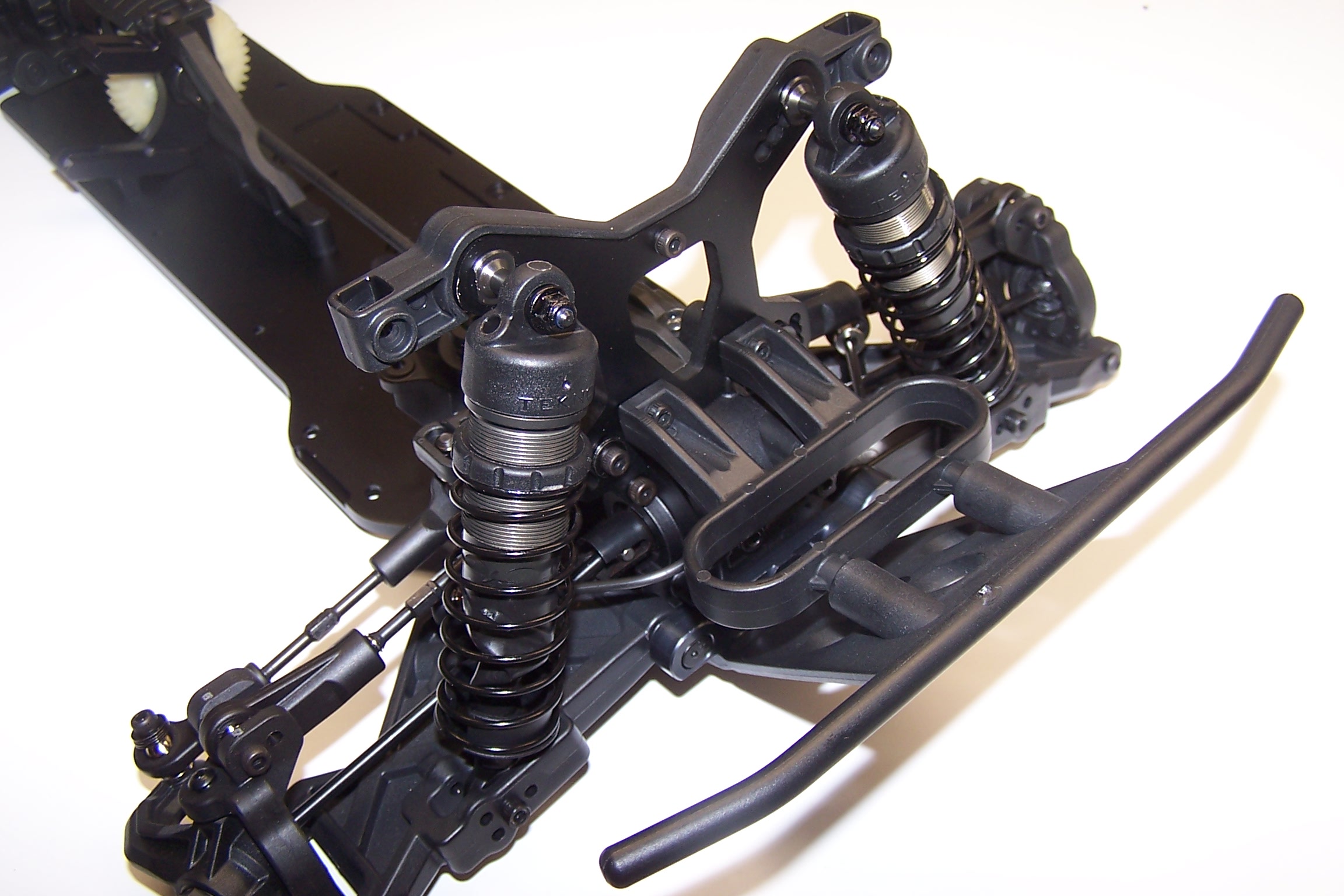

The shocks are added to the front shock tower and arms.

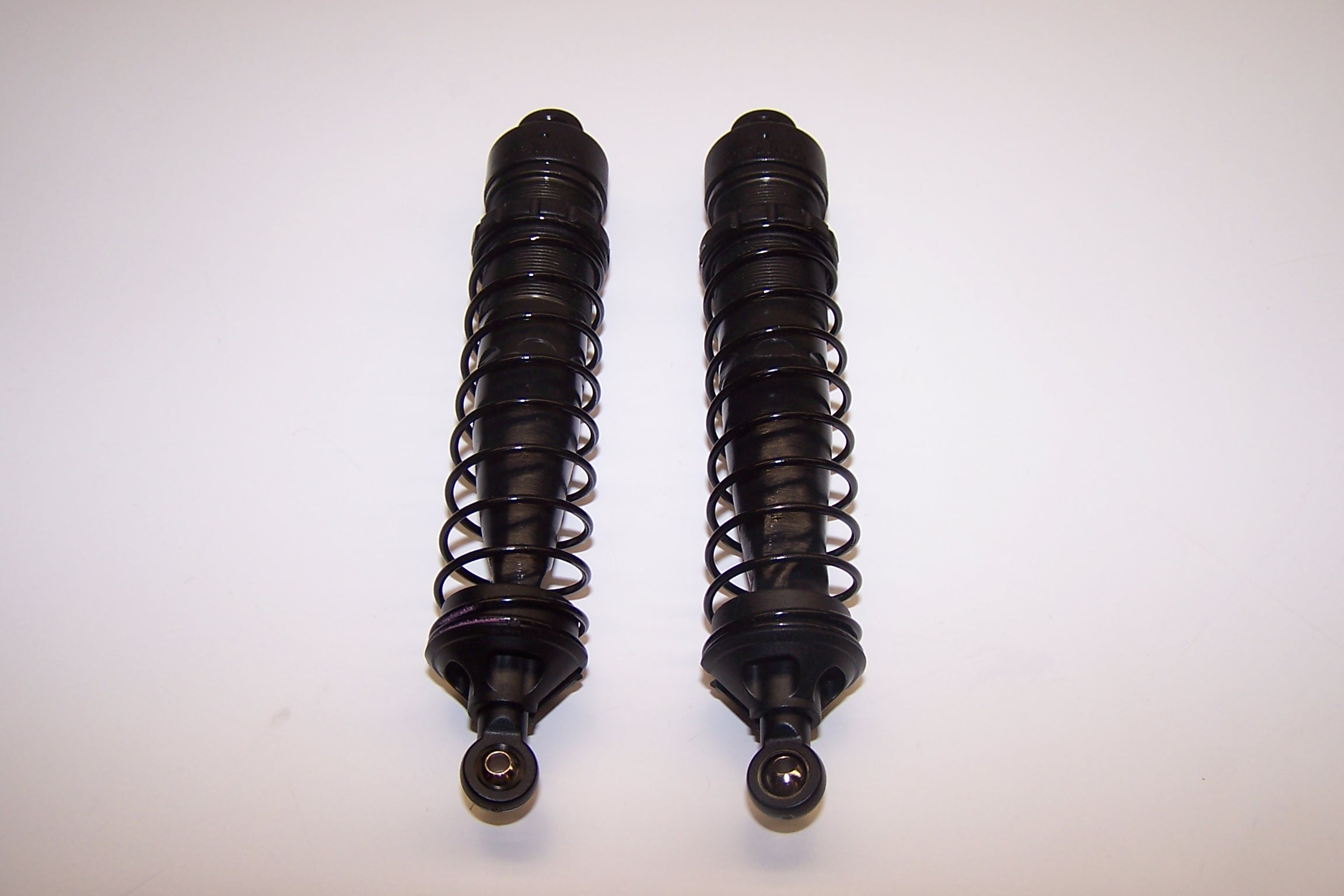

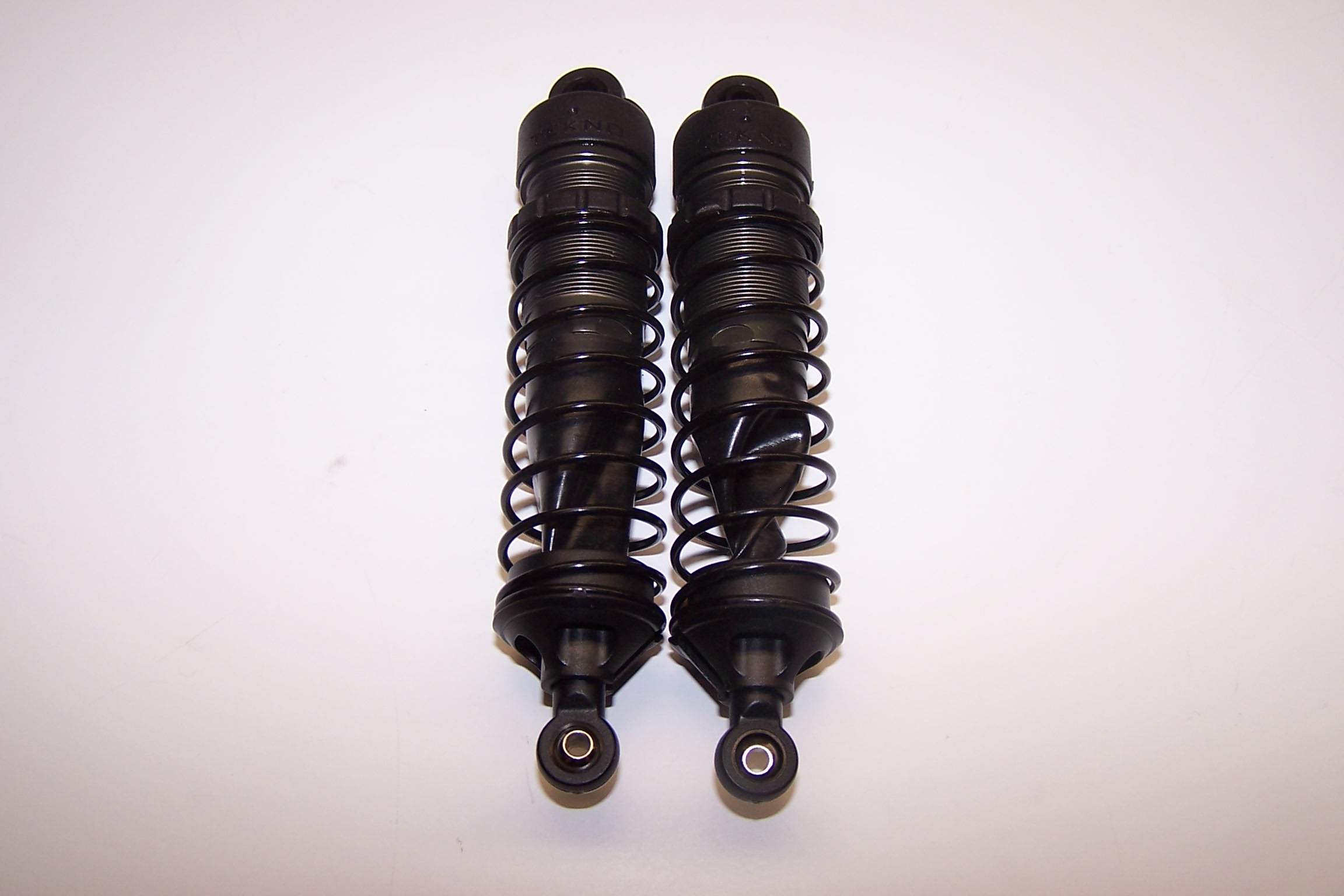

The rear shocks are built the same way as the front.

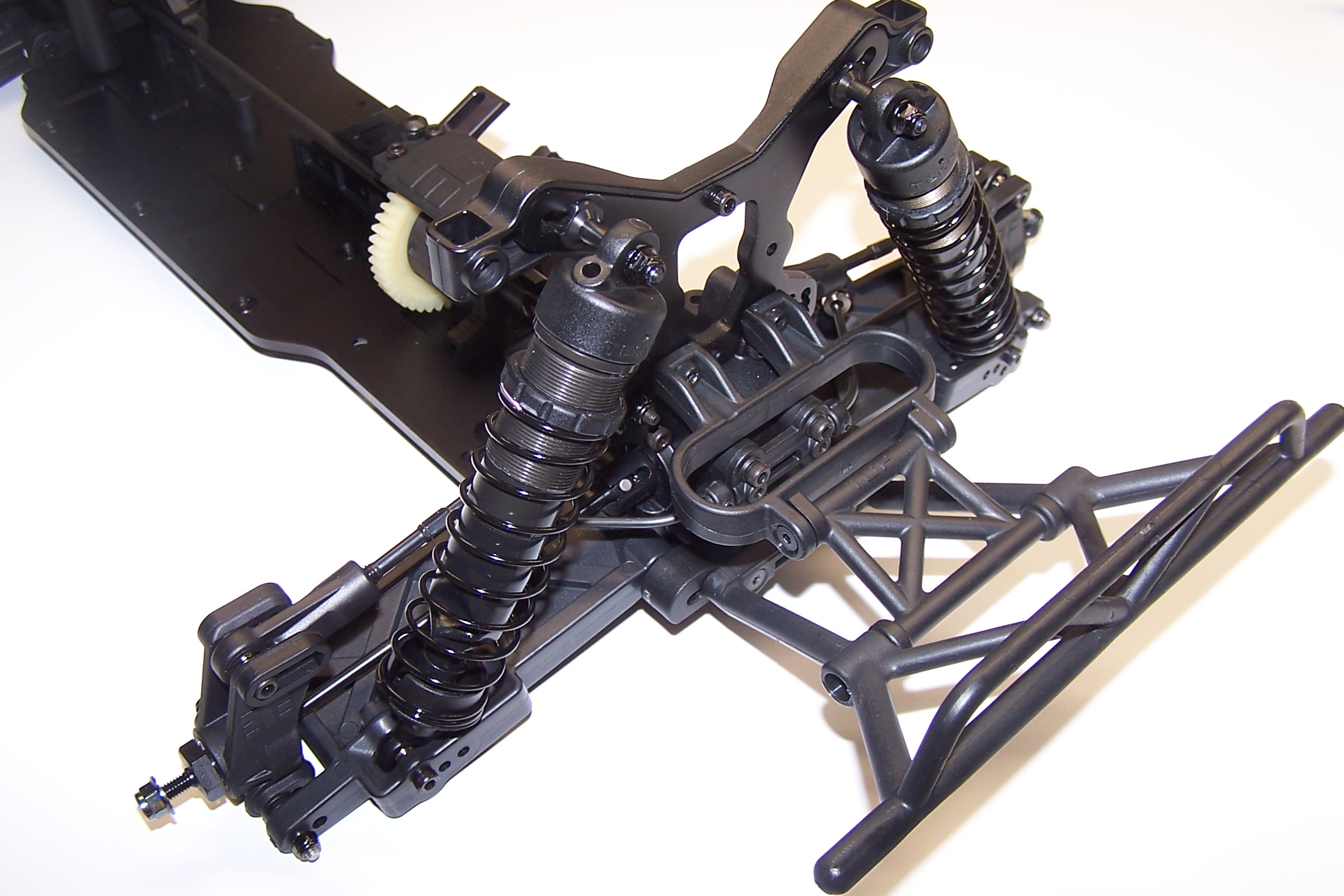

Pop ’em on and move on to the home stretch of the build.
