Tamiya DF03 MS: Can it Compete Part 1, The Build

Back in early December I posted a teaser pic of the Tamiya DF03-MS with a title “Can It Compete?” I finally got around to building it. First off I would like to thank Calvin Hall, owner and operator of REDNECK RC for sponsoring this article series. Calvin at Redneck is one of the best in the biz, and knows what the hobby is about – Having FUN! Something we at RC Soup always try to do with everything we cover. REDNECK HOBBY AND RACEWAY is a premier R/C facility located in Baldwinsville, NY. The fully stocked hobby shop features two tracks, an indoor off road and a carpet oval both of high caliber. They are also planning a ton of cool stuff for outdoor coming this summer. Redneck’s prices are also very low so give them a call or check them out on facebook.

Now the idea of this series of articles is to take a kit that’s out on the market that is not really marketed as a racer, and attempt to race it at a club level. How would it do? Would it be competitive with the B44’s, Schumacher’s and Durango’s? We will soon find out but first we have to build it!

dfo3 1st build 011

Tamiya is known for their box art and though this isnt like a retro Frog or Grasshopper box I think it is still pretty cool.

dfo3 1st build 012

It even has a cool little handle making this box dual purpose.

dfo3 1st build 013

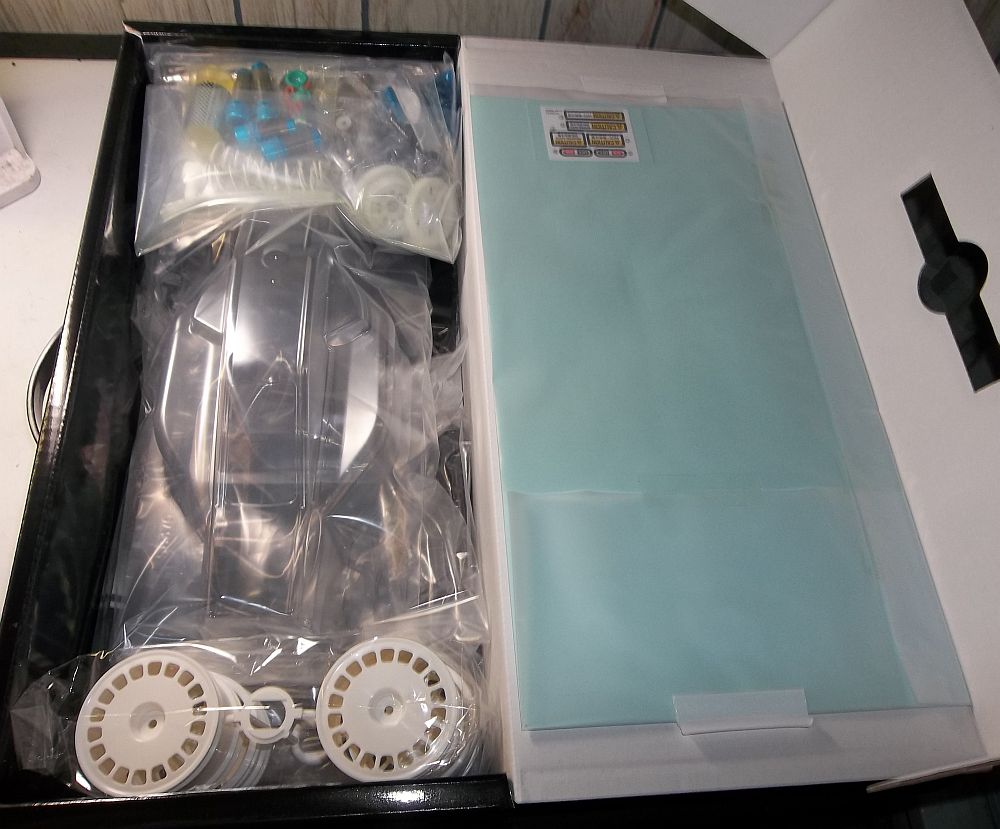

Nicely packed don’t ya think?

dfo3 1st build 014

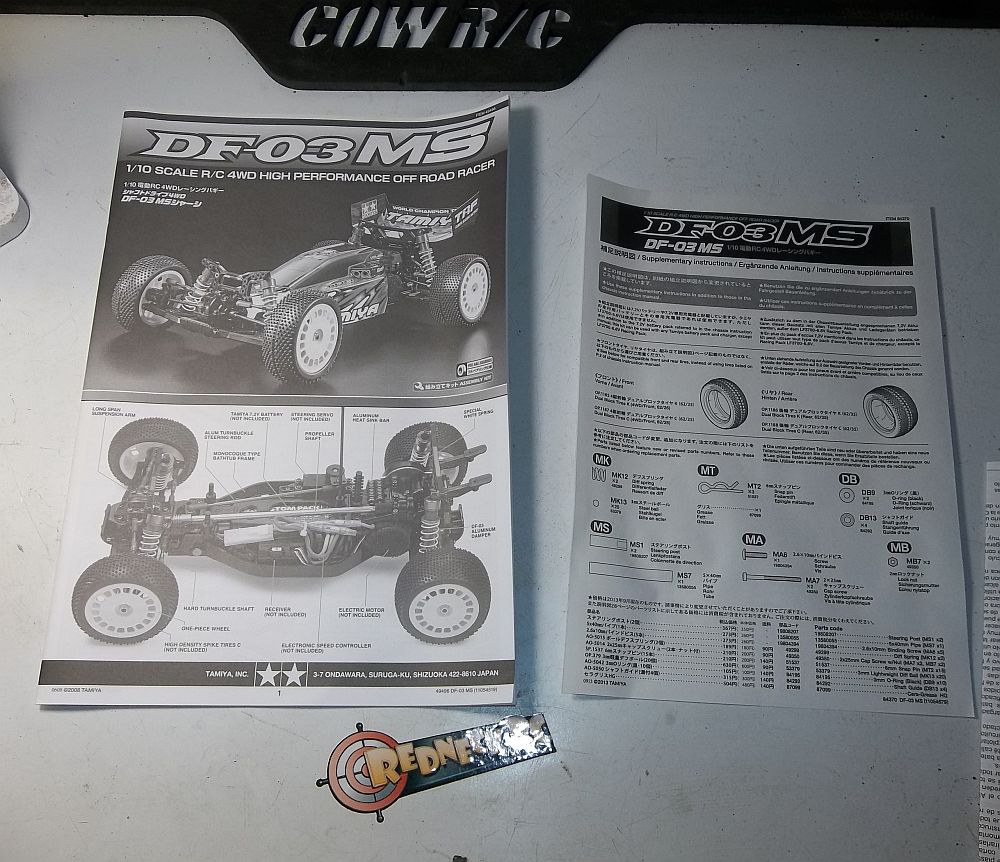

Another thing Tamiya is known for is their instructions. Easy to understand and well detailed.

dfo3 1st build 016

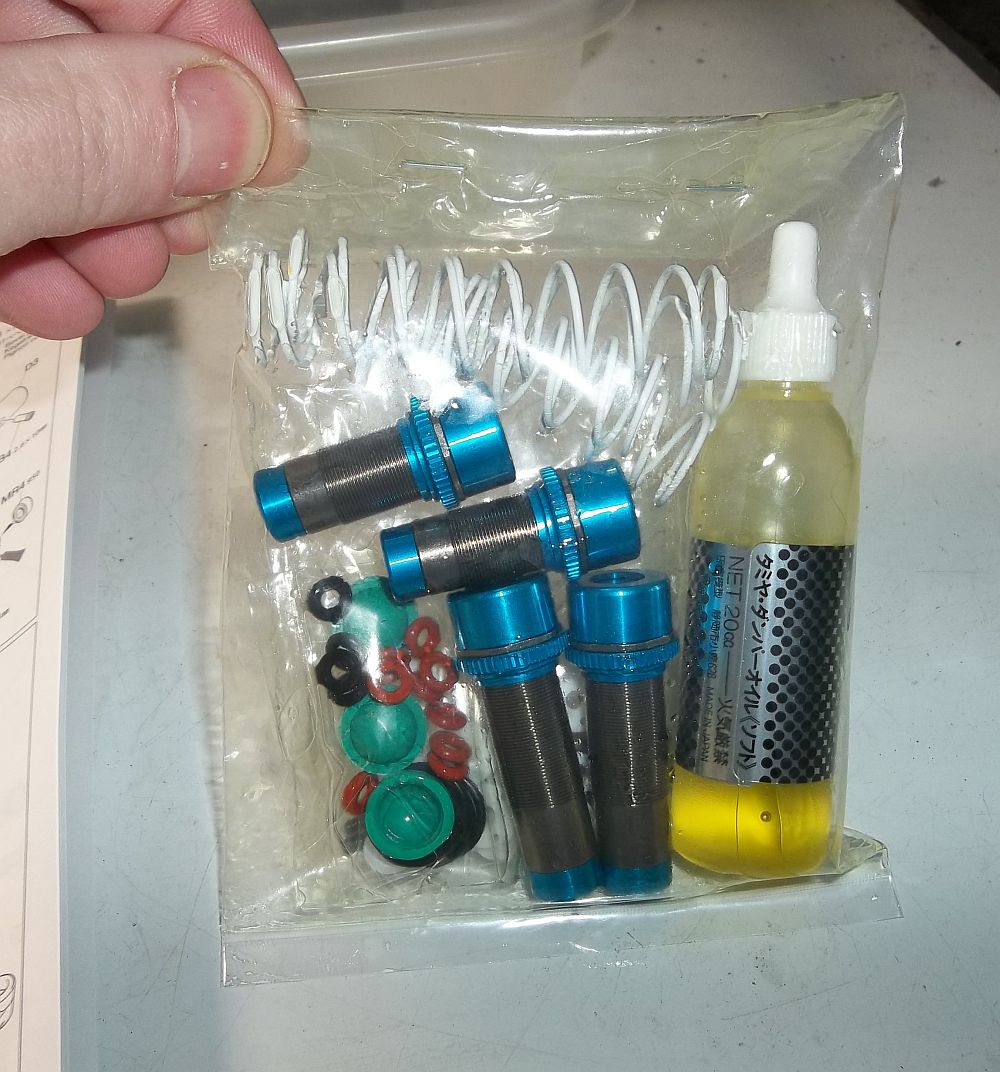

After going through the parts in the box there was one thing I noticed that I wasn’t happy with… The oil for the shocks leaked in the parts bag it was in. I have built many of Tamiya kits and this is the 1st time I have seen anything like this so I do not hold them responsible. It was just one of those things.

dfo3 1st build 018

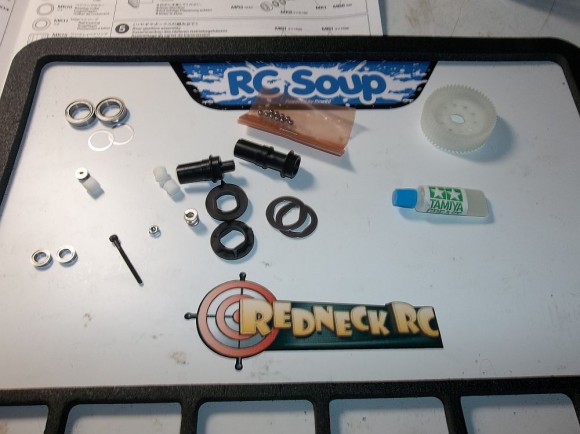

First up to assemble is the rear diff. Here you can see the parts needed for this step.

dfo3 1st build 020

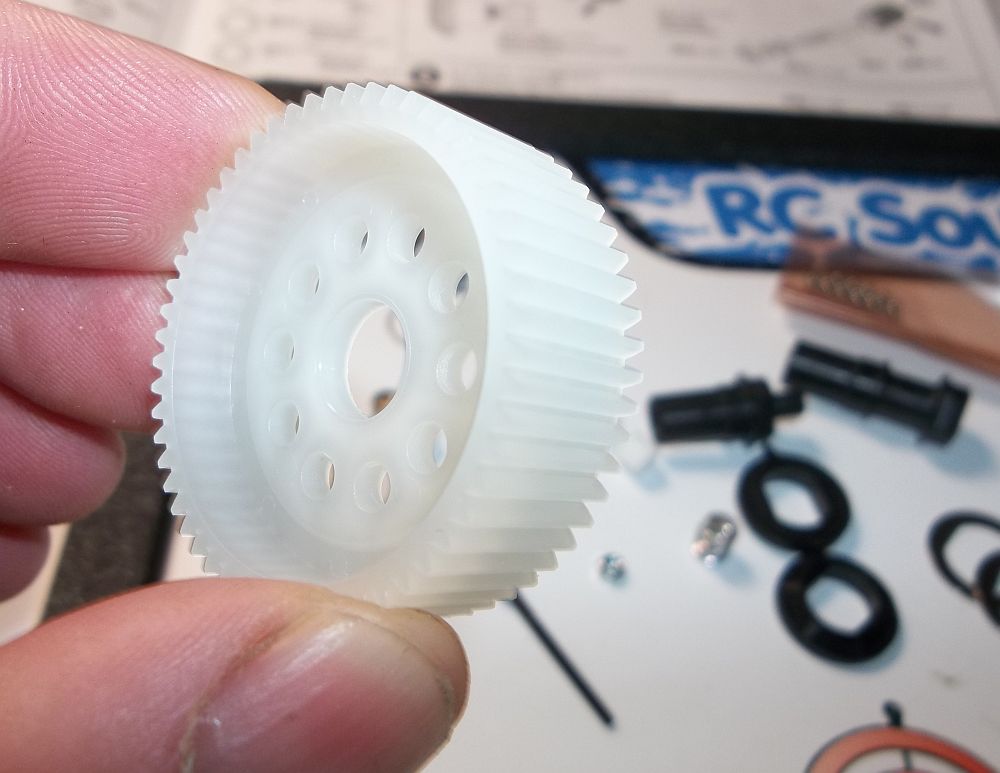

I am not used to seeing this type of plastic in Tamiya kits. I am not sure what type of plastic it is but I sure hope it holds up.

dfo3 1st build 021

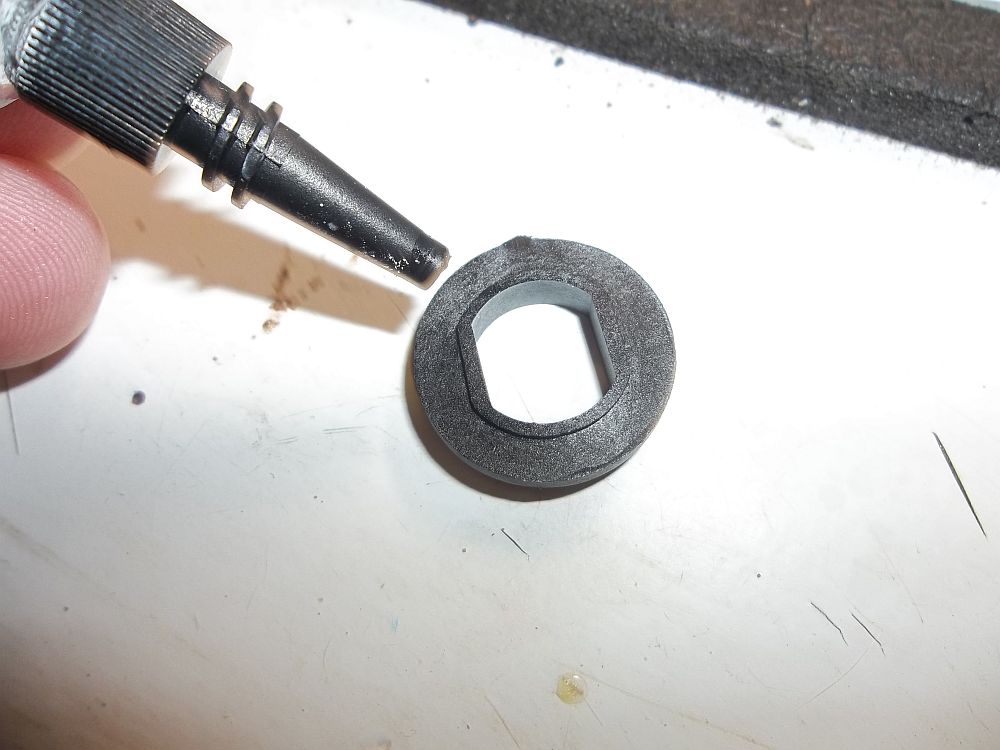

The diff uses plastic seating washers for the diff rings. Take some CA and glue the diff rings to them.

dfo3 1st build 023

A dab will do ya.

dfo3 1st build 024

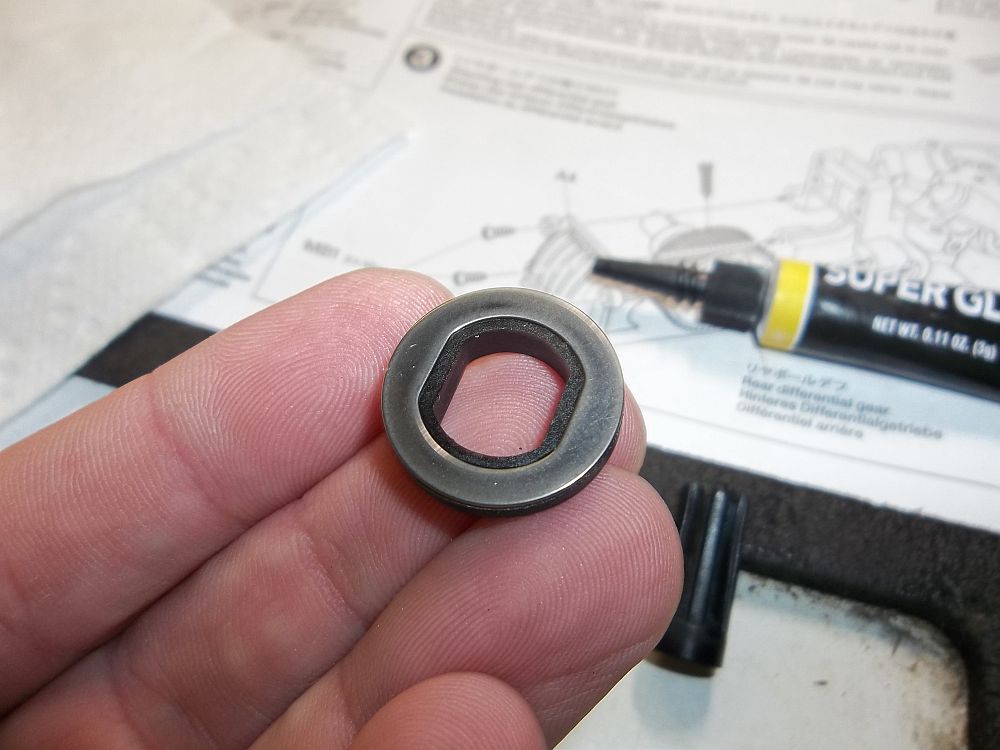

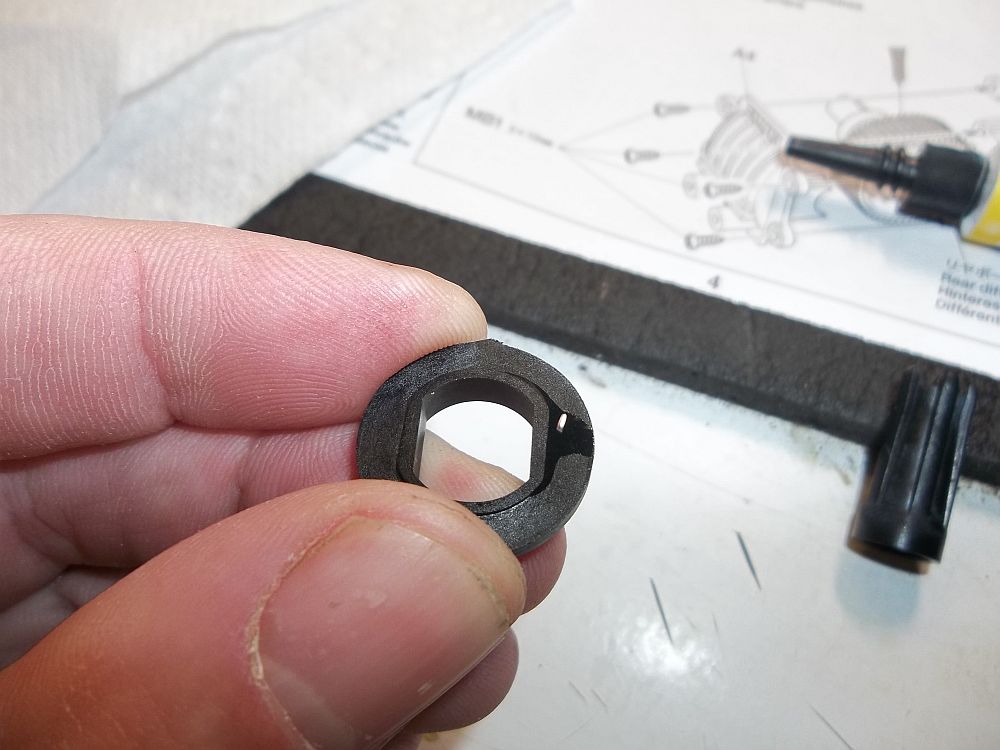

Diff ring installed. A good tip, clean the rings with denatured alcohol for better contact.

dfo3 1st build 027

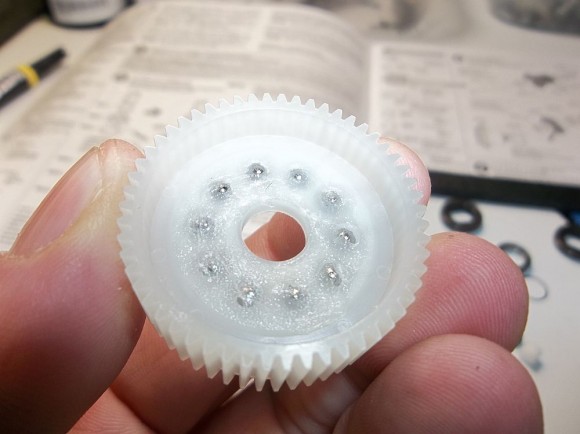

Now we lube up the diff gear with the included ball diff grease and install the balls.

dfo3 1st build 028

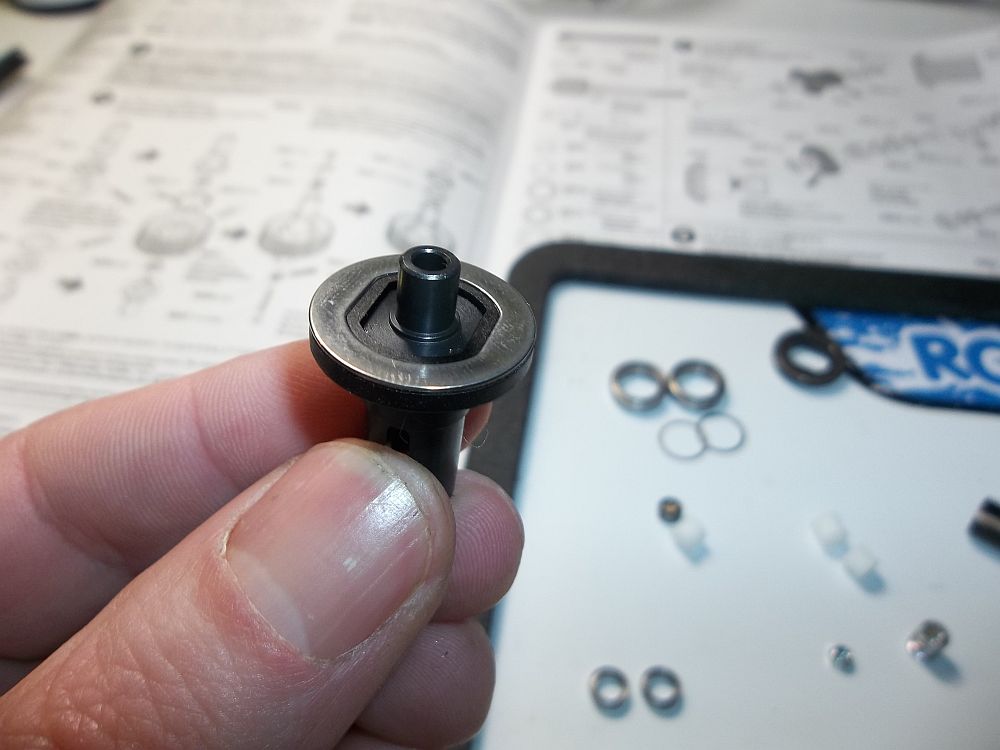

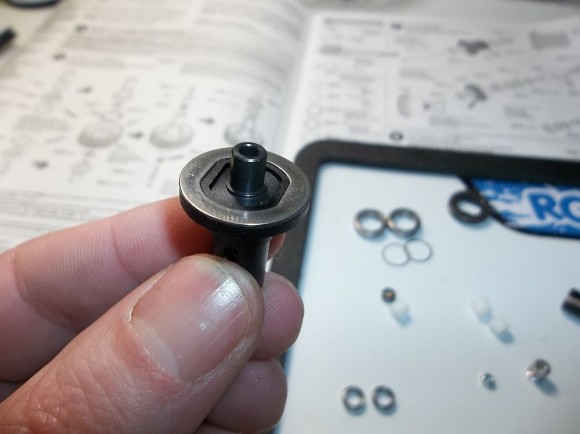

Place the diff ring/diff washer assembly onto the diff outdrive.

dfo3 1st build 029

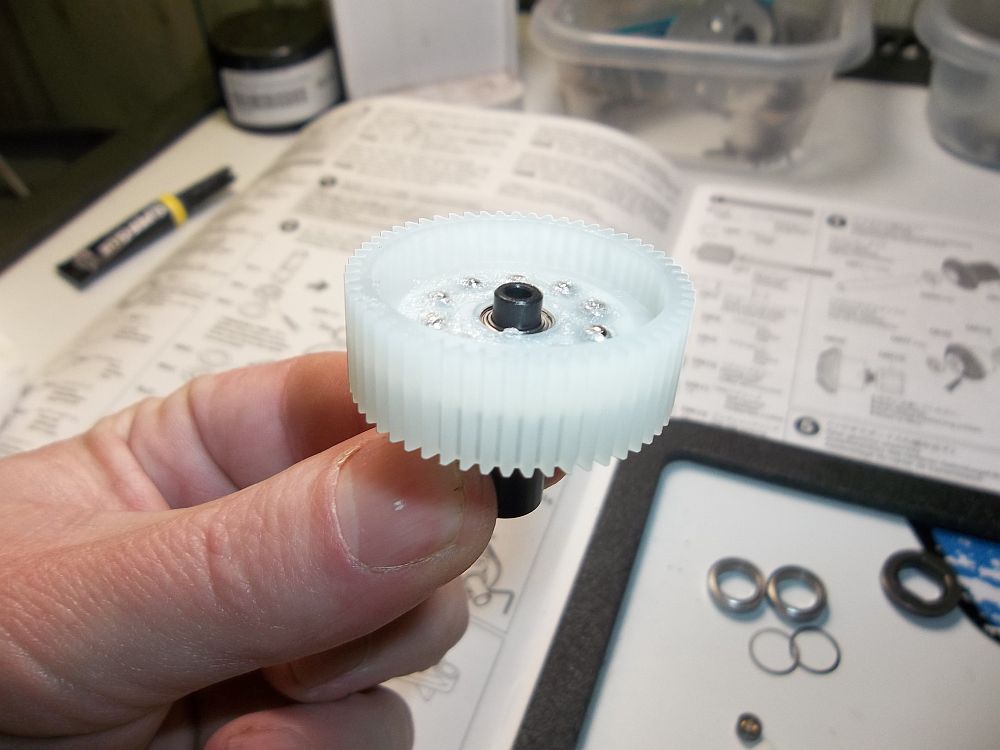

Then take the diff gear and balls and place them onto diff outdrive. Also place the small bearing in the center of the diff gear as instructed in the manual.

dfo3 1st build 032

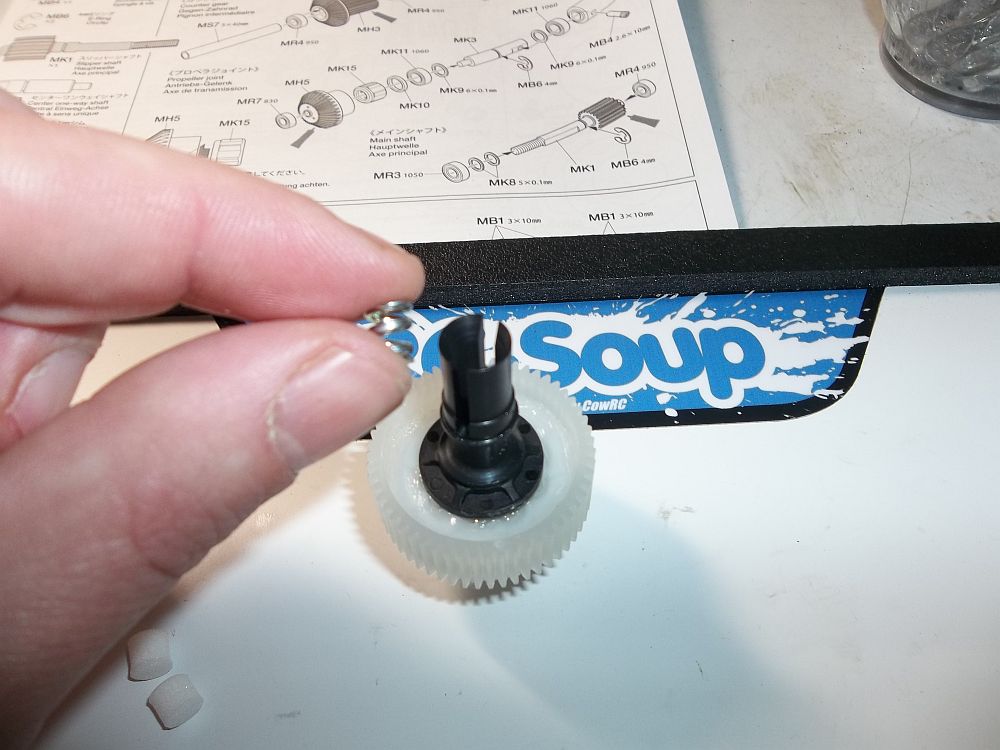

Now slide the other outdrive onto the opposite side of the diff assembly. Then take the diff spring (shown between my fingers) and a pair of needle nose pliers (not shown) and give the spring a nice squeeze. This will set the spring. Now drop it into the outdrive side that is shown in the manual.

dfo3 1st build 033

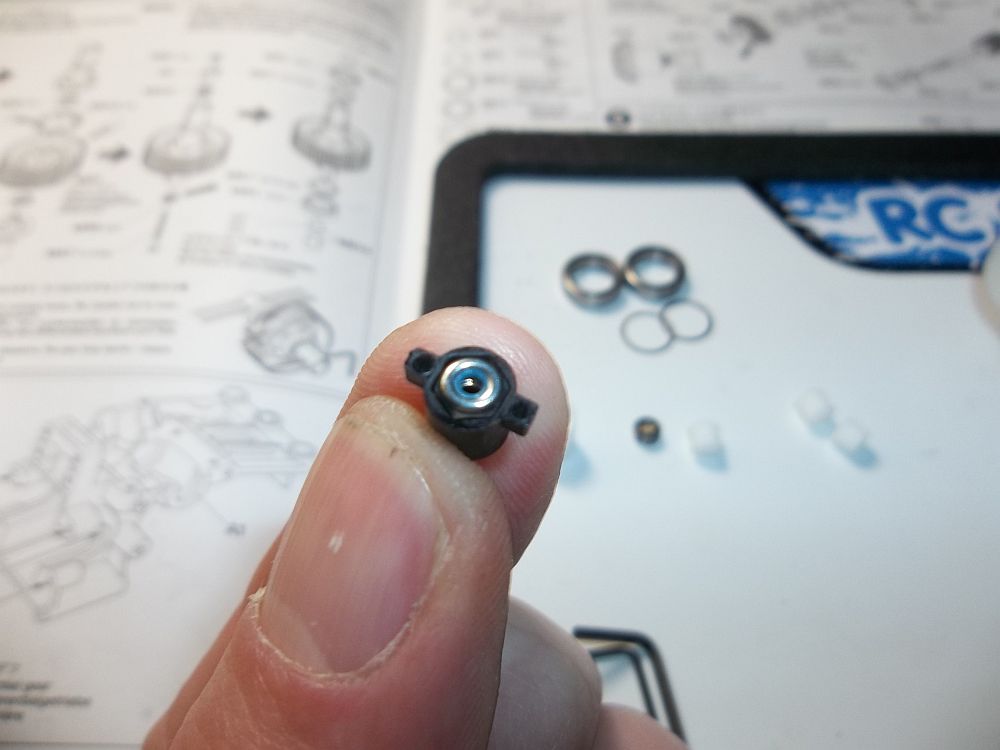

Here is the T nut. This goes in after the spring washer.

dfo3 1st build 034

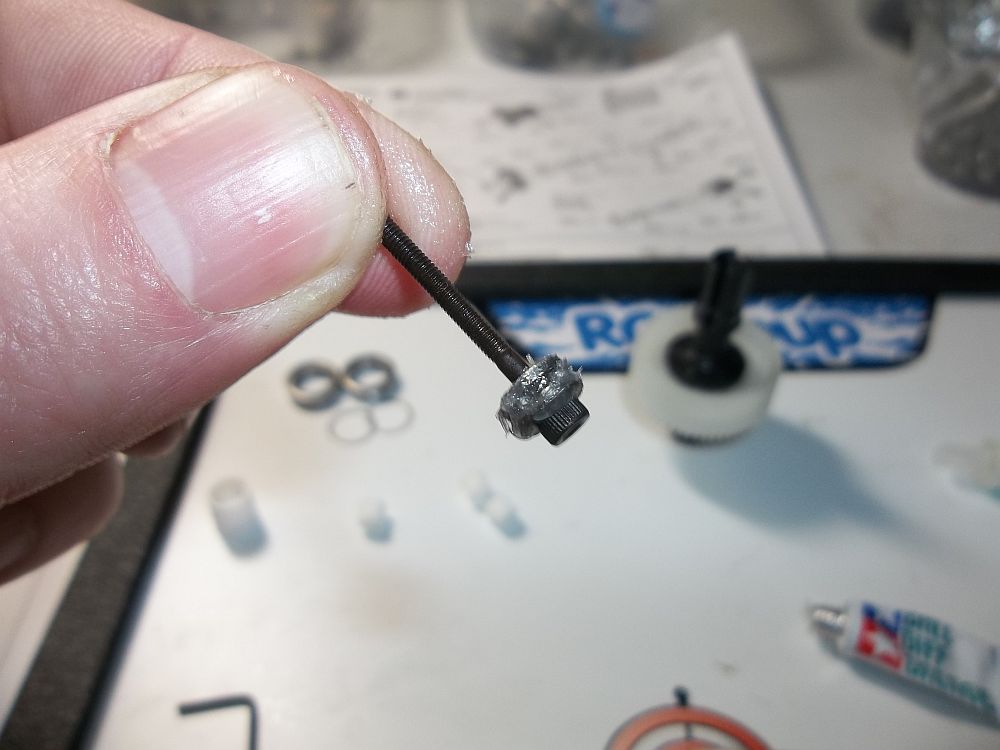

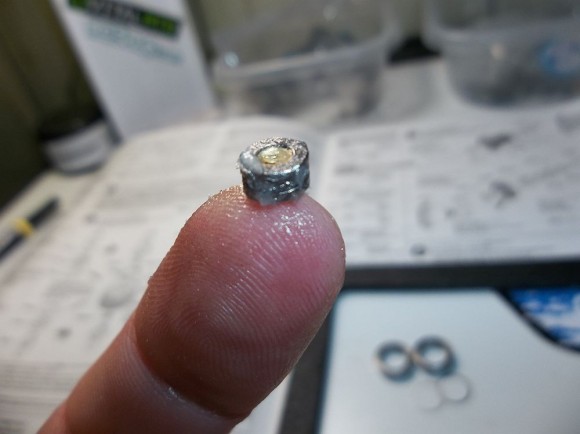

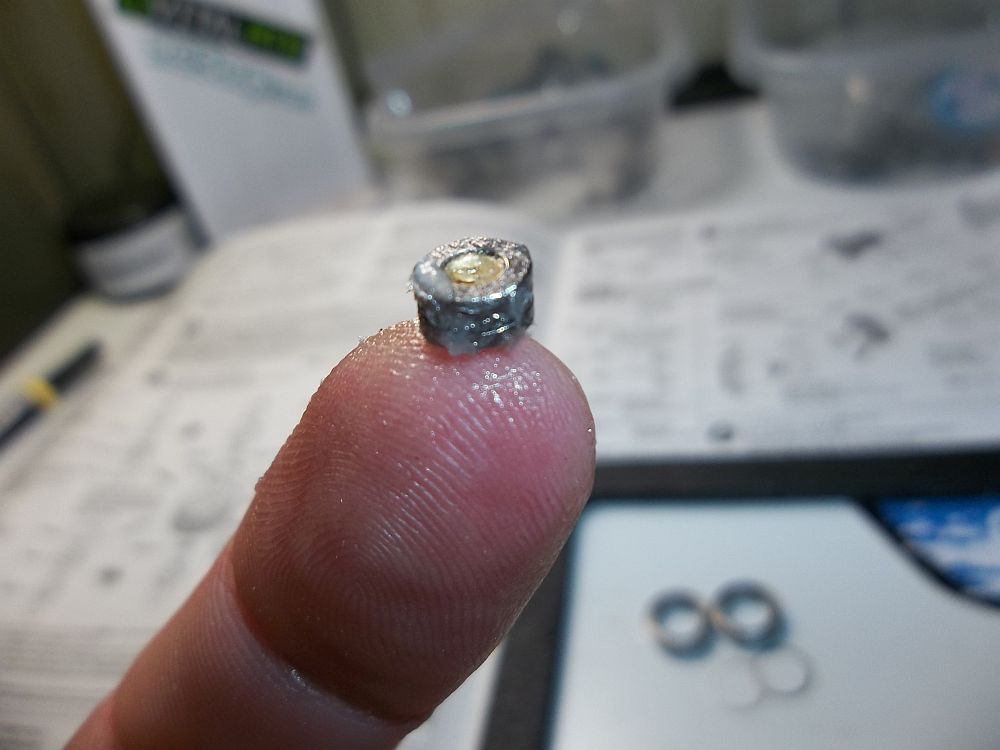

This gooey little piece is a lubed up thrust washer. As you can see here I gave her lots of grease.

dfo3 1st build 035

Place the thrust washer over the diff bolt. Then slide it into the correct side noted in the instructions and tighten all the way down and back it off till the diff does not slip. Pay attention to this step in the instructions.

dfo3 1st build 036

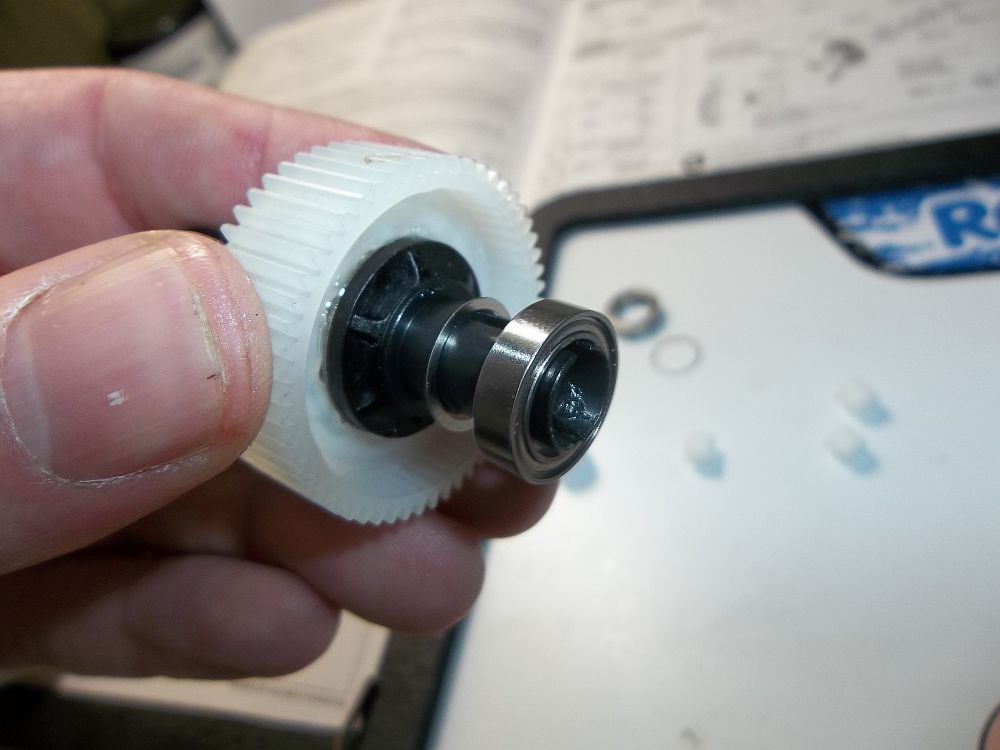

Place a diff shim and then a bearing on both sides of the assembled diff.

dfo3 1st build 038

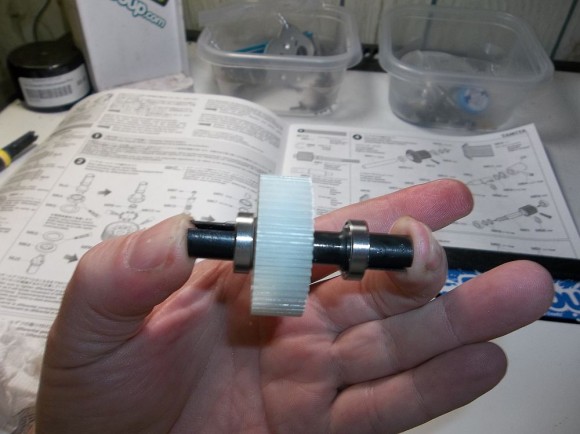

The finished rear diff.
