Pro-Line Racing Pro-2 2wd Short Course Truck Build-up

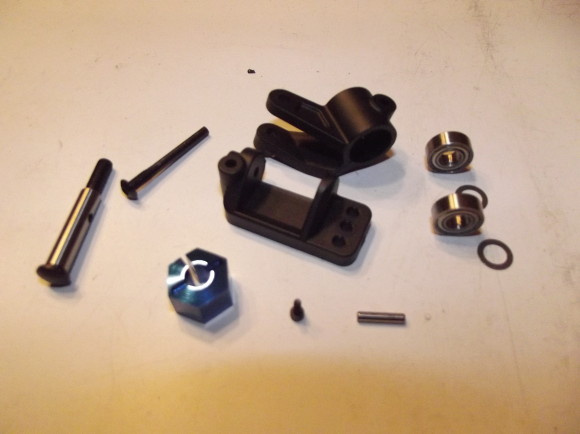

The C Hubs and steering knuckles are next. The kit includes a full complement of metal ball bearings.DSCF3058

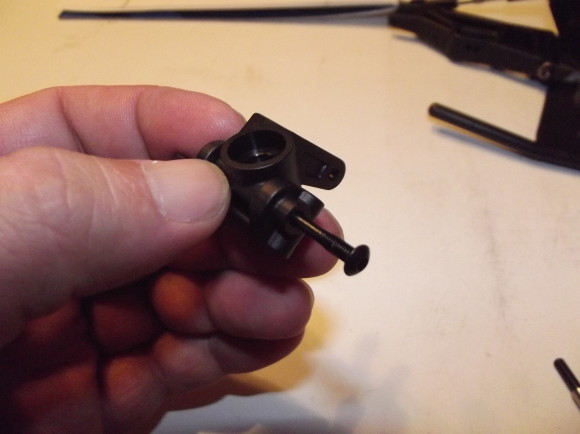

DSCF3060

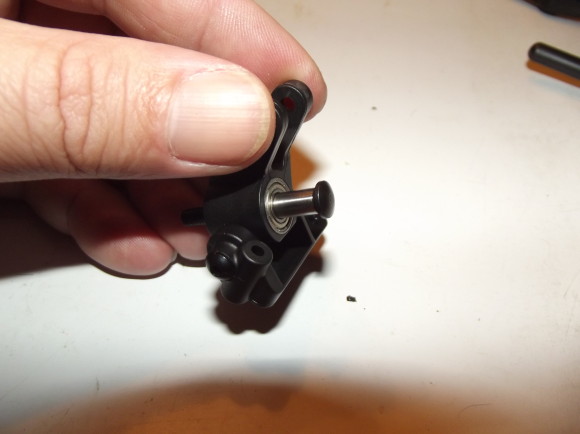

The front axles ride in the bearings.DSCF3061

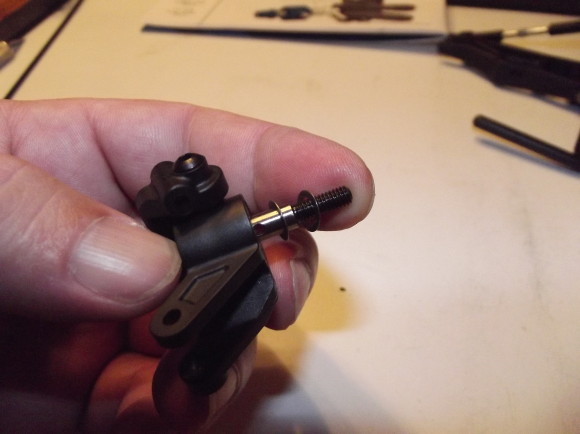

It gets 2 shims.DSCF3063

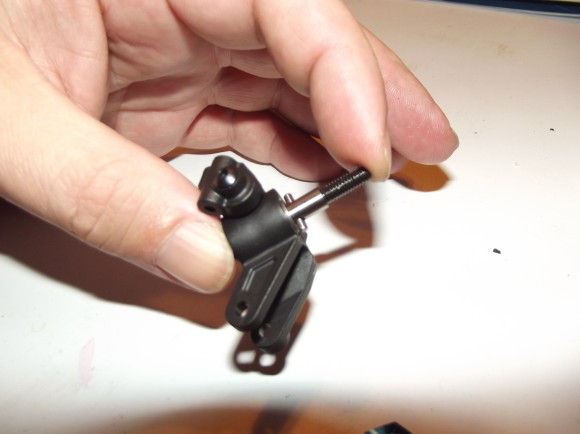

before inserting the drive pinDSCF3064

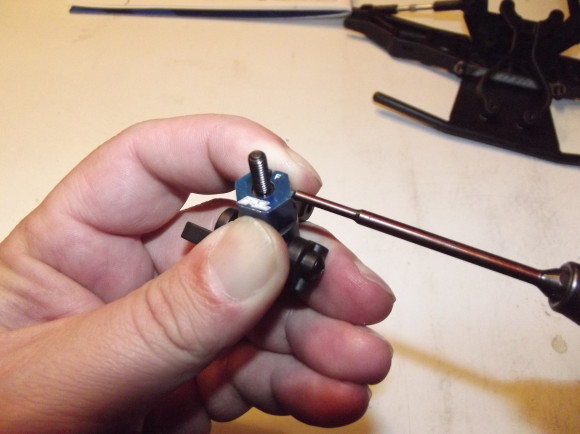

on which the 12mm hex will get mounted.DSCF3066

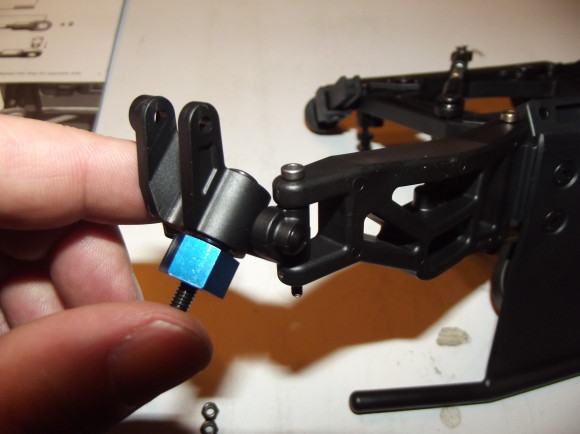

Now we can mount the steering knuckle assembly to the front A arm with another captured hinge pin.DSCF3067

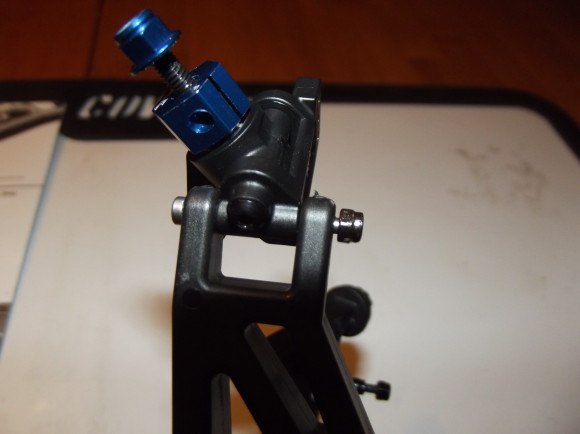

One done. The included wheel nuts have a rubber seal and are serrated which will help keep them from backing off.DSCF3069

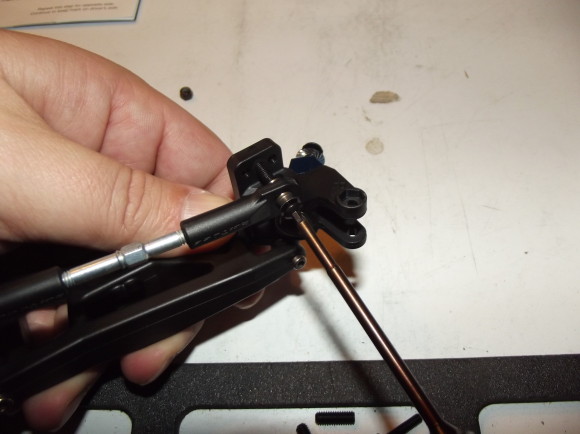

The upper camber link finishes off the C Hub installation for this side.DSCF3070

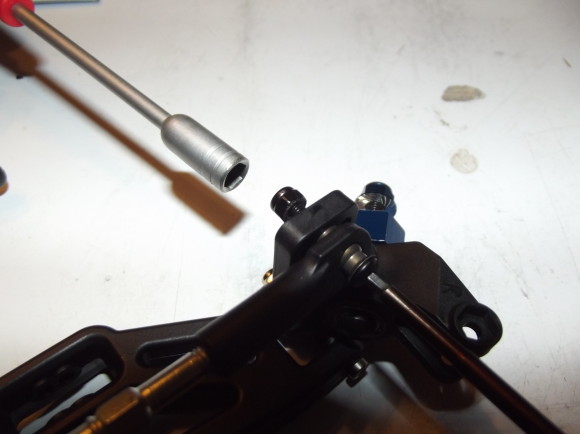

DSCF3071

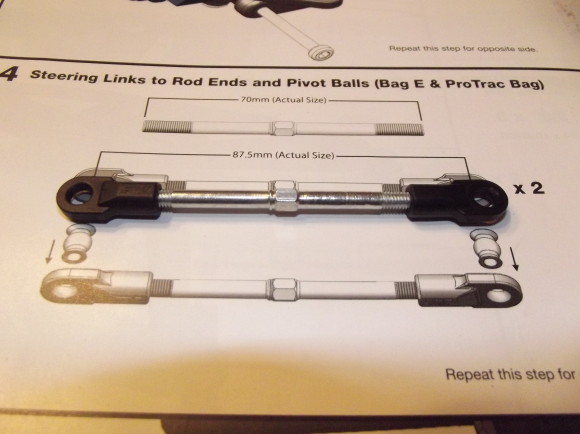

If you are building your truck to the stock setup, the steering links get built to 87.5mm from center to center of the eyelets. DSCF3072

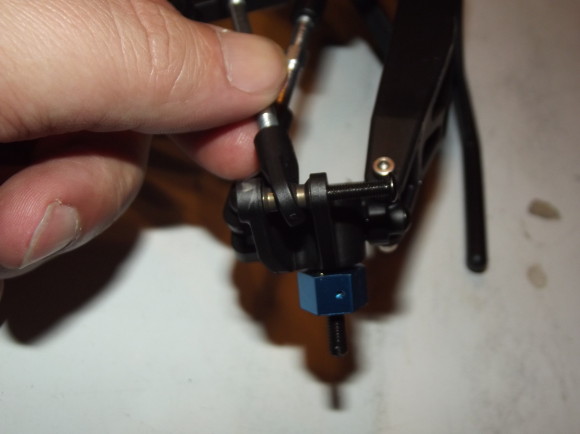

Attach them to the steering knuckles.DSCF3073

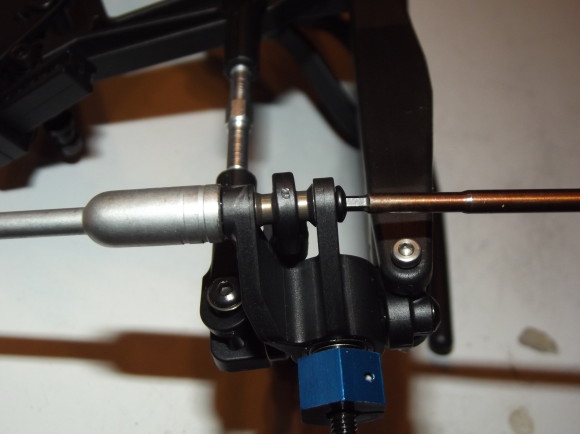

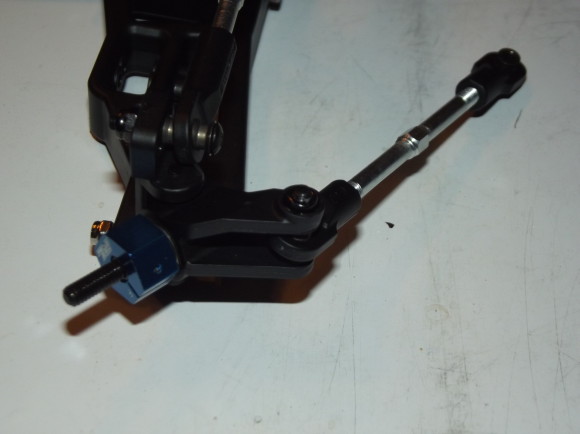

Another instance of using a captured screw. Using the captured screws and hinge pins will certainly do wonders for durability on this truck. DSCF3074

DSCF3075
