Pro-Line Racing Pro-2 2wd Short Course Truck Build-up

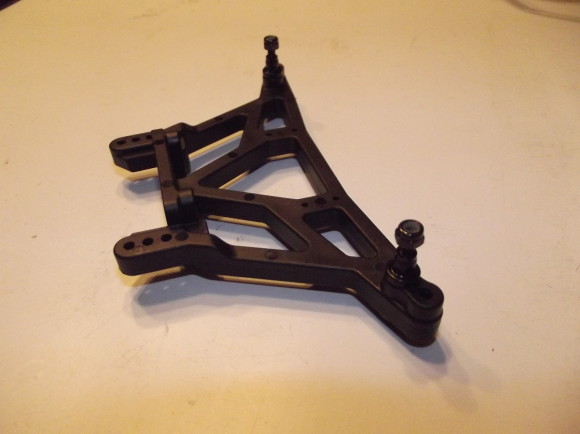

Time for the rear. Once again we put the upper shock mounts in these holes based on using the box stock setup.DSCF3092

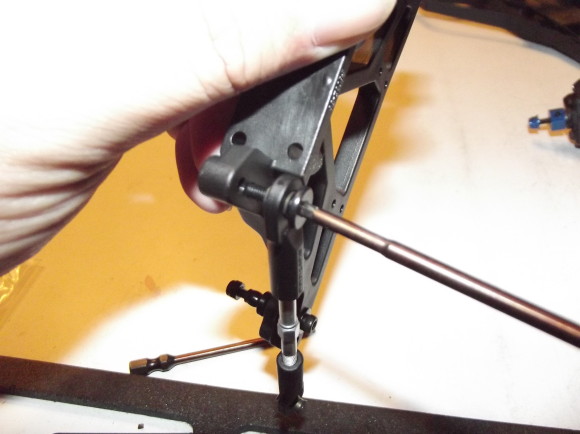

Rear camber links which we built earlier. I built all of the camber links at the same time, made it easier.DSCF3093

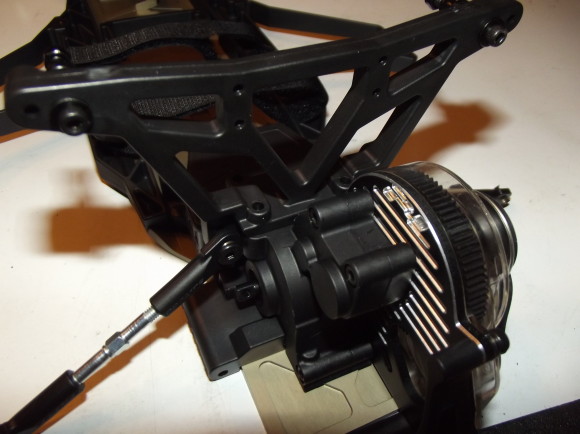

Now the rear shocktower gets mounted to the transmission housing. Pro-Line threw their high performance transmission on this truck. It features metal internal gears, and a gear differential. Our differential was devoid of oil, and I opted to fill it with 5k diff fluid as per the stock setup. The transmission comes preassembled and mounted to the chassis, so if you opt to add diff fluid you’ll need to pull it apart.DSCF3094

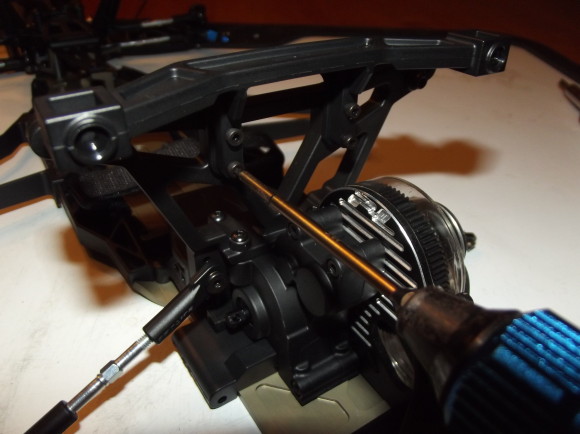

The rear body mounts are much like the front, except in the rear the mounts get swept back to better align with the body.DSCF3096

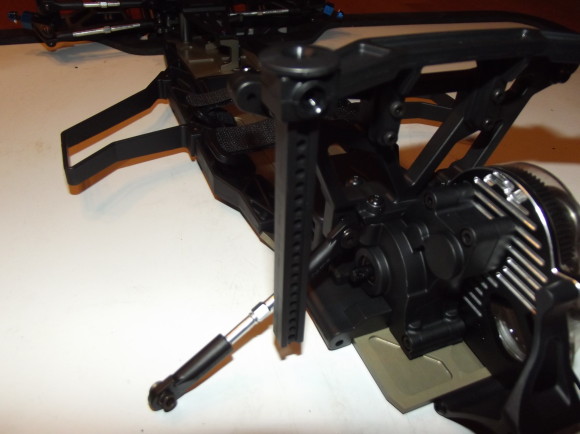

The rear posts are very long. You’ll need to trim them once you determine how long to set them for your body. If you go with the FloTek, you’ll need them pretty short. Most of this post will get cut off.DSCF3097

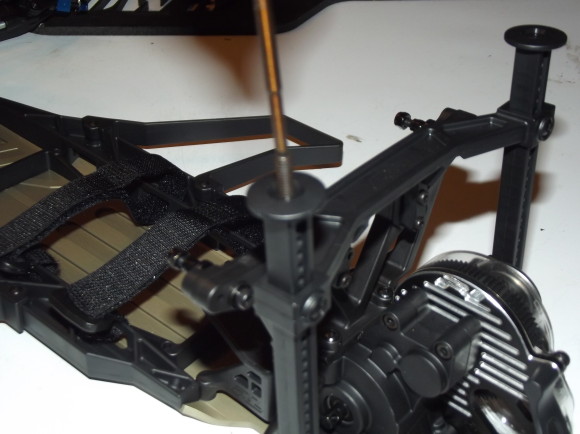

DSCF3101

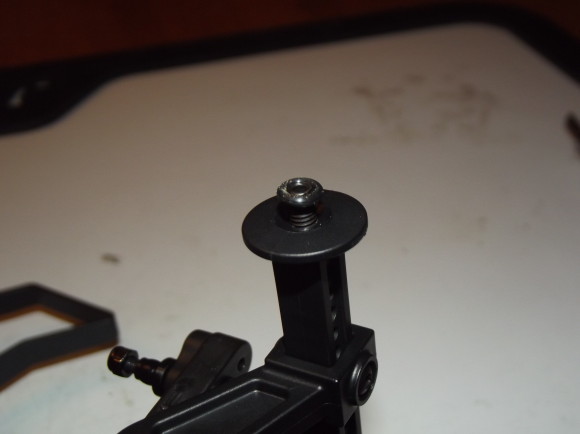

This little post is all that will stick through the body. It gets a small o-ring which provides a squishy backing for the thumb nut to tighten on to.DSCF3102

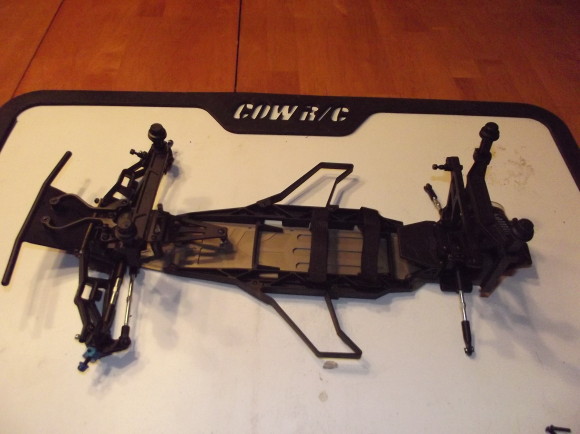

Here’s where we are at to this point. For your reference, I got to this point in a little over an hour and a half. And this was with taking pictures every step of the way.DSCF3104
