Caster Racing EX1.5R Buggy – Build

April 23rd, 2012 Matt

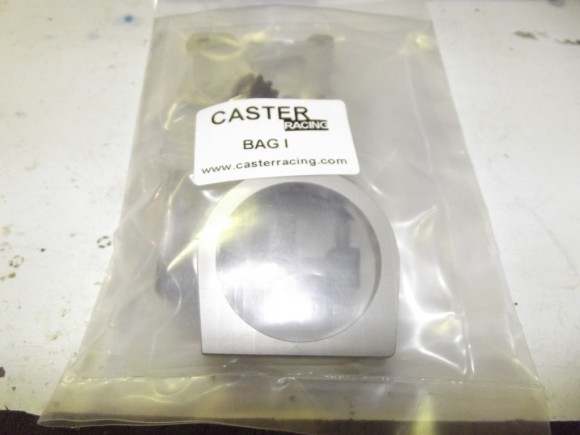

In Bag I, we will assemble the center differential mount

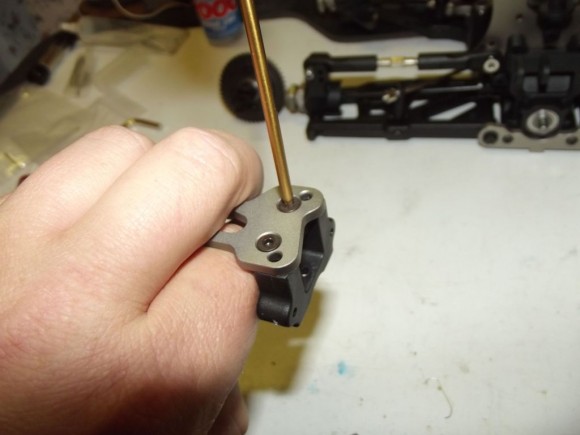

First we’ll mount the Center Diff support plate to the top mount

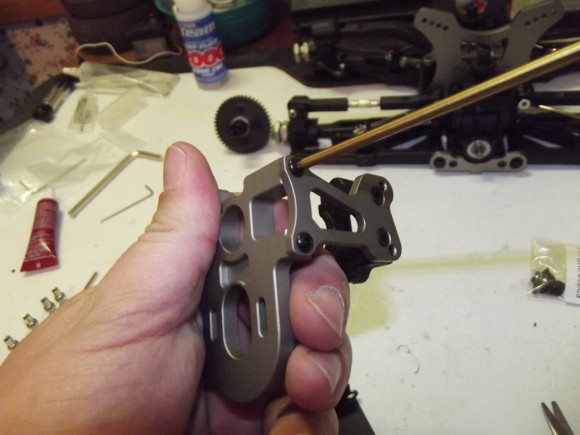

Now we can attach the motor mount to the support plate

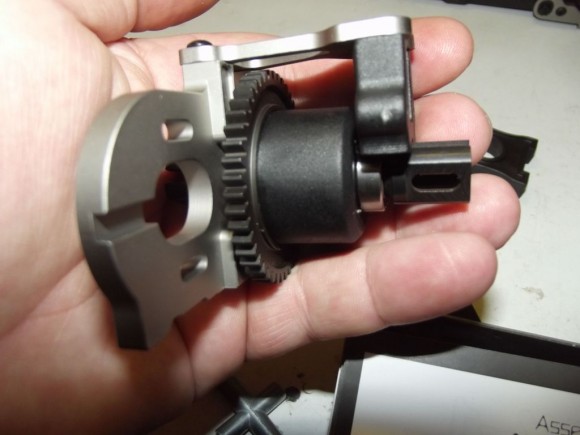

We slide the center diff in through the motor plate

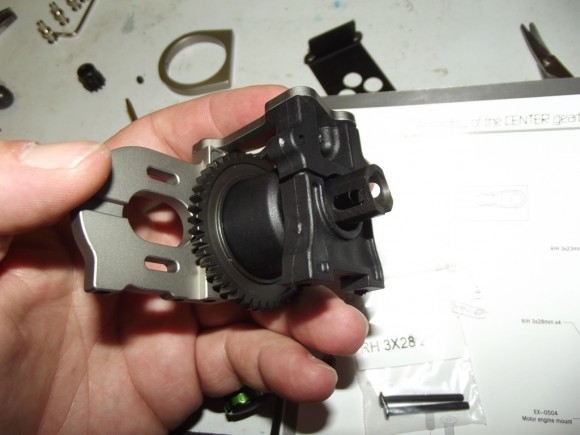

Now we can put in the lower mount for the center diff. This will mount to the chassis

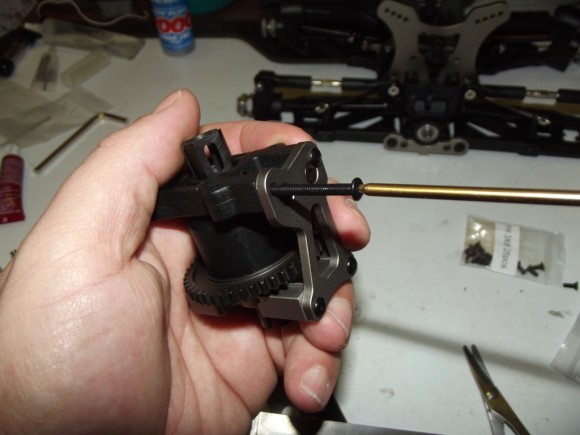

This long screw goes through the center diff support plate, all the way into the lower diff mount

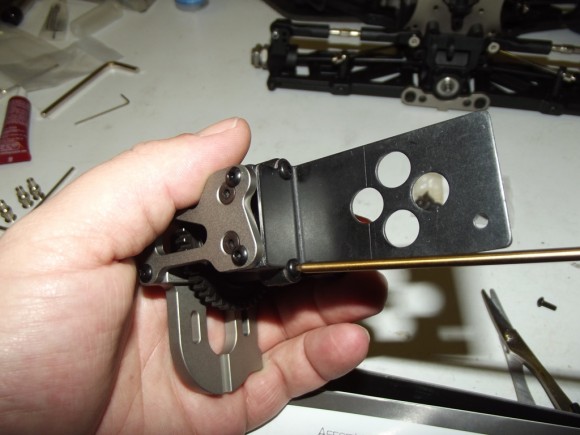

This plate will serve as our ESC mount
