Caster Racing EX1.5R Buggy – Build

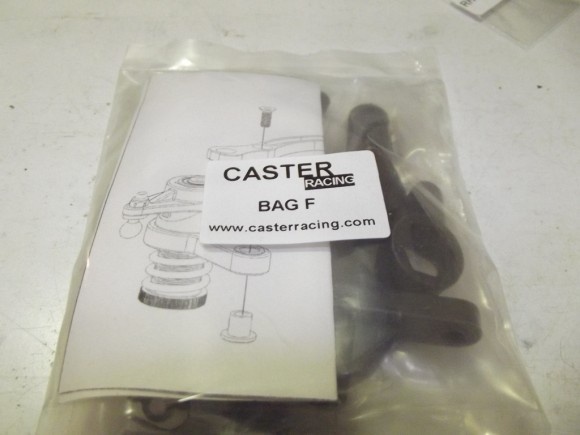

In Bag F, We’ll start assembling the steering

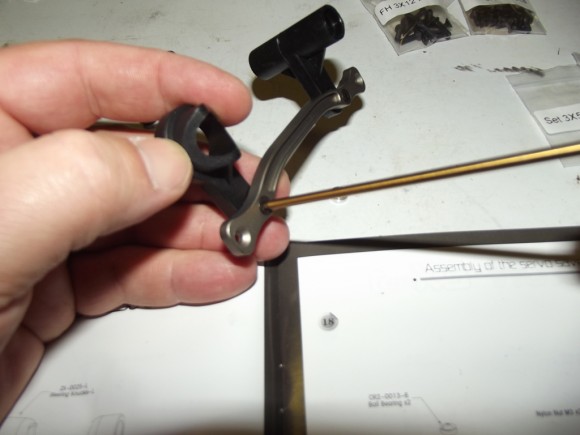

First up we’ll mount the steering plate to the servo saver arms

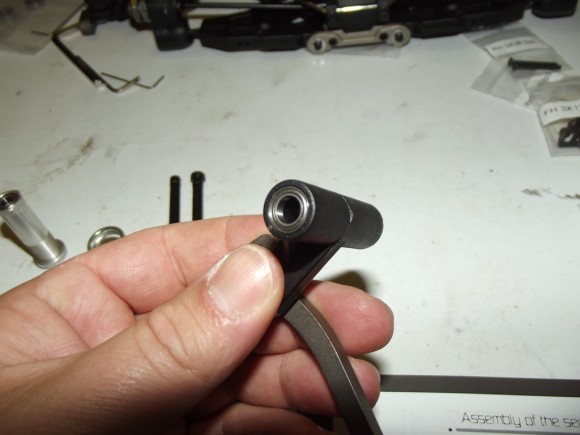

We’ll need 4 FastEddy bearings for the tops and bottoms of the servo saver arms

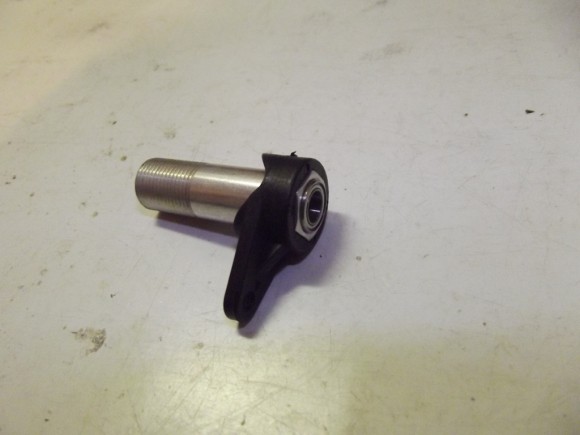

The servo saver on the EX1.5R is adjustable. You can make it as tight or as loose as you want. The servo saver pie is threaded, so you can tighten the spring or loosen it as needed.

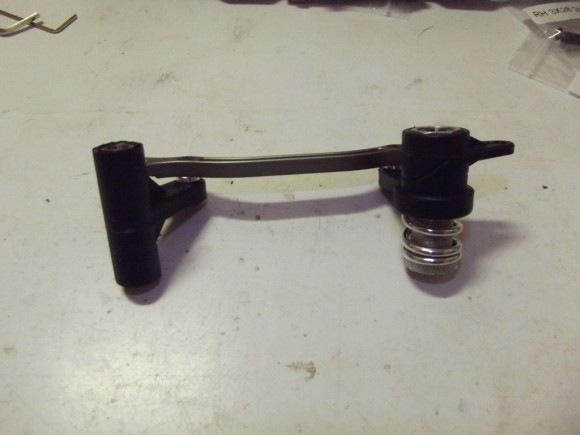

The completed servo saver assembly should look something like this

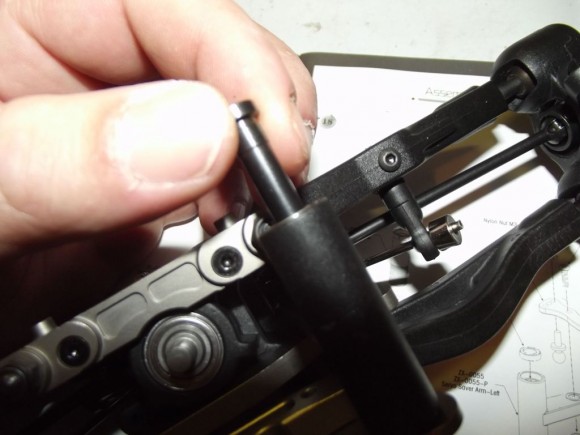

There are two shafts on which the entire assembly pivots. They slide up from the bottom

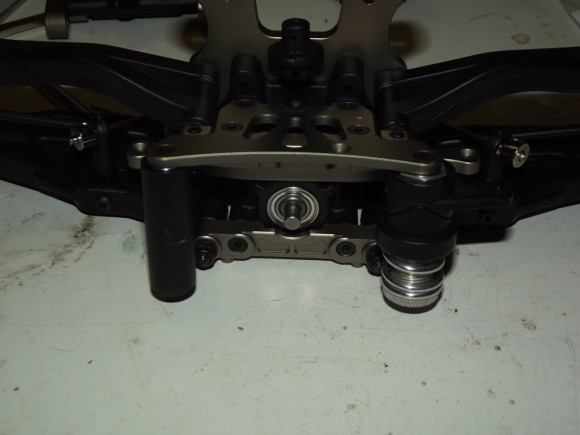

Time to mount the steering assembly to the front upper suspension plate

Pages: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
