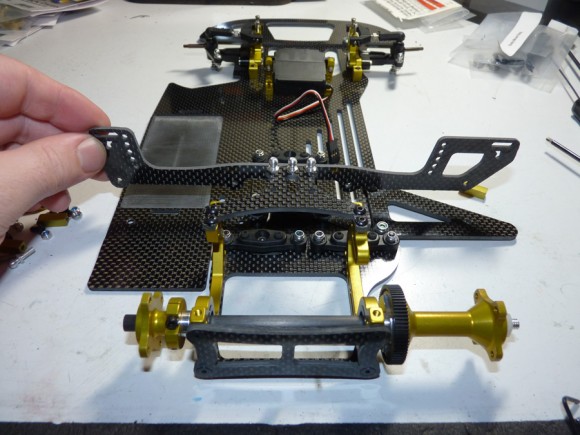

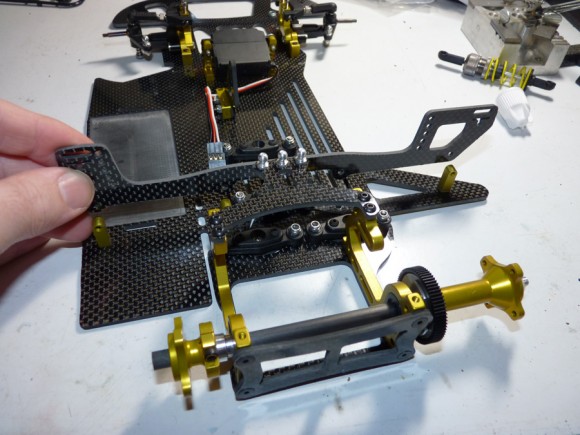

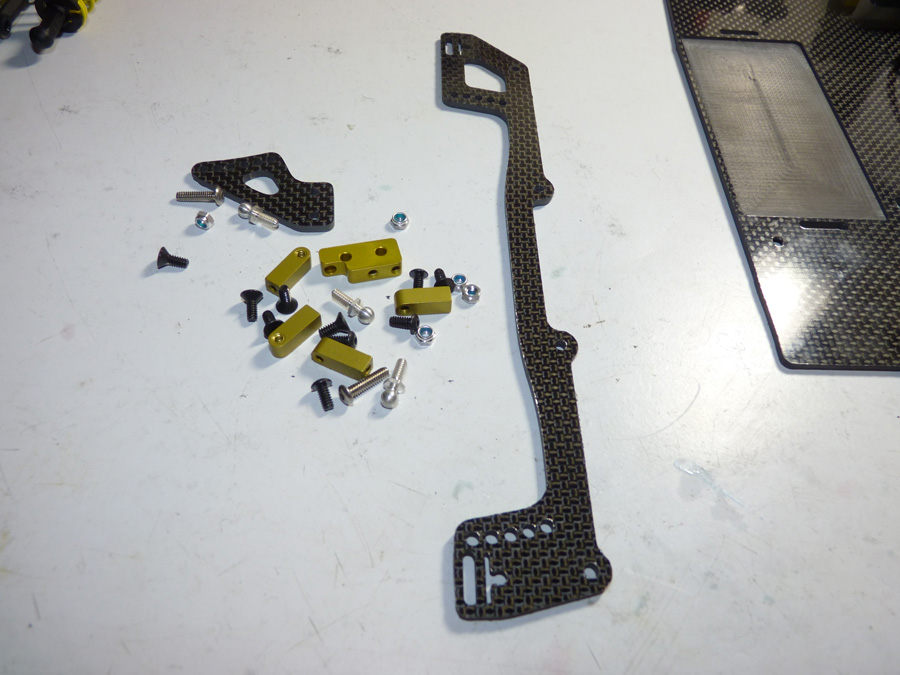

Now lets install the cross brace / side shock mount.

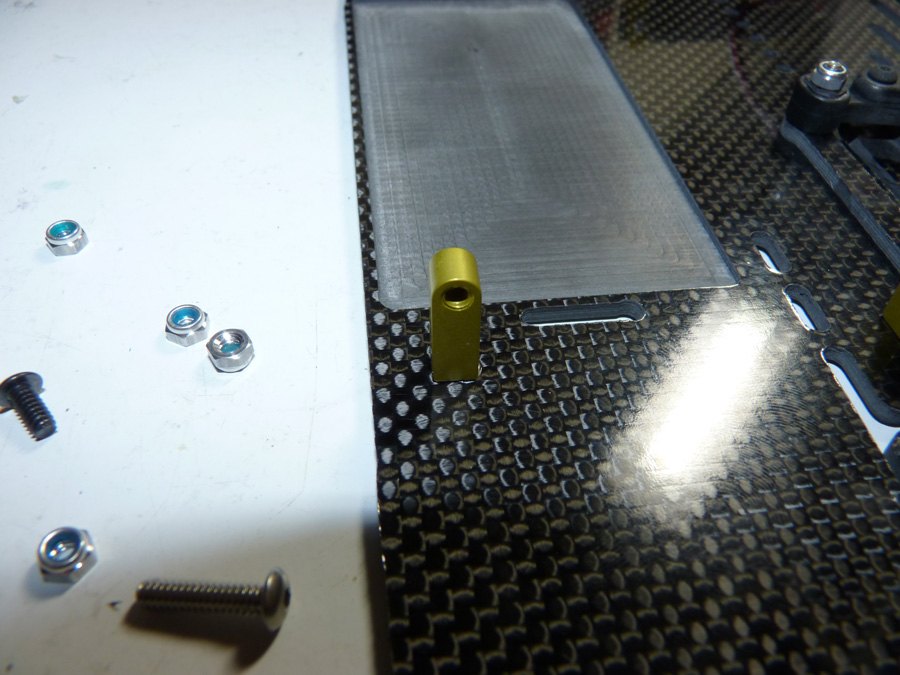

This mounts like this with stand offs from the bottom of the chassis. My suggestion.. attach the stand offs to the cross brace first. It will probably be easier than the way I did it, which was install the stand offs to the chassis first. It can be done either way, but the other way will allow much easier access to the screws that attach the cross brace to the stand offs.

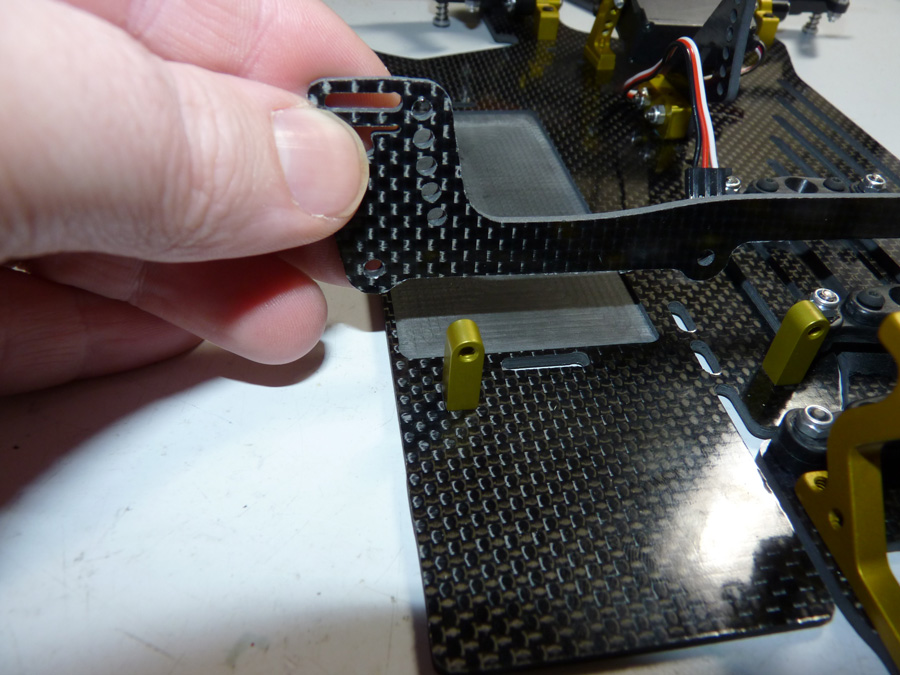

This is pretty straight forward. 4 holes.. 4 screws.. Just take note of which side of the cross brace goes on which side (side with opening on right).

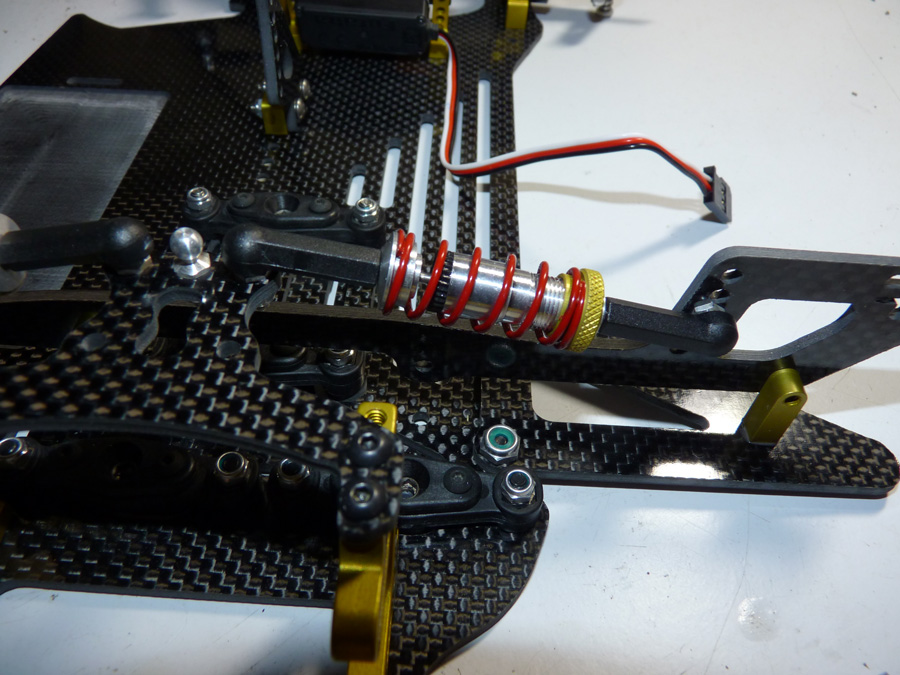

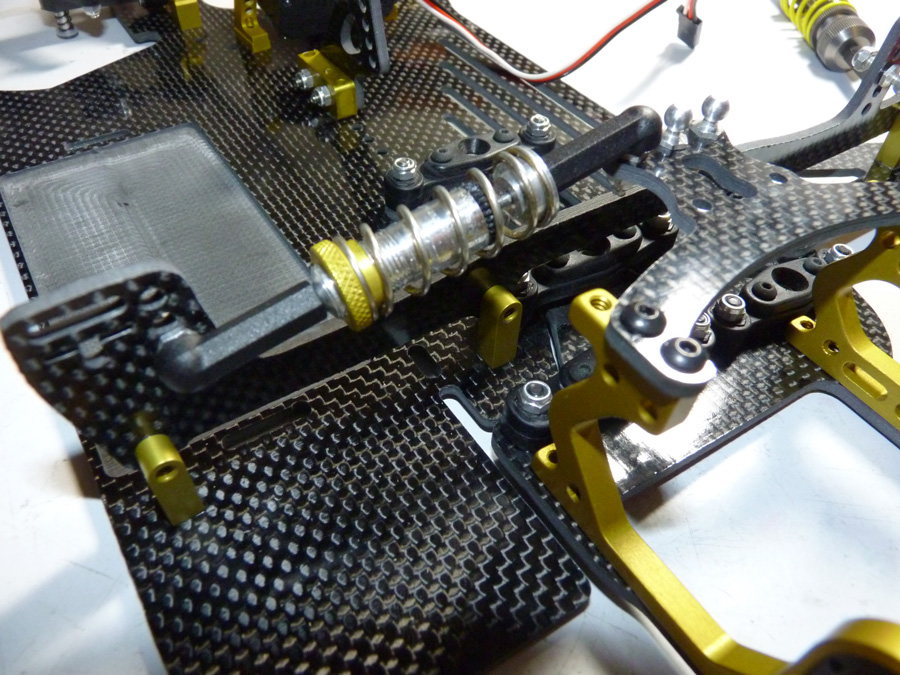

We then install the ball studs on the cross brace and mount up the side shocks.

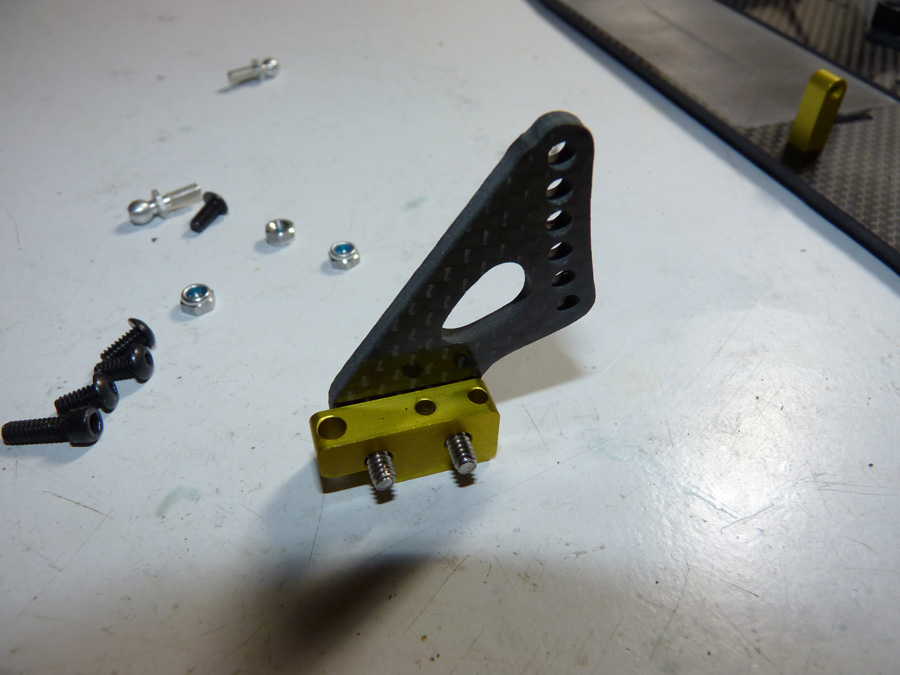

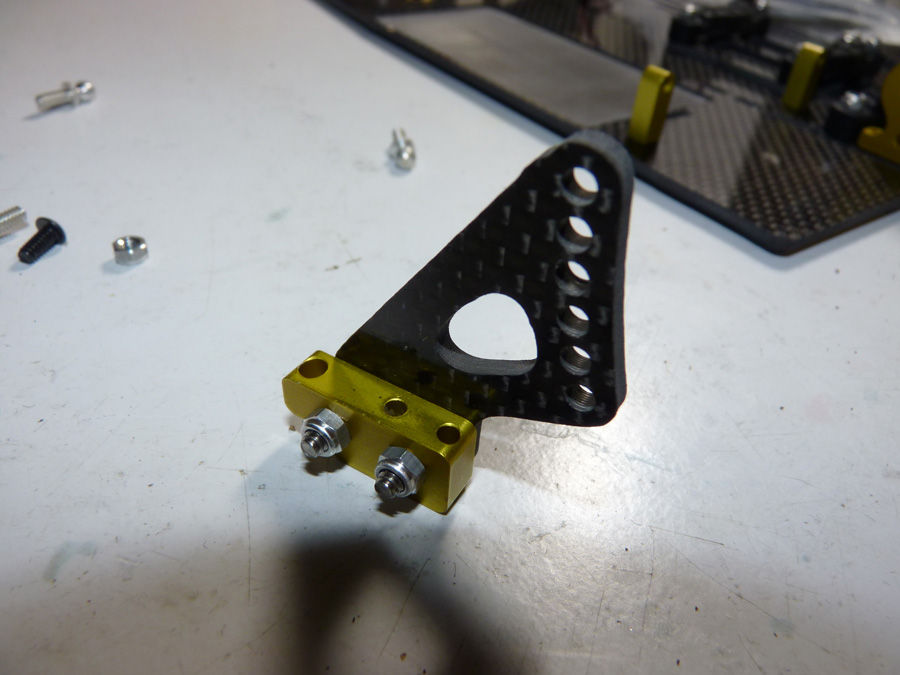

This is the center shock mount. It goes together like this.

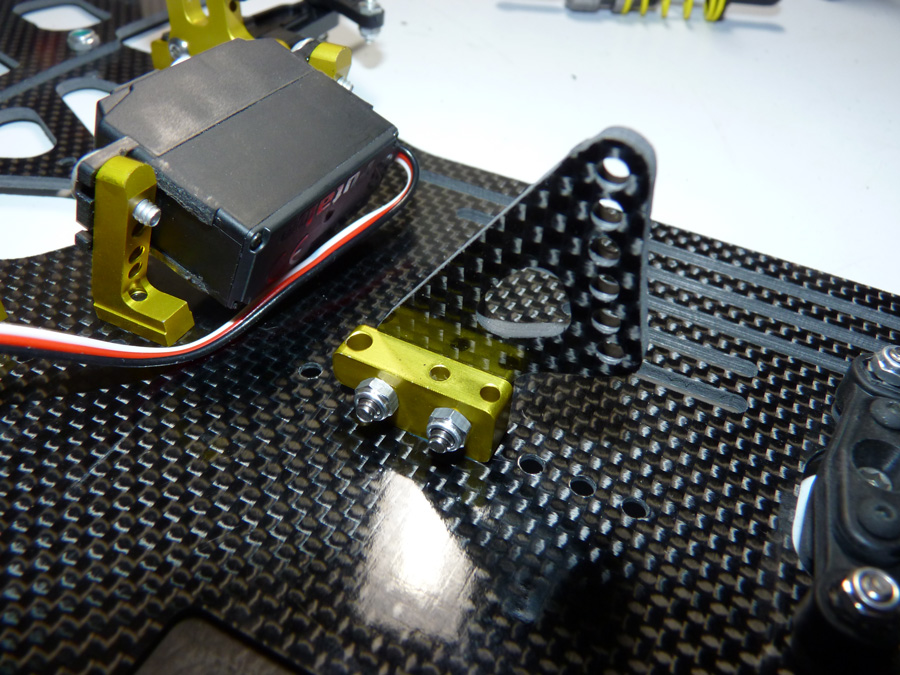

I mounted it as shown, with 3 holes behind it.

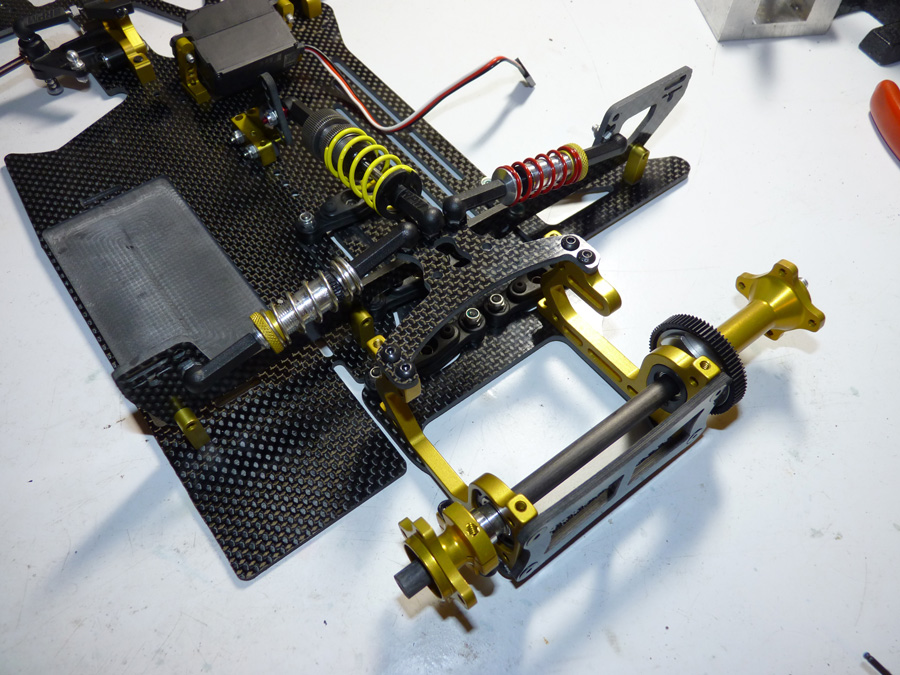

Next we pop on the center shock.
